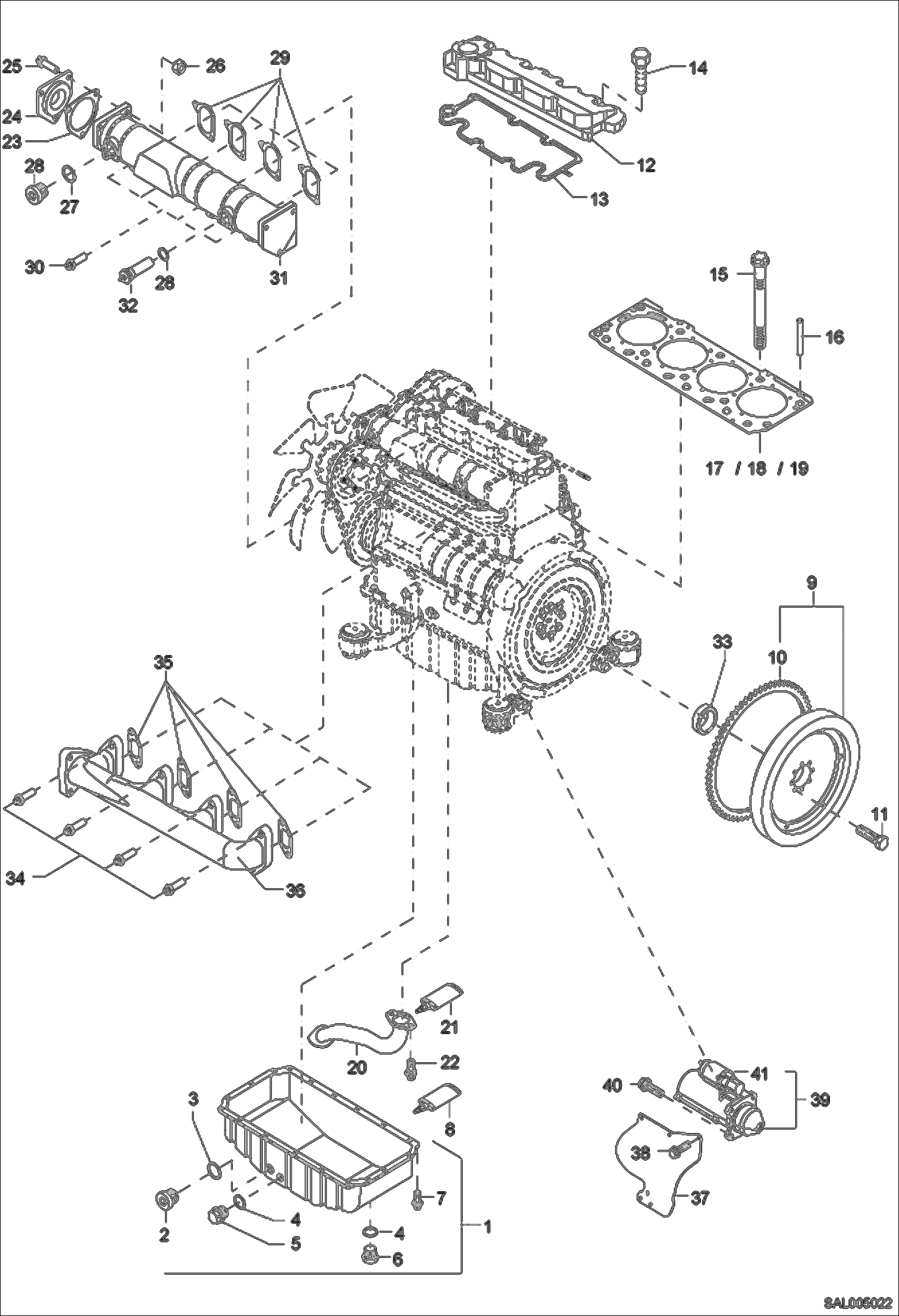

Запчасти Bobcat AL275 ENGINE PARTS Part 1 POWER UNIT

1

5411663058

OIL PAN

2

5411664026

PLUG

3

5411657049

SEAL RING

4

5411656336

SEAL

5

5411656430

PLUG

6

5411656431

BLANKING END

7

5411664027

BOLT

8

5411657857

PACKING COMPOUND

9

5411657086

FLYWHEEL

10

5411657087

GEAR

11

5411664028

BOLT

12

5411657059

CYL. HEADCOVER

13

5411656457

GASKER, HEAD CYL

14

5411657060

BOLT

15

5411664050

BOLT

16

5411664051

PIN ROLL

17

5411664344

GASKET,CYL. HEAD Was 5411657092 - A

18

5411664345

GASKET,CYL. HEAD Was 5411657092 - A

19

5411664346

GASKET,CYL. HEAD Was 5411657092 - A

20

5411664112

PIPE, OIL SUCTION

21

5411664113

BOLT

22

5411656992

PACKING COMPOUND

23

5411657825

O-RING

24

5411664171

FLANGE

25

5411664363

BOLT

26

5411657688

NUT

27

5411664172

PLUG

28

5411657049

SEAL RING

29

5411657824

SEAL

30

5411664173

BOLT

31

5411664174

PIPE,SUCTION

32

5411656283

GLOW PLUG

33

5411656287

ROT. SHAFT LIP SEAL

34

5411664283

PIPE,EXHAUST

35

5411656293

SEAL

36

5411664370

BOLT

37

5411657963

COOLING AIR BAFFLE

38

5411664286

BOLT

39

5411664007

STARTER

39

5411664851

STARTER

40

5411663172

BOLT

41

5411657136

RELAY
