CAMSHAFT AND IDLE GEAR SHAFT

Запчасти Bobcat AL350 CAMSHAFT AND IDLE GEAR SHAFT POWER UNIT

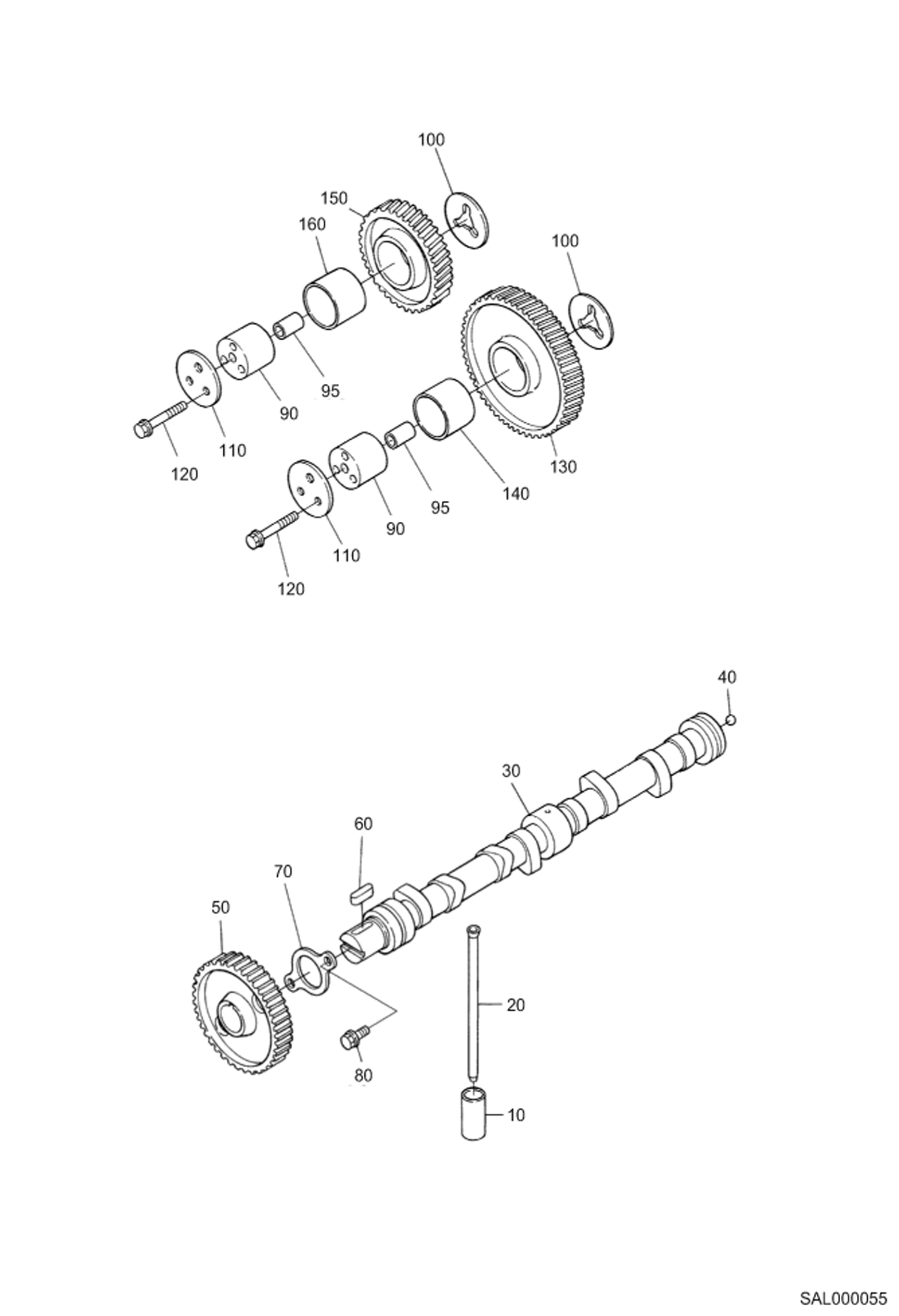

Схема запчастей Bobcat AL350 - CAMSHAFT AND IDLE GEAR SHAFT POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

6680707

TAPPET

20

6680708

PUSH ROD

30

6689242

ASSY CAMSHAFT

40

6680710

BALL

50

7017197

GEAR, CAMSHAFT Was 6680711 - A

60

6652679

KEY

70

6680712

FLANGE

80

6680662

BOLT

90

6680714

SHAFT

95

6680715

PIN

100

6680716

COLLAR

110

6680717

COLLAR

120

6680685

BOLT

130

6680718

GEAR Includes Ref. 140

140

6680720

BUSHING

150

6680719

GEAR Includes Ref. 160

160

6680720

BUSHING
