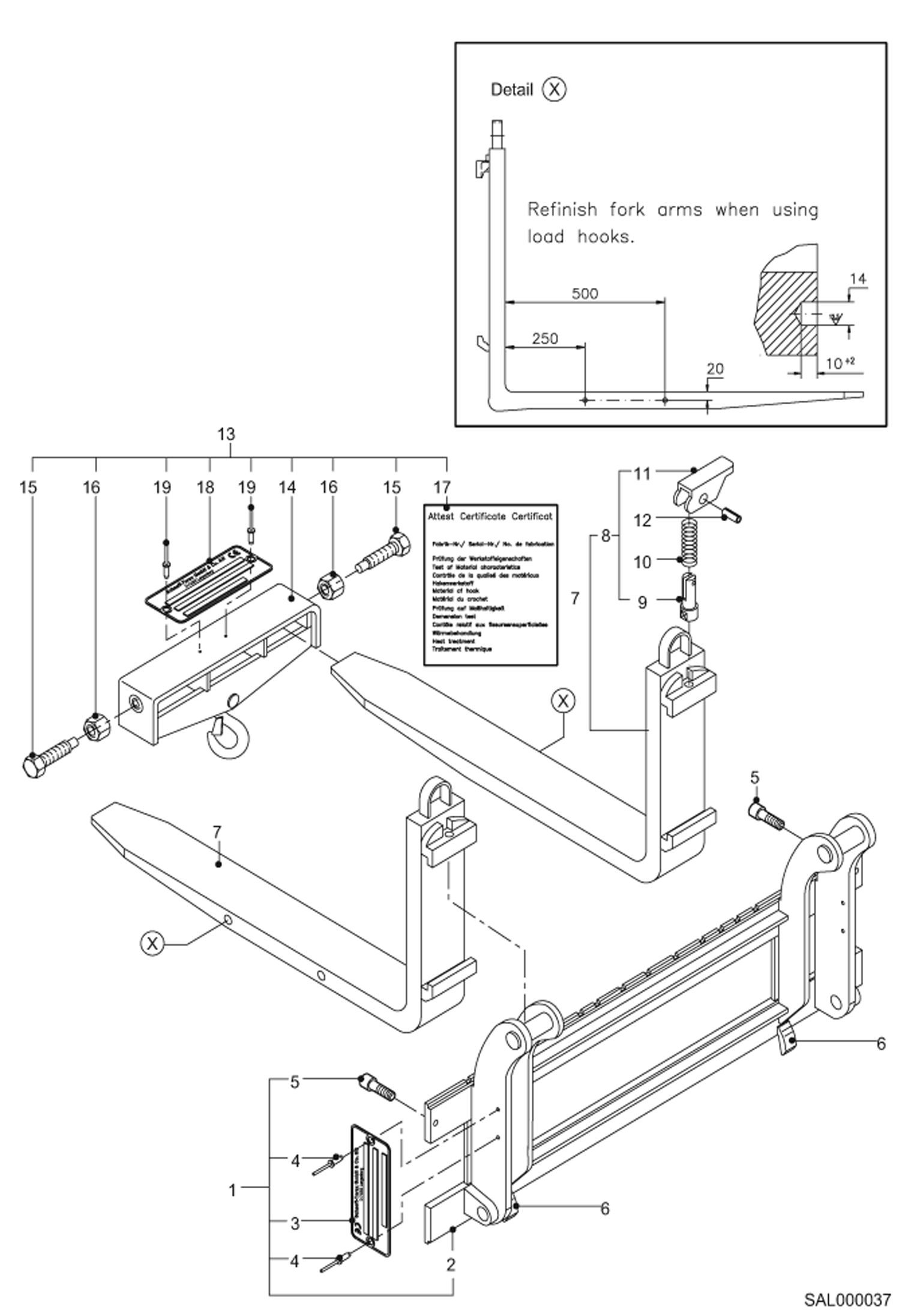

Запчасти Bobcat AL440 STACKER EQUIPMENT, CRANE HOOK Навесное оборудование

1

6397712000

FORK ATTACHMENT Includes Ref. 2 to 5

2

6397712001

FORK ATTACHMENT Includes Ref. 6

3

--

NAME PLATE

4

1940000739

RIVET

5

1045707829

BOLT

6

6397712011

STOP (welded)

7

5252661274

FORKS

8

5252700002

LOCKING DEVICE CPL. Includes Ref. 9 to 12

9

5252700001

PIN

10

5252661279

SPRING

11

5252661281

LEVER

12

5252661282

PIN

13

6398231000

CRANE HOOK

14

6398231002

CRANE HOOK

15

6333206010

BOLT

16

1210707016

NUT

17

5518223433

HOOK CERTIFICATE

18

--

NAME PLATE

19

1940000739

RIVET
