REAR CHASSIS, MUD GUARD

Запчасти Bobcat AL440 REAR CHASSIS, MUD GUARD MAIN FRAME

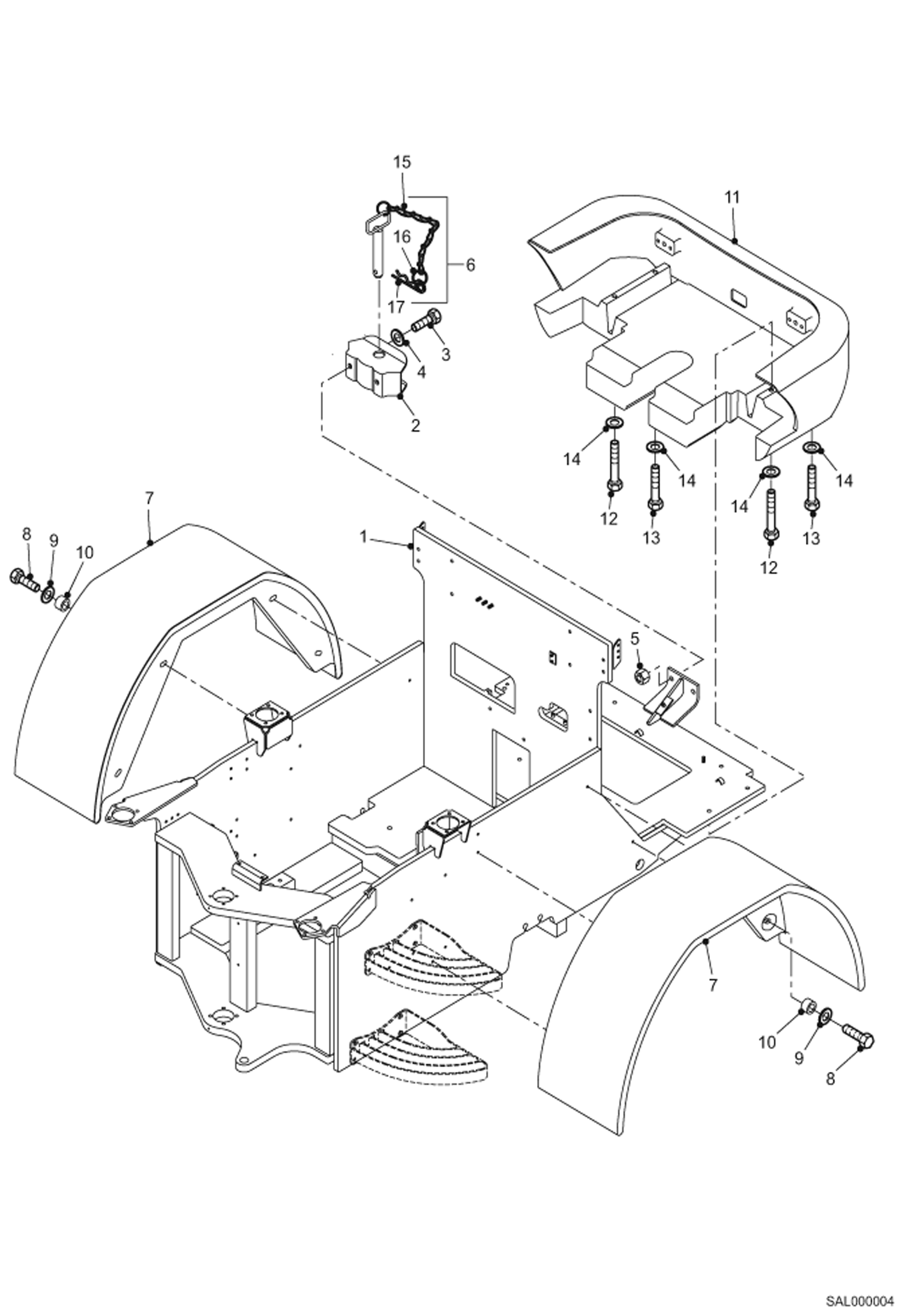

Схема запчастей Bobcat AL440 - REAR CHASSIS, MUD GUARD MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6453005001

REAR CHASSIS CPL.

2

0454006026

TRAILER COUPLING

3

1008707136

BOLT

4

1343707063

WASHER

5

1212251015

NUT

6

5603620631

PIN Includes Ref. 15 to 17

7

5267010058

MUD GUARD

8

1008707424

BOLT

9

1307707020

WASHER

10

0188814218

SPACE BUSHING

11

6453006021

COUNTERWEIGHT

12

1007707841

BOLT

13

1007707441

BOLT

14

1343707065

WASHER

15

5361324500

CHAIN

16

1557909026

RING

17

5603620632

JACK LATCH
