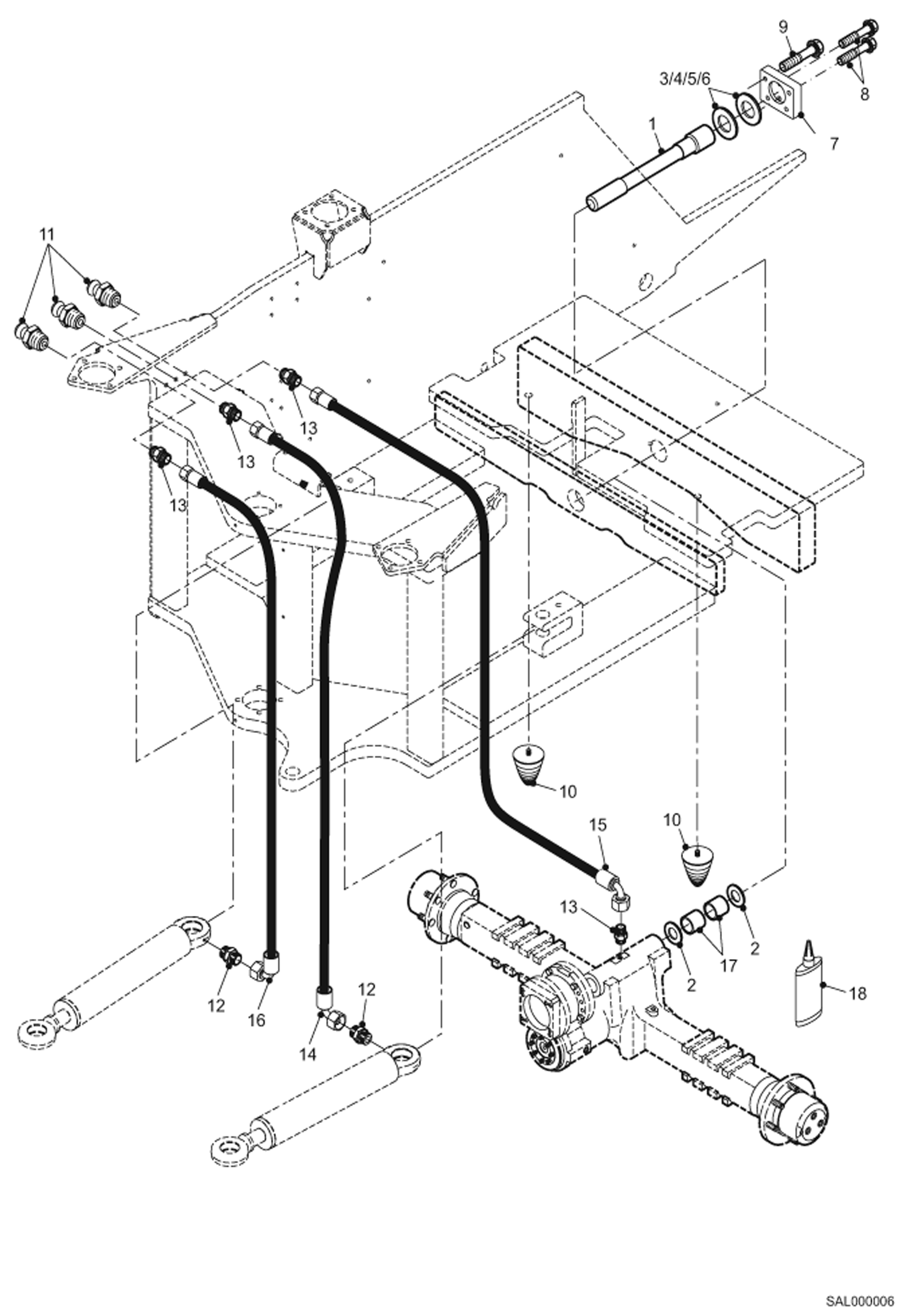

Запчасти Bobcat AL440 OSCILLATING AXLE BEARING, CENTRALIZED LUBRICATION HYDRAULIC INSTALLATION

1

0460006016

PIN

2

1309412934

SHIM

3

1309412726

SHIM Compensate with shims if necessarry

4

1309412213

SHIM Compensate with shims if necessarry

5

1309412809

SHIM Compensate with shims if necessarry

6

1309412209

SHIM Compensate with shims if necessarry

7

6461506017

COVER

8

1017370230

BOLT

9

1017341630

BOLT

10

5803650025

RUBBER BASE Secure with LOCTITE 242

11

1607003010

GREASE NIPPLE

12

1915000005

FITTING

13

1915000002

FITTING

14

0330009003

HOSE

15

0330009003

HOSE

16

0330009005

HOSE

17

5904657954

BUSHING

18

GLUE NLA - Was MCS001036A - A
