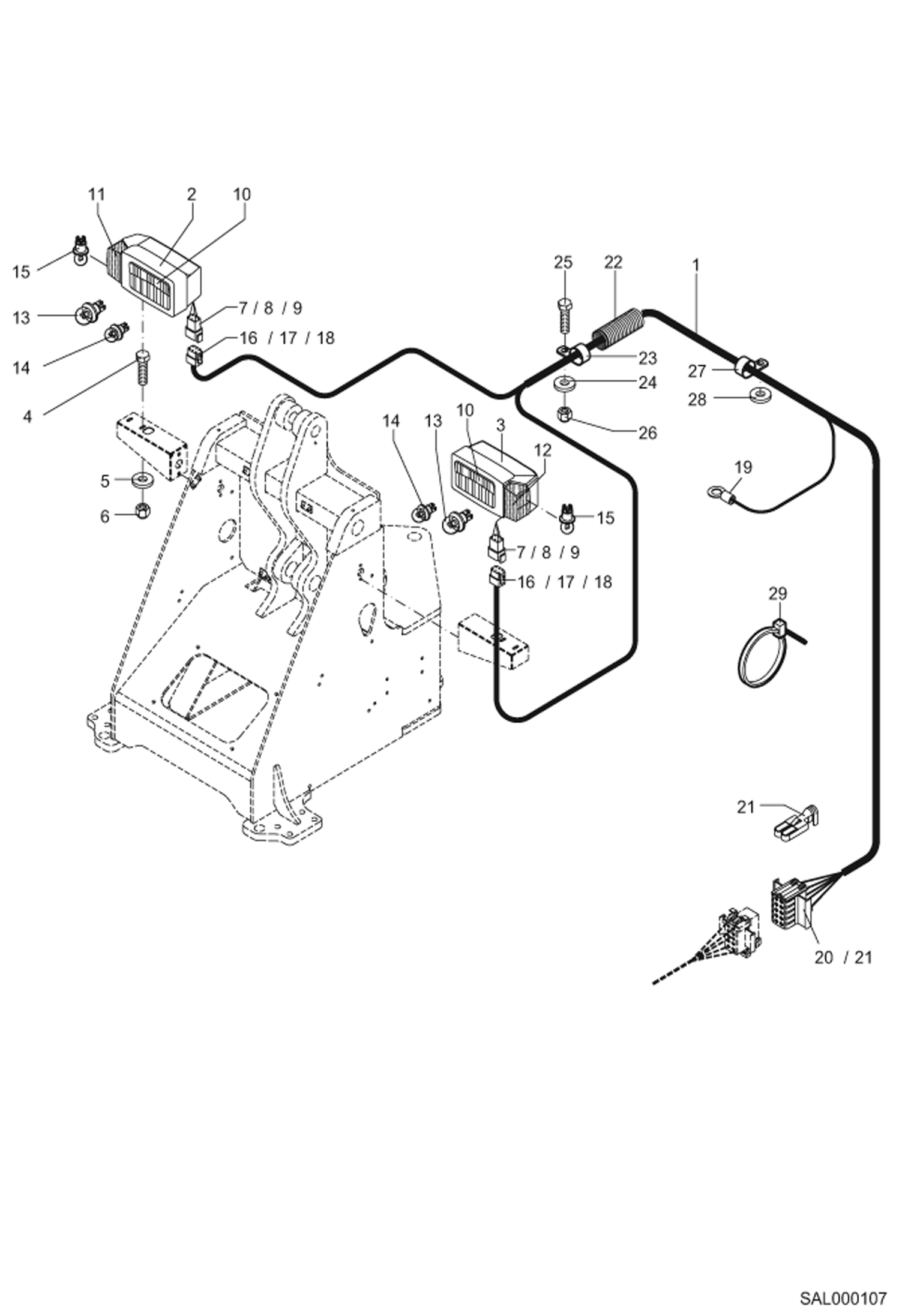

Запчасти Bobcat AL440 FRONT CHASSIS ELECTRICITY ELECTRIC INSTALLATION

1

5110662034

WIRE HARNESS FRONT CH.

2

5110660147

HEAD LIGHT RIGHT Includes Ref. 4 to 11

3

5110660148

HEAD LIGHT LEFT Includes Ref. 4 to 10 + 12

4

1008707618

BOLT

5

1343707057

WASHER

6

1212251011

NUT

7

5350555342

HOUSING (MALE)

8

5350555344

LOCK

9

5350555321

MALE TERMINAL

10

5110660190

REFLECTOR

11

5110660183

GLASS (SIGNAL LIGHT) RIGHT

12

5110660184

GLASS (SIGNAL LIGHT) LEFT

13

1813000022

HALOGEN BULB

14

1813000002

BULB SPHERICAL

15

1813000005

BULB (SIGNAL LIGHT)

16

5350555327

HOUSING (FEMALE)

17

5350555328

LOCK

18

5350555325

FEMALE TERMINAL

19

5350246610

CABLE CONNECTOR

20

5350249554

HOUSING (FEMALE)

21

5350249552

CONNECTOR

22

5399000294

HOSE PART

23

5000136710

HOSE CLIP

24

1290707018

WASHER

25

1008707318

BOLT

26

1212251011

NUT

27

5000096800

HOSE CLAMP

28

1343707057

WASHER

29

5653093560

BINDER
