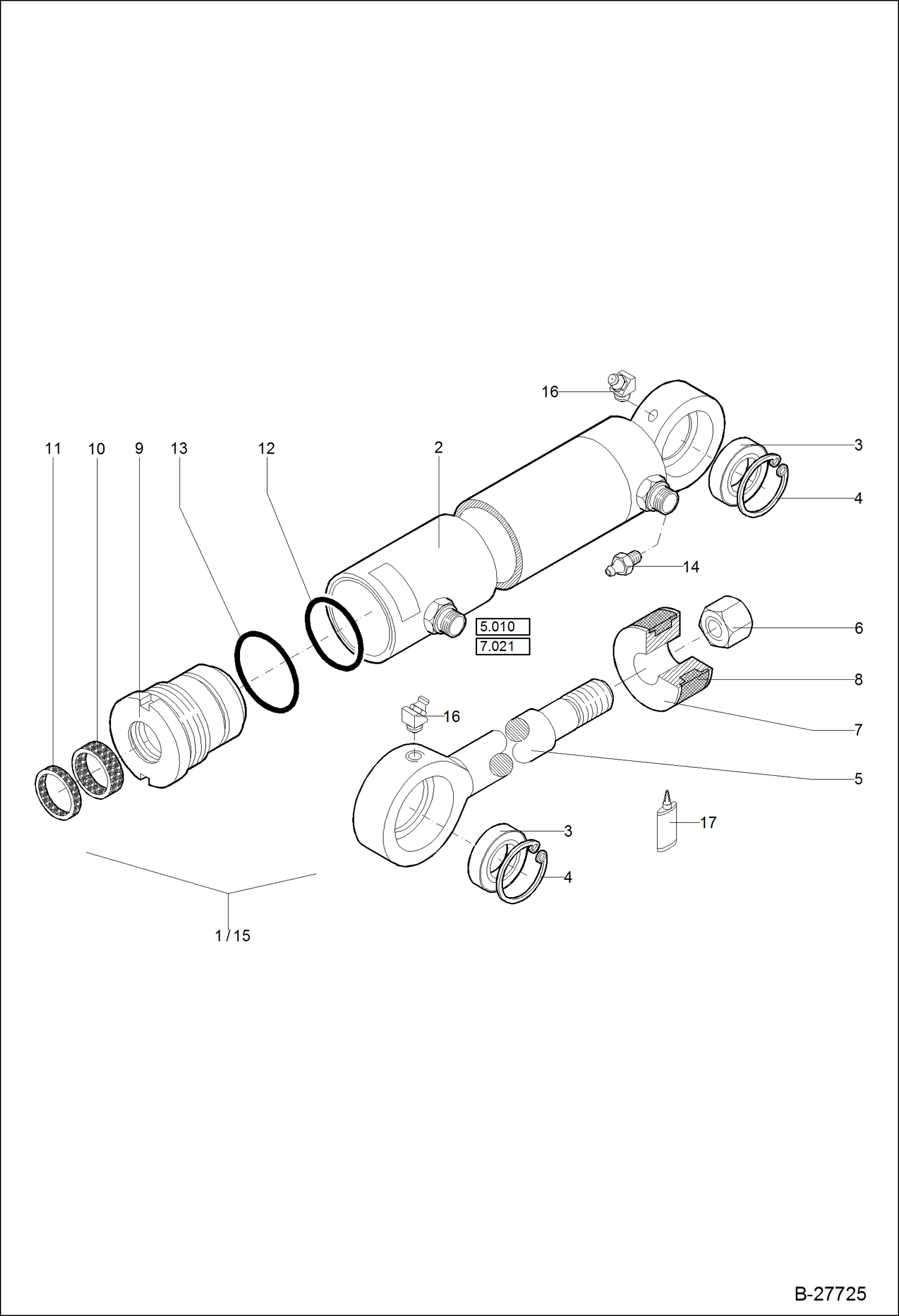

Запчасти Bobcat WL350 HYDRAULIC CYLINDER - 4 IN 1 SHOVEL ACCESSORIES & OPTIONS

1

6500405000

HYDRAULIC CYLINDER Z 63/30 - Ref. 2-14

2

6500405003

PIPE

3

1950000810

LINKAGE BEARING

4

1456622149

CIRCLIP

5

6500405011

PISTON ROD

6

1212251819

NUT M 22X2

7

0500052015

PISTON

8

1634935249

PISTON SEAL

9

0500405017

PIERCING BUSHING

10

1965956303

ROD SEAL

11

1974955030

SCRAPER RING

12

1971958332

O-RING

13

1971958037

O-RING

14

1607003006

GREASE NIPPLE M 6x1

15

1976999202

KIT, SEAL Ref. 6, 8 & 10-13

16

1608003006

GREASE NIPPLE M 6X1 45

17

GLUE NLA - Was MCS001036A - A
