REDUCTION GEAR HOUSING (Fast Travel)

Запчасти Bobcat WL350 REDUCTION GEAR HOUSING (Fast Travel) DRIVE TRAIN

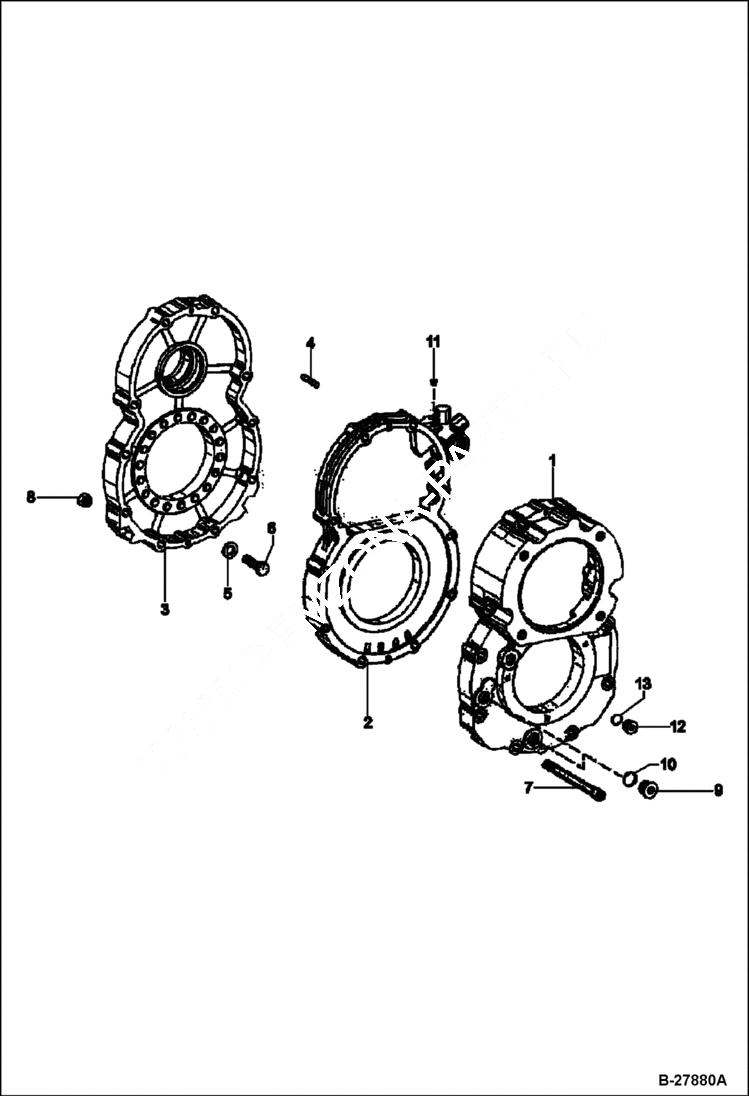

Схема запчастей Bobcat WL350 - REDUCTION GEAR HOUSING (Fast Travel) DRIVE TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HOUSING, REDUCTION NLA - front

2

HOUSING, REDUCTION NLA - center

3

HOUSING, REDUCTION NLA - rear

4

PIN NLA

5

5904658022

WASHER

6

5904657985

BOLT

7

BOLT NLA

8

NUT NLA

9

5904657896

PLUG W/Ref. 10

10

1970958610

O-RING

11

1146201413

PLUG

12

1148201617

PLUG W/Ref. 13

13

5904662661

O-RING
