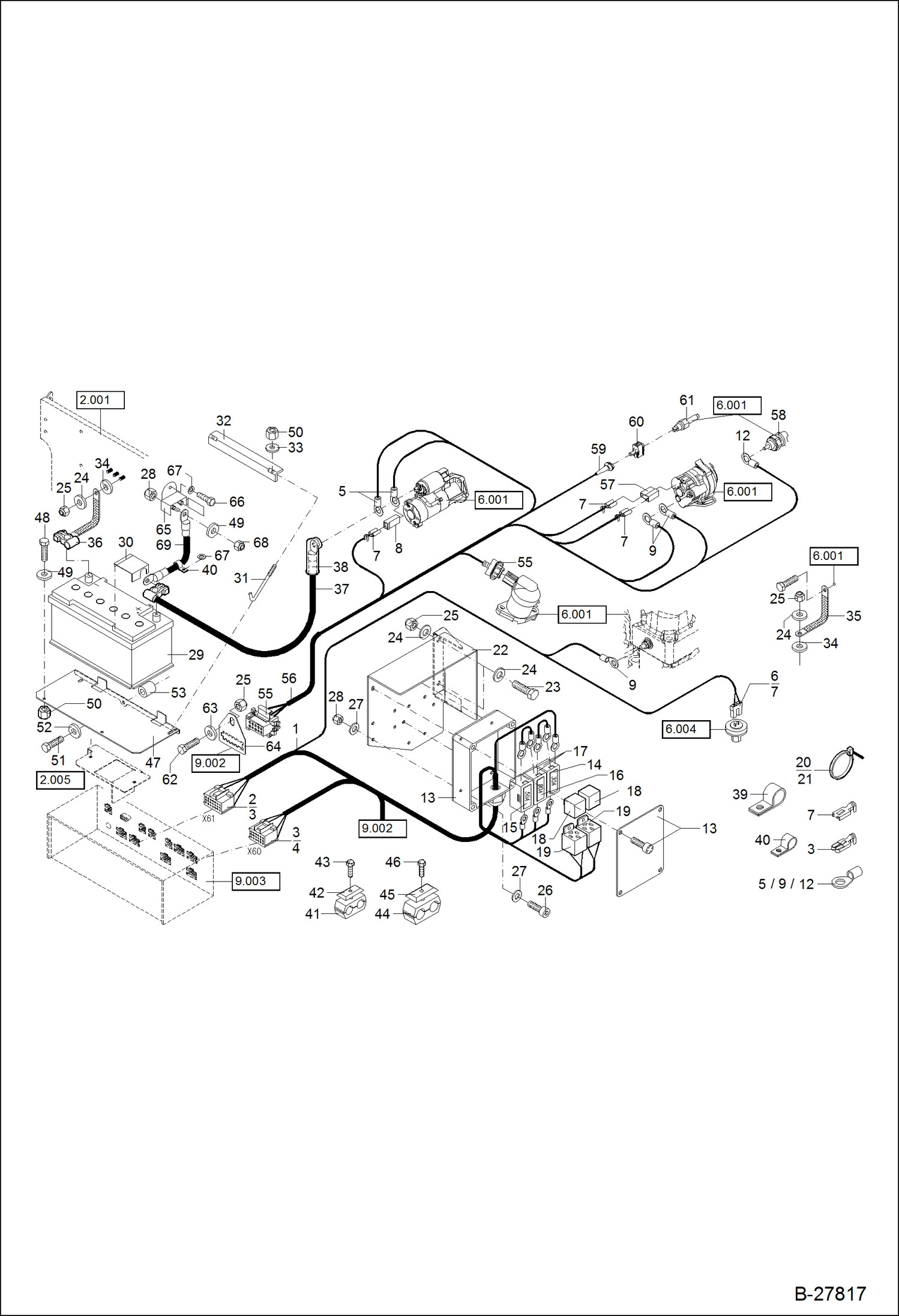

Запчасти Bobcat WL440 ELECTRIC INSTALLATION - ENGINE AND BATTERY ELECTRICAL SYSTEM

1

0453840015

HARNESS, WIRE Was 6453840015 - A

2

5350249751

HOUSING (FEMALE)

3

5350249552

CONNECTOR

4

5350249753

CONNECTOR

5

5350249597

CABLE CONNECTOR M 8 gelb

6

5350249576

HOUSING

7

5350249579

FEM TERMINAL POSITIVE LOCK

8

5350249507

HOUSING (MALE)

9

5350249600

CABLE CONNECTOR M 6 gelb

12

5350241104

CABLE CONNECTOR M 4 blau

13

BOX, FUSE NLA

14

5050650421

FUSE 30 A

15

5050650452

FUSE 50 A

16

5050650489

FUSE 80 A

17

5050650450

HOLDER

18

5050247810

RELAY

19

5050247815

BRACKET RELAY

20

5653093560

BINDER

21

5350650280

BINDER

22

6451007005

BRACKET

23

1008707124

BOLT M 10X30

24

1290707020

WASHER 10,5

25

1212251013

NUT M 10

26

1045707213

BOLT M 6X20

27

1307707014

WASHER 6,4

28

1212251009

NUT M 6

29

5159650932

BATTERY

30

5050226824

COVER

31

0331411005

STUD

32

0331411006

ANGLE Was 6331411006 - A

33

1290707018

WASHER 8,4

34

1330620020

TOOTHED WASHER 10,5

35

5653246930

EARTH CABLE 300MM

36

5653246955

EARTH CABLE 350 MM

37

0453040065

CABLE, BATTERY

38

5050580450

RUBBER

39

5000096800

HOSE CLAMP 25.4

40

5000136710

HOSE CLIP 10.7

41

5660199783

CLIP

42

5660200230

COVER PLATE

43

1007707319

BOLT M 8x45

44

5660199766

HOSE CLIP

45

5660200220

COVER PLATE

46

1008707818

BOLT M 8x35

47

0454011002

HARNESS, WIRE

48

1008707018

BOLT M 8x20

49

1290707018

WASHER 8,4

50

1212251011

NUT M 8

51

1007707519

BOLT M 8x50

52

1343707057

WASHER 8,4

53

0188814218

SPACE BUSHING

55

5350249691

CONNECTOR MALE

56

6453840080

WIRE HARNESS

57

5527661010

HOUSING (MALE)

58

SWITCH, PRESS OIL ENG NLA

59

5050650357

CAP

60

5050650355

HOUSING (MALE)

61

5411663474

TRANSMITTER, TEMP. Was 5411657101 - A

62

1008707324

BOLT M 10X35

63

1343707059

WASHER 10,5

64

0457015075

BRACKET

65

5050650420

CONTACT PLATE

66

1045707912

BOLT M 6x16

67

1290707014

WASHER 6,4

68

1210707011

NUT M 8

69

0451007010

BATTERY CABLE
