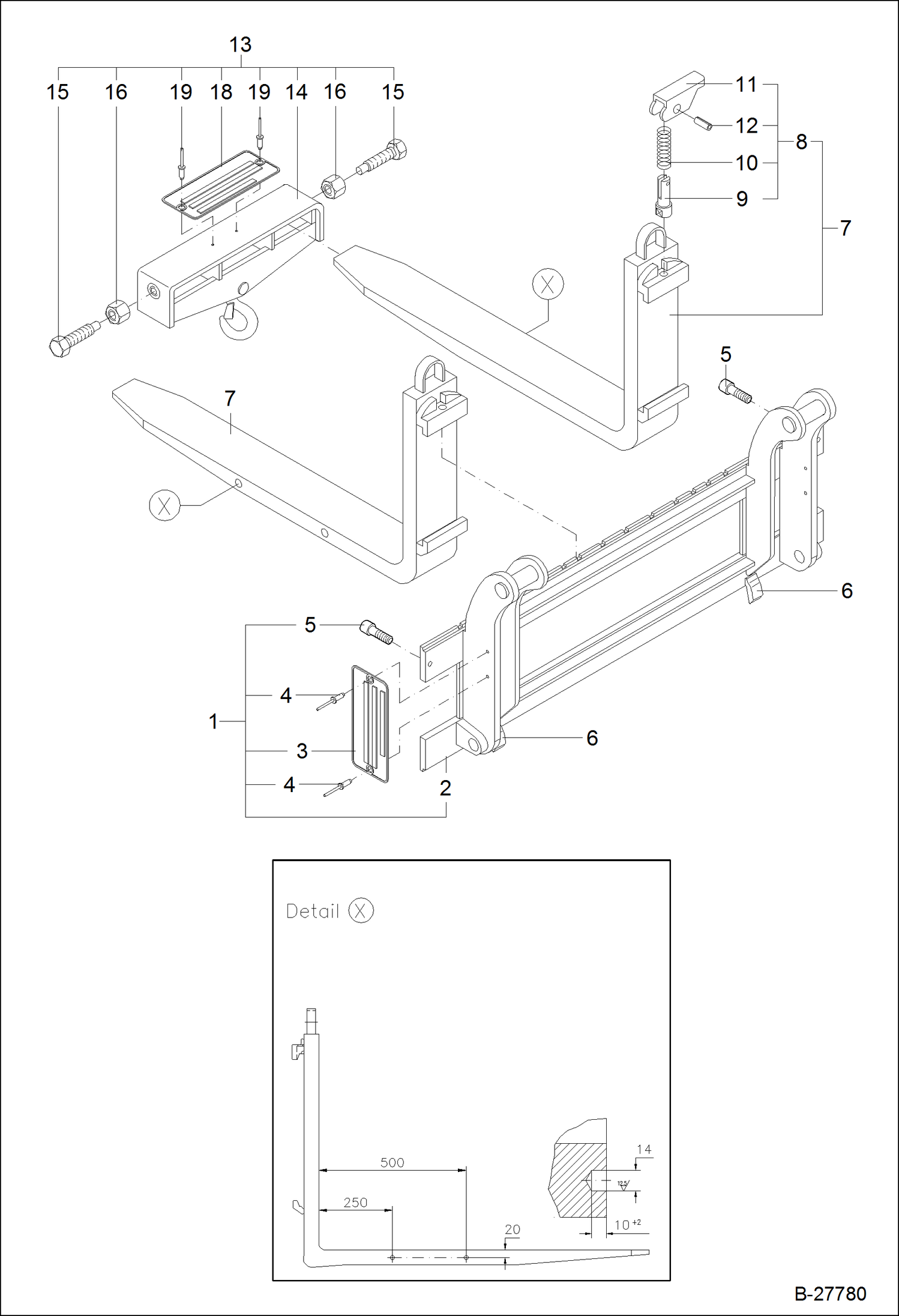

Запчасти Bobcat WL440 STACKER EQUIPMENT, CRANE HOOK ACCESSORIES & OPTIONS

1

6397712000

FORK ATTACHMENT W/Ref. 2-5

2

6397712001

FORK ATTACHMENT W/Ref. 6

3

PLATE, NAME NLA

4

1940000739

RIVET

5

1045707829

BOLT M 12X30

6

0397712011

STOP, WELDED

7

5252661274

FORKS W/Ref. 8

8

5252700002

LOCKING DEVICE CPL. Ref. 9-12

9

5252700001

PIN

10

5252661279

SPRING

11

5252661281

LEVER

12

5252661282

PIN

13

6398231000

CRANE HOOK complete - Ref. 14-19

14

6398231002

CRANE HOOK

15

6333206010

BOLT M 16X80

16

1210707016

NUT M 16

18

PLATE, NAME NLA

19

1940000739

RIVET
