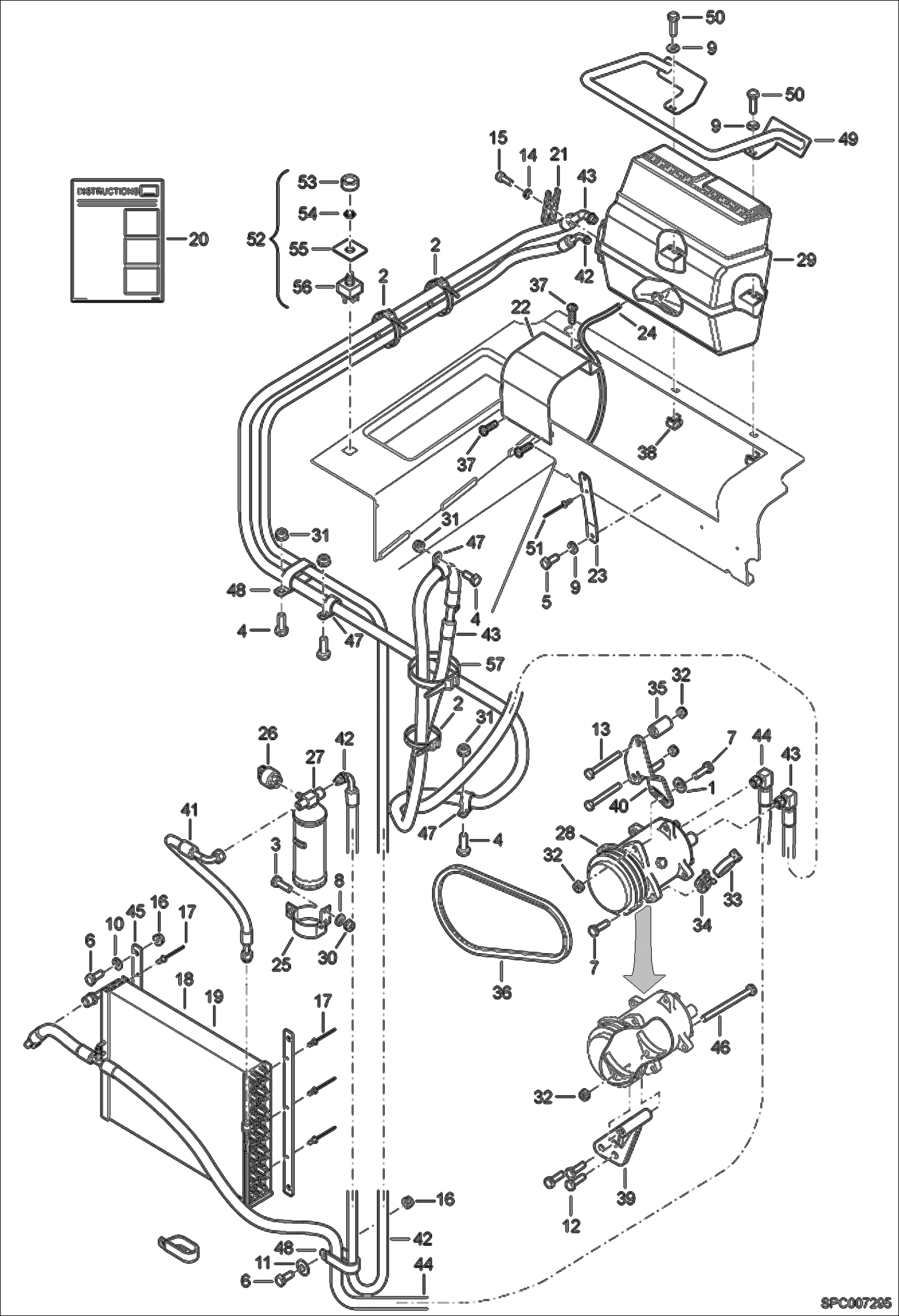

Запчасти Bobcat T2250 AIR CONDITIONING ACCESSORIES & OPTIONS

1

000350-21R

WASHER

2

6624289

STRAP, TIE

3

01478.7

Screw

4

01590.9

Screw

5

01591.7

Screw

6

1CM820

BOLT Was 01596.6 - B

7

01607.1

Screw

8

01695.6

Washer

9

01696.4

Washer

10

01697.2

Washer

11

000350-02V

WASHER

12

006330-26W

SCREW

13

1CM1090

BOLT Was 12597.1 - A

14

13416.3

Washer

15

15354.4

Screw

16

01681.6

Nut Was 51851.4 - B

17

43824.2

Rivet Was 66679.2 - A

18

81439.2

Condenser

19

GAS R-134A NLA Was 88030.2 - A

20

6986888

INSTRUCTION

21

88826.3

Plate

22

88827.1

Protector

23

88830.5

Plate

24

88848.7

Hose

25

89641.5

Bracket

26

89642.3

Switch

27

89643.1

Dryer

28

89644.9

Compressor

29

96082.3

Evaporator

30

100345-05V

NUT

31

100345-06W

NUT

32

100345-09A

NUT

33

6678669

STRAP

34

6679034

MOUNT

35

6730266

SPACER

36

6730819

BELT

37

6910951

SCREW

38

6914086

NUT

39

6920845

SUPPORT

40

6920848

BRACKET

41

6920919

HOSE ASSY

42

6920924

HOSE

43

6920946

HOSE ASSY

44

6920947

HOSE ASSY

45

6920986

SUPPORT

46

6921337

SCREW

47

30H49

CLAMP

48

31H50

COLLAR

49

6925115

PROTECTOR

50

41821.0

Screw

51

66679.2

Rivet

52

88825.5

Switch W/Ref. 53-56

53

6914433

CLIM BUTTON

54

6925361

NUT

55

6914431

PLATE

56

88825.5

Switch Was 6925362 - A

57

7194074

TIE, CABLE Was 001369-22D - A
