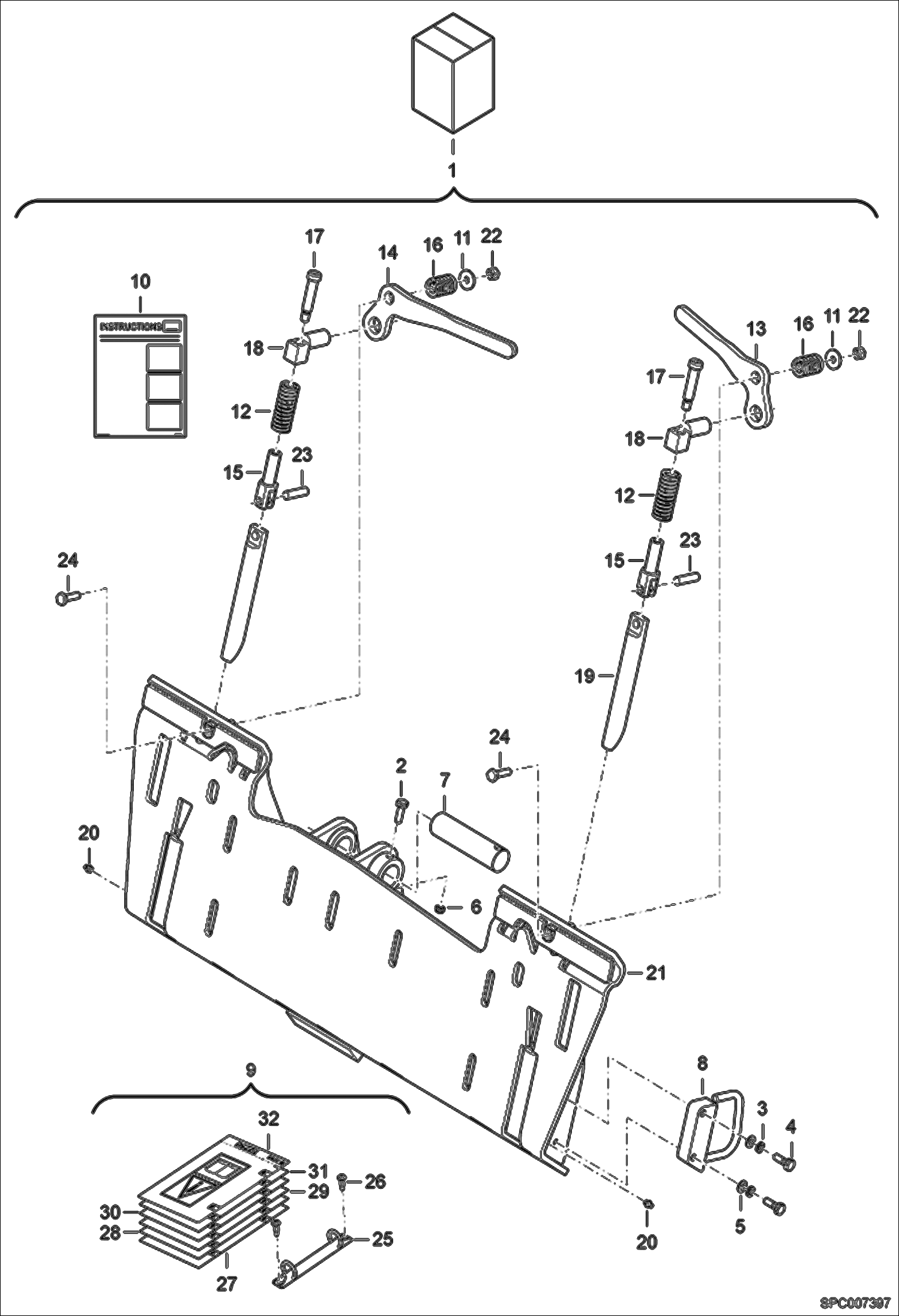

Запчасти Bobcat T2250 BOB-TACH KIT ACCESSORIES & OPTIONS

1

7154883

BOBTACH GROUP Ref. 2-32

2

01523.0

SCREW

3

01698.0

Washer

4

27833.3

SCREW

5

7225260

WASHER Was 89516.9 - A

6

100345-09A

NUT

7

6920717

SPINDLE

8

6923816

D RING W/A

9

6924727

ABACUSES CARDS W/Ref. 25-32

10

6986887

INSTRUCTION

11

619021

WASHER, 5

12

6578253

SPRING, COMPRESSION

13

6702903

LEVER, BOB-TACH LH

14

6702904

LEVER, BOB-TACH RH

15

6704248

PIVOT, WEDGE

16

6713040

SPRING

17

6728473

BOLT, SHOULDER

18

6731119

PIVOT, WEDGE

19

6737191

WEDGE

20

01775-6

GREASE NIPPLE Was 7154951 - C

21

BOB-TACH, W/A See Illustration BOB-TACH MANUAL LOCK/ SPC001172 NSS - Order 7154883 Bob-tach assy Was 7154958 - D

22

7166433

LOCK NUT Was 100345-09A - B

23

14J5032

PIN, STRAIGHT

24

7CM10100

SCREW HEX Was 65397.2 - B

25

78863.8

Support

26

79864.5

Screw

27

6922683

ABACUS CARD

28

6923746

(BLANK) other attachments

29

6923986

ABACUS CARD, BUCKET

30

6924398

ABACUS CARD, BALES PIKES

31

6924696

CARD, JOYSTICK

32

6924697

CARD, CAUTION
