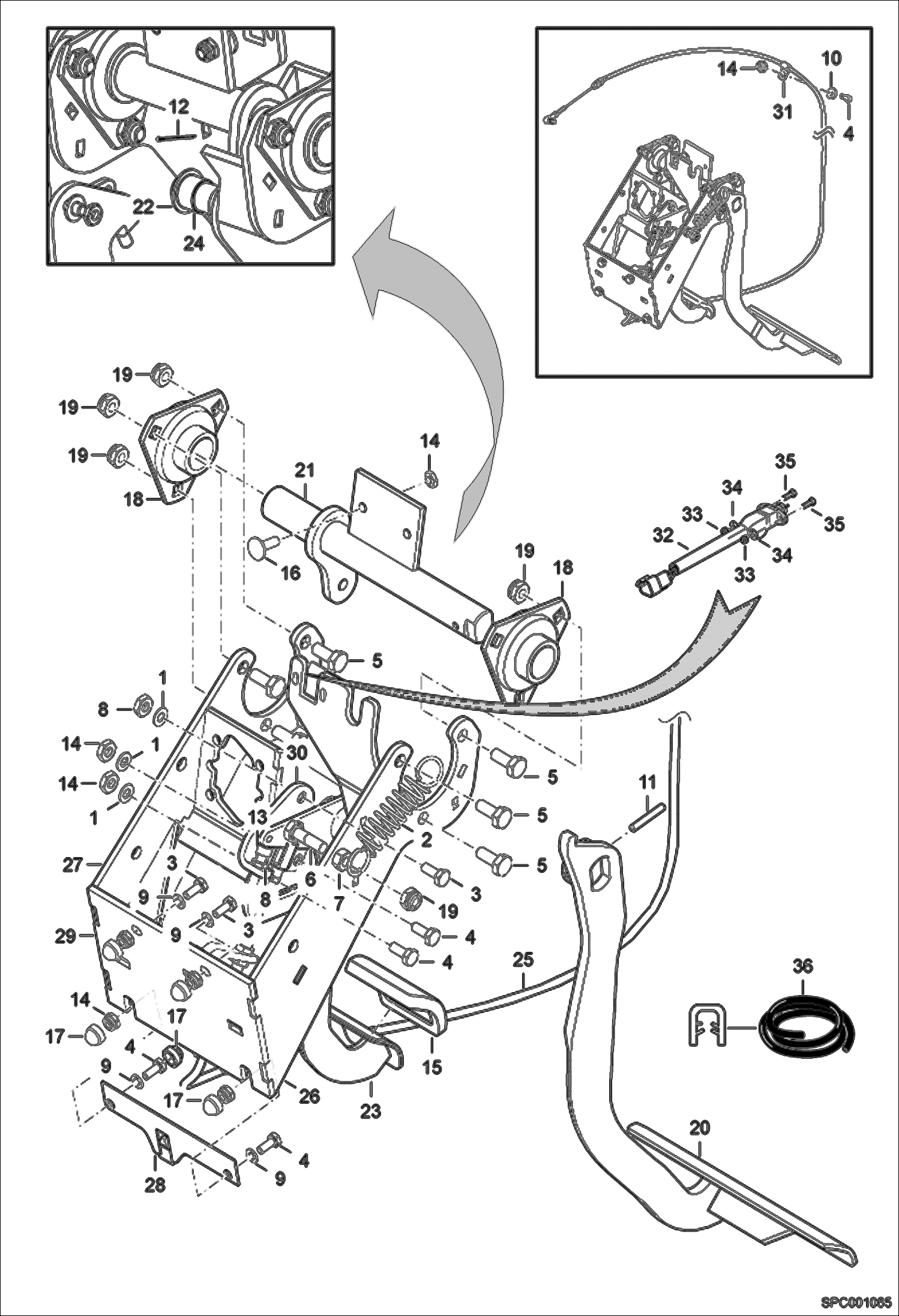

Запчасти Bobcat T2250 PEDALS (S/N AC1911001 - 15185) MAIN FRAME

1

000350-02V

WASHER

2

01124.7

Spring

3

1CM820

BOLT Was 01596.6 - B

4

4CM825

BOLT Was 01597.4 - B

5

01605.5

Screw

6

1CM1040

BOLT Was 01608.9 - B

7

01669.1

Nut

8

01681.6

Nut

9

01697.2

Washer

10

01718.6

Washer

11

01739.2

Pin

12

01754.1

Pin

13

33785.7

SCREW

14

53DM8

NUT Was 51851.4 - A

15

59893.8

Pedal pad

16

6925238

SCREW

17

63333.9

Nut cap

18

77919.9

Bracket

19

100345-09A

NUT

20

6908478

PEDAL , BRAKE

21

6908479

PEDAL SHAFT

22

6917140

WASHER

23

6917796

PEDAL

24

6917802

BRACKET

25

6918265

CABLE

26

TRIM, EDGE NAP - 70mm (2.75'') long - Order Ref. 36

27

TRIM, EDGE NAP - 30mm (1.18'') long - Order Ref. 36

28

6919672

ABUTMENT

29

6922320

SUPPORT

30

6922623

ABUTEMENT REGULABLE

31

30H23

CLAMP

32

SENSOR , INCHING NLA - Order 6934897 - Was 6909383 - A

33

100345-05V

NUT

34

6910952

WASHER JZC5

35

01478.7

Screw

36

80919.4

Seal bulk - sold per foot
