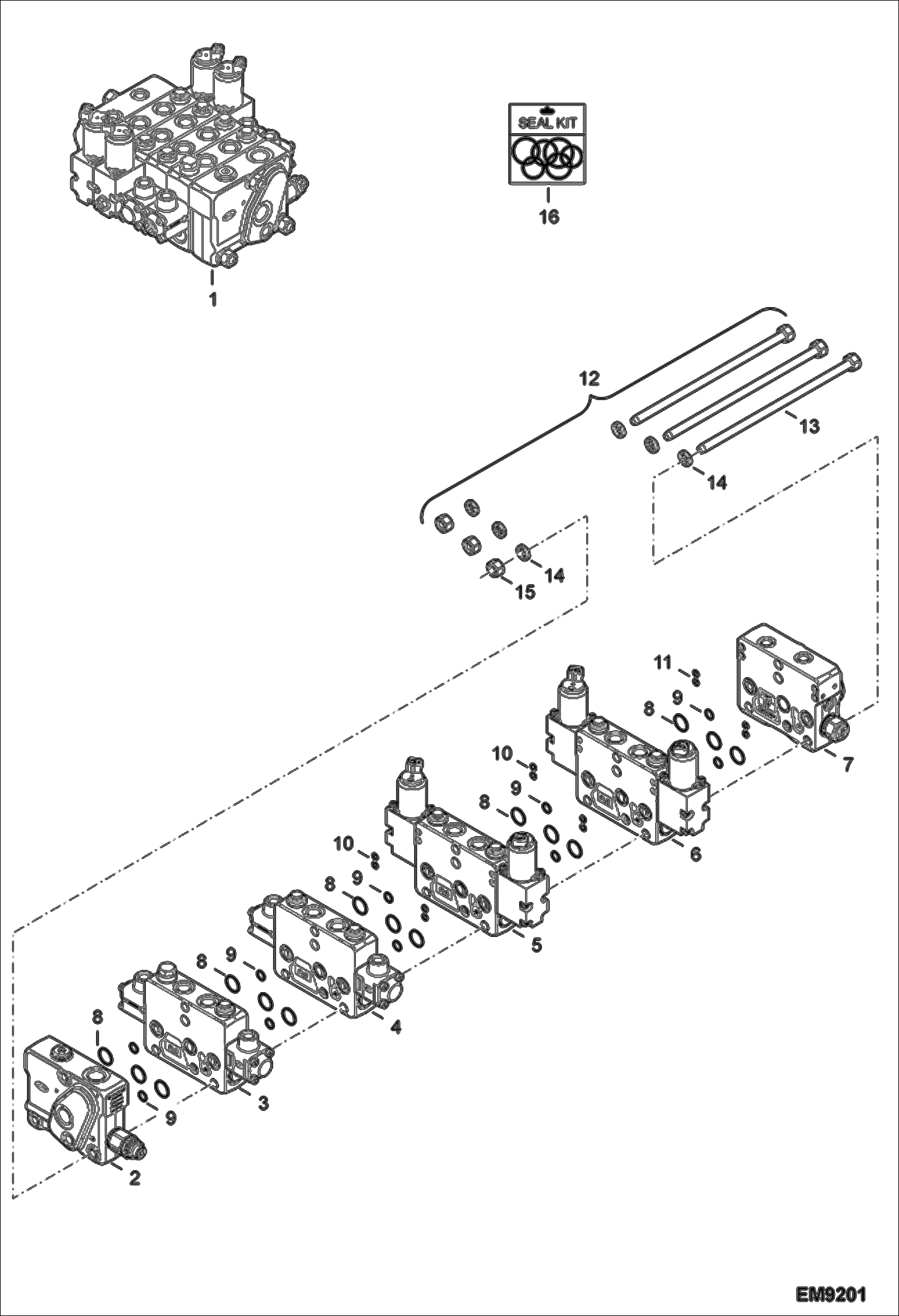

Запчасти Bobcat T2250 CONTROL VALVE (S/N AC1911252 & Above) HYDRAULIC SYSTEM

1

6926273

MAIN VALVE Ref. 2-15

2

7019153

KIT FULL INLET SECTION See Illustration CONTROL VALVE SECTION/ EM9202 inlet

3

7019155

KIT FULL WORKING SECTION See Illustration CONTROL VALVE SECTION/ EM9203 lift

4

7019156

KIT FULL WORKING SECTION See Illustration CONTROL VALVE SECTION/ EM9204 tilt

5

7019157

KIT FULL WORKING SECTION See Illustration CONTROL VALVE SECTION/ EM9205 telescope

6

7019158

KIT FULL WORKING SECTION See Illustration CONTROL VALVE SECTION/ EM9206 auxiliary

7

7011903

KIT OUTLET SECTION See Illustration CONTROL VALVE SECTION/ EM9207 outlet

8

O-RING NLA - Order Ref. 16

9

O-RING NLA - Order Ref. 16

10

O-RING NLA - Order Ref. 16

11

O-RING NLA - Order Ref. 16

12

6921049

TIE ROD KIT Ref. 13-15

13

BOLT NLA - Order Ref. 12

14

WASHER NLA - Order Ref. 12

15

NUT NLA - Order Ref. 12

16

7019160

FULL SEAL KIT Ref. 8-11
