CONTROL VALVE SECTION (Inlet) (S/N AC1911252 & Above)

Запчасти Bobcat T2250 CONTROL VALVE SECTION (Inlet) (S/N AC1911252 & Above) HYDRAULIC SYSTEM

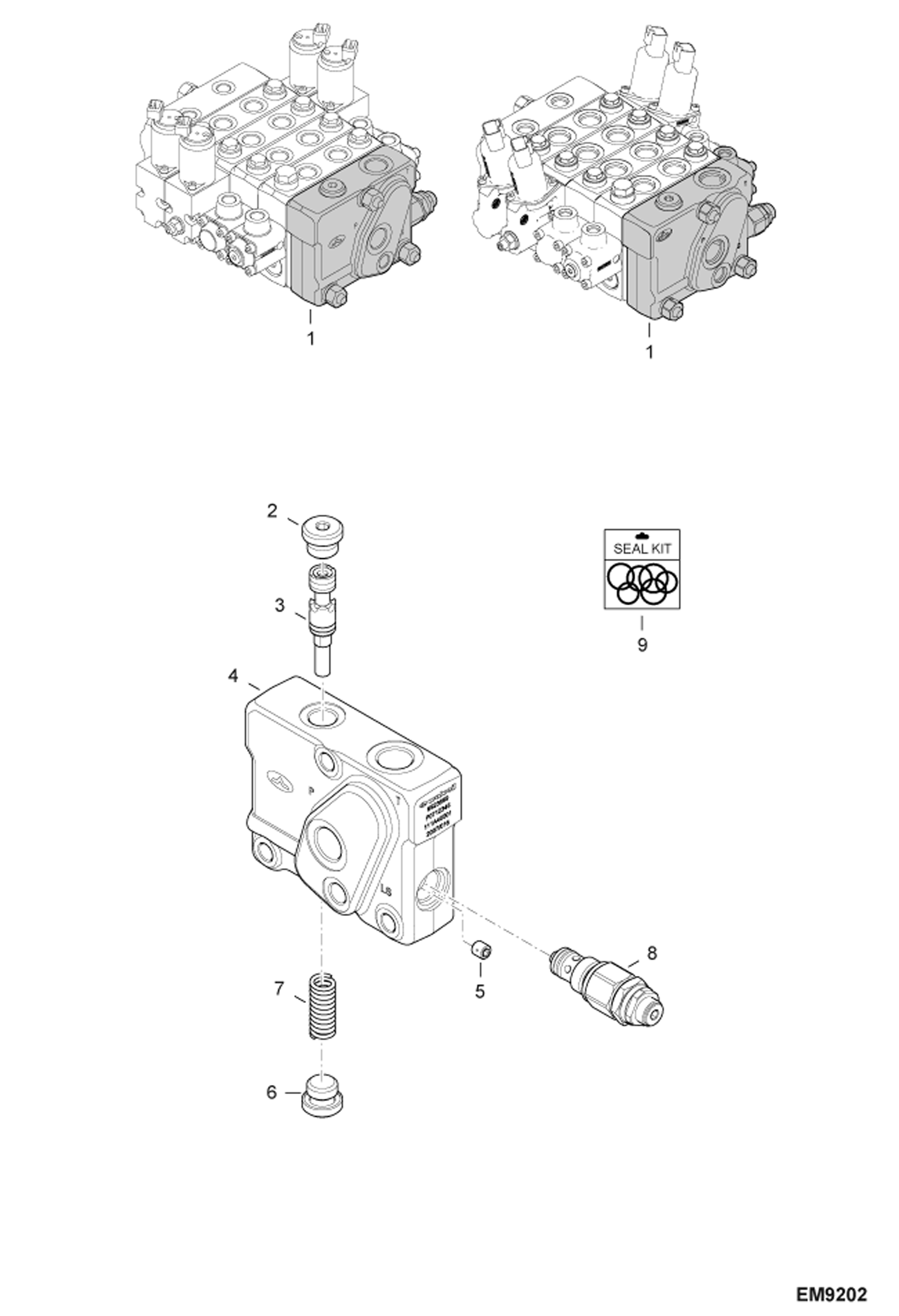

Схема запчастей Bobcat T2250 - CONTROL VALVE SECTION (Inlet) (S/N AC1911252 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7019153

KIT FULL INLET SECTION inlet - Ref. 2-8

2

PLUG NAP - Order Ref. 4

3

KIT SPOOL NLA- Order Ref. 4 - Was 7023764 - D

4

7011910

KIT INLET SECTION W/Ref. 2-3 & 5-7

5

THROAT NAP - Order Ref. 4

6

PLUG NAP - Order Ref. 4

7

SPRING NAP - Order Ref. 4

8

VALVE NLA - Order Ref. 1 - Was 6921050 - D

9

7019154

SEAL KIT INLET SECTION
