CONTROL VALVE SECTION (Outlet) (S/N AC1911252 & Above)

Запчасти Bobcat T2250 CONTROL VALVE SECTION (Outlet) (S/N AC1911252 & Above) HYDRAULIC SYSTEM

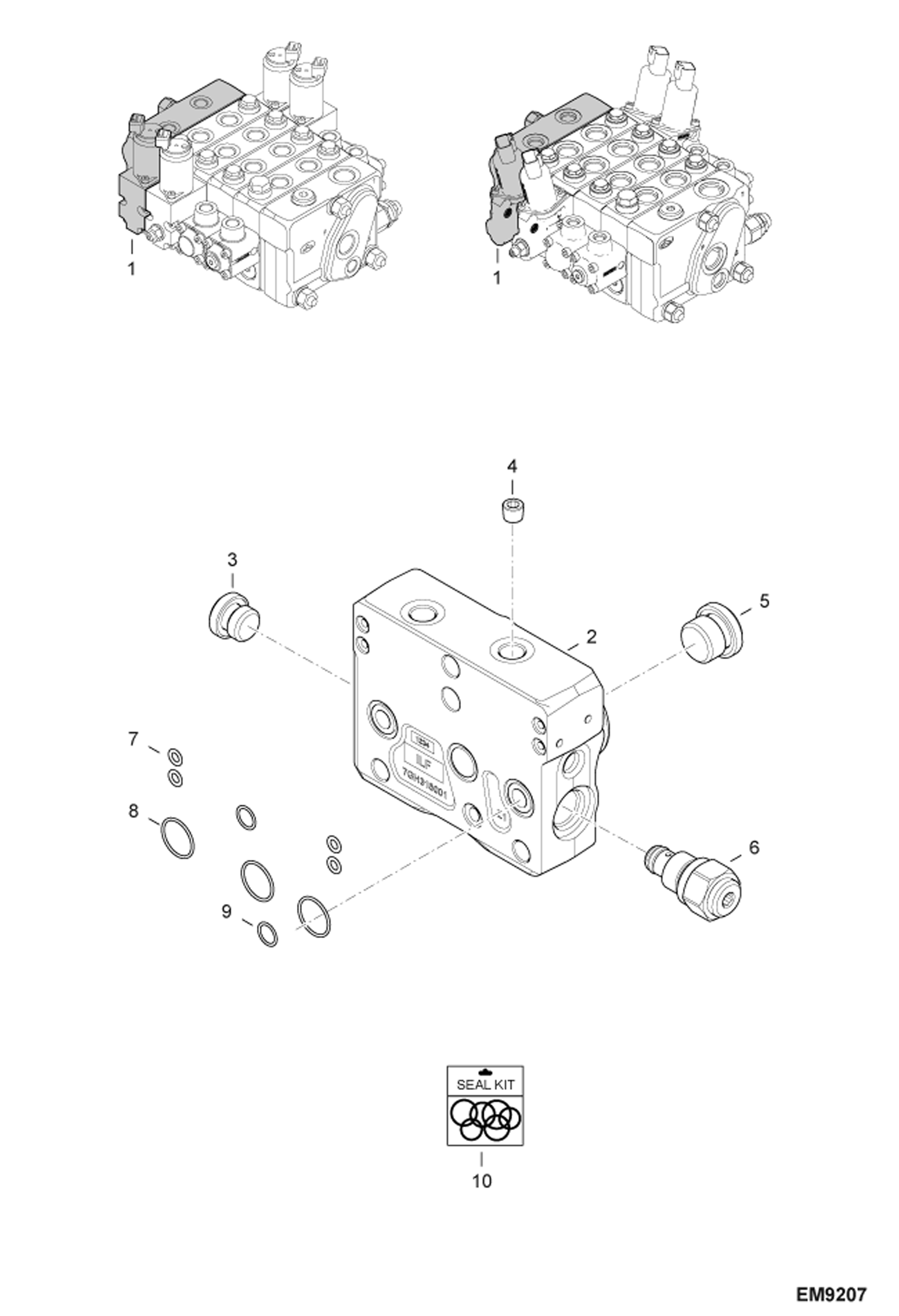

Схема запчастей Bobcat T2250 - CONTROL VALVE SECTION (Outlet) (S/N AC1911252 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7011903

KIT OUTLET SECTION outlet - Ref. 2-9

2

BODY NLA - Order Ref. 1

3

6679600

PLUG

4

7023861

PLUG

5

6679629

PLUG

6

7022387

REGULATOR, FLOW

7

O-RING NLA - Order Ref. 10

8

O-RING NLA - Order Ref. 10

9

O-RING NLA - Order Ref. 10

10

7019159

SEAL KIT OUTLET SECTION Ref. 7-9
