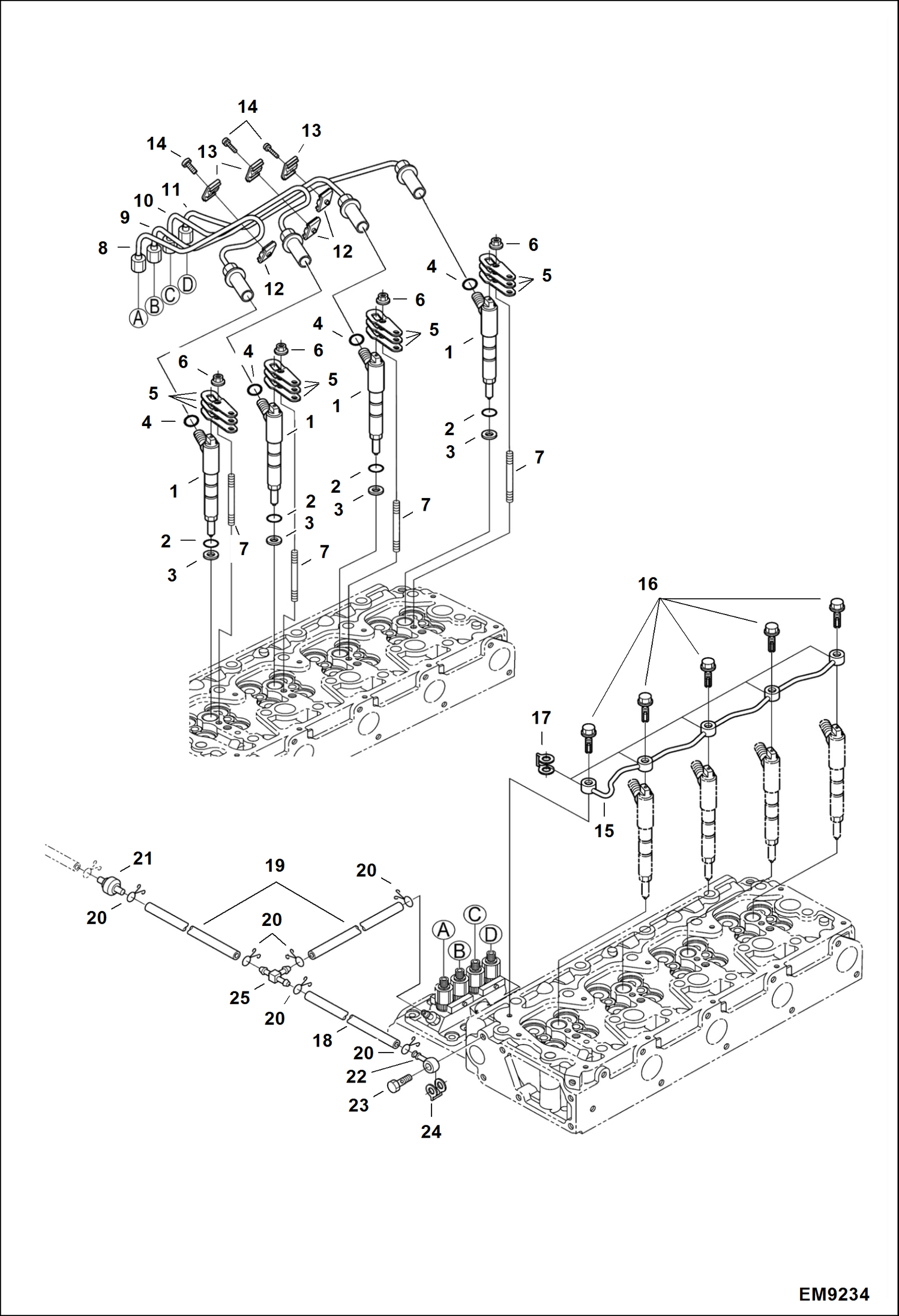

Запчасти Bobcat T2250 FUEL INJECTION SYSTEM (Injectors) POWER UNIT

1

6698542

INJECTOR, FUEL ASSY

2

6670769

O-RING

3

6969824

GASKET, NOZZLE INJ

4

6680778

O-RING

5

7008644

CLAMP, INJECTION Was 6680780 - B

6

6969819

NUT, FLANGE

7

6680867

STUD

8

6698565

PIPE, INJECTION

9

6698567

PIPE, INJECTION

10

6698566

PIPE, INJECTION

11

6698568

PIPE, INJECTION

12

6652688

CLAMP

13

6652689

CLAMP

14

3974260

SCREW

15

6680787

PIPE

16

6680788

BOLT

17

6685498

GASKET

18

6685944

HOSE

19

6685945

HOSE

20

6654718

CLAMP Was 6680795 - A

21

6680796

VALVE

22

6680790

FITTING

23

7022765

BOLT, EYE Was 6680791 - A

24

6698528

WASHER, SEALING

25

6680797

TEE
