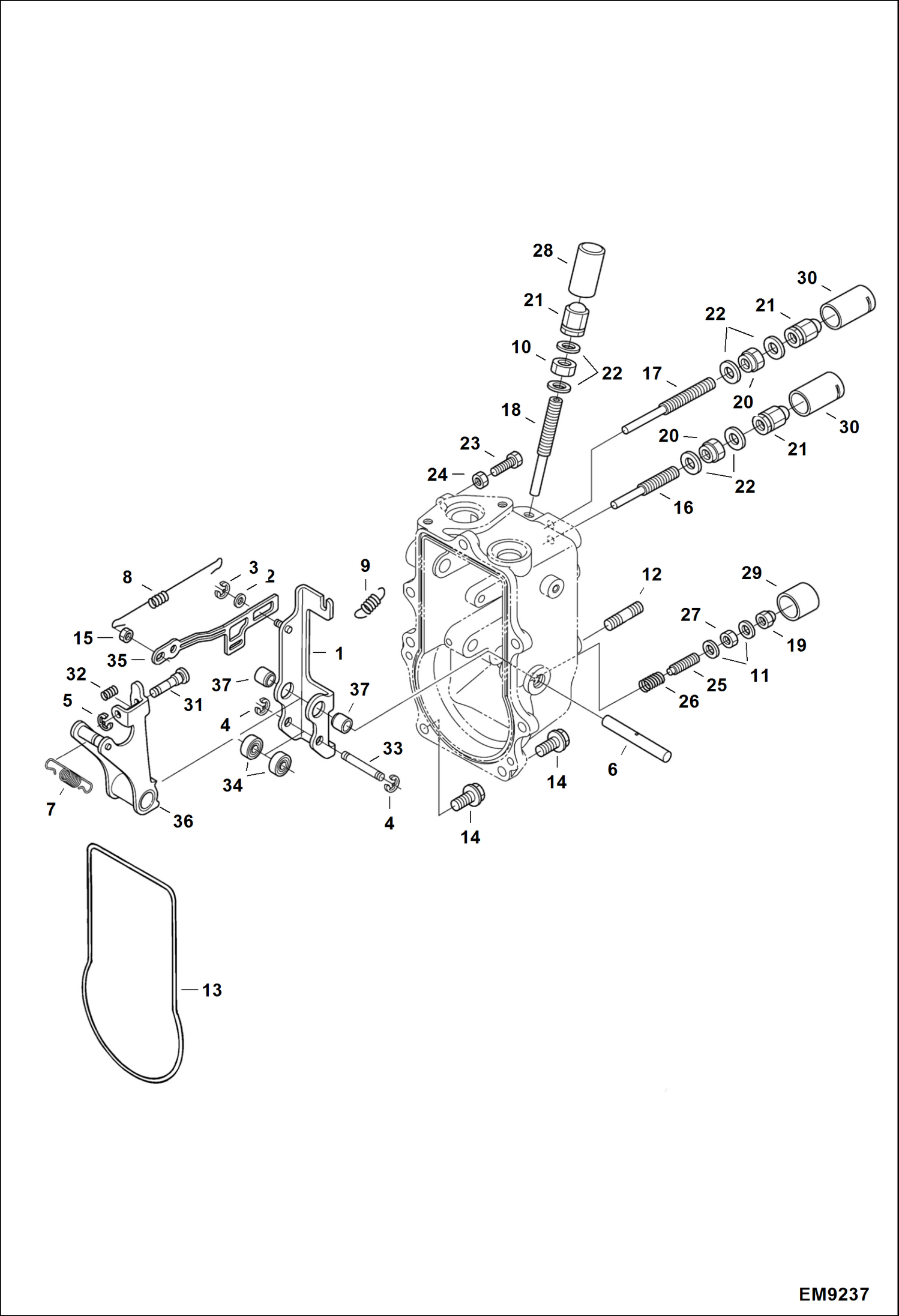

Запчасти Bobcat T2250 GOVERNOR (Fork Lever & Adjusting Bolt) POWER UNIT

1

LEVER, FORK NAP - W/Ref. 2-5 & 31-37 - Use 7008576 (lever) & 7008575 (spring) Was 6698569 - A

1

7008576

LEVER Assy - W/Ref. 2-5 & 31-37

2

6680820

WASHER

3

6680821

SNAP RING external

4

6680822

SNAP RING external

5

6680823

SNAP RING external

6

6689318

SHAFT, FORK LEVER

7

6689315

SPRING, GOVERNOR

7

7008575

SPRING, GOVERNOR

8

6689316

SPRING, START

9

6680827

SPRING

10

6657459

NUT

11

3974095

MET-GASK

12

6680828

STUD

13

6680829

GASKET

14

6680830

BOLT

15

6685952

NUT

16

6680832

SCREW

17

6680833

SCREW

18

6686985

BOLT, ADJUSTING

19

6670426

NUT

20

6680272

NUT

21

6657470

NUT

22

3974972

GASKET

23

6652712

STOPPER Was 6680834 - A

24

1DM6

NUT Was 6969802 - A

25

6689311

ASSY BOLT, ADJUSTMENT W/Ref. 26-27

25

7010190

BOLT, ADJUSTMENT W/Ref. 26-27

26

SPRING NSS - Order Ref. 25

27

6599085

NUT

28

6672384

CAP, SECURITY

29

6670427

CAP, SECURITY

30

CAP NAP

31

BOLT NSS - Order Ref. 1

32

SPRING NSS - Order Ref. 1

33

ROD NSS - Order Ref. 1

34

BEARING NSS - Order Ref. 1

35

BRACKET NSS - Order Ref. 1

36

LEVER NSS - Order Ref. 1

37

BUSHING NSS - Order Ref. 1
