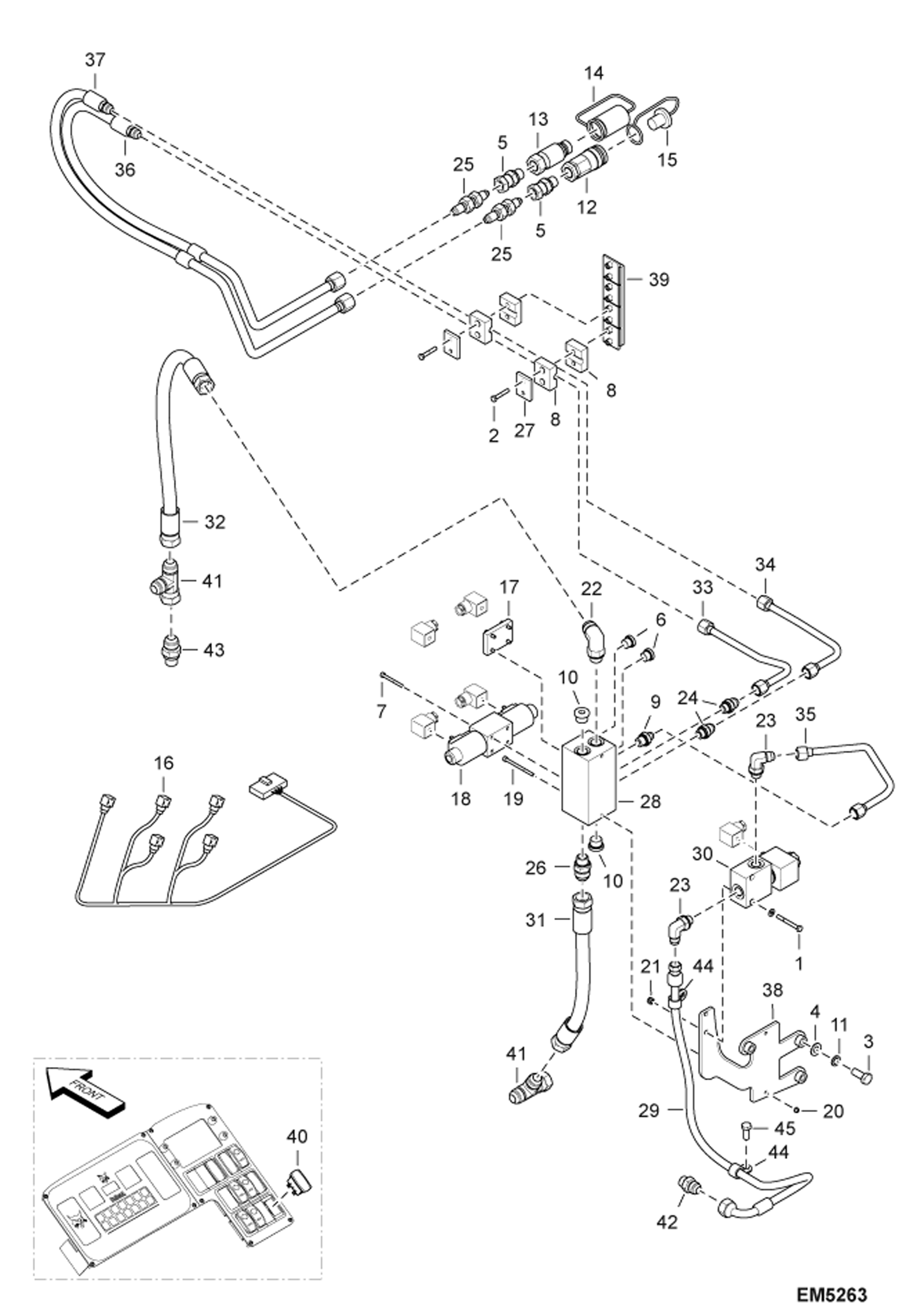

Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Auxiliary Hydraulics) (S/N AC1911252 - 14999) ACCESSORIES & OPTIONS

1

001338-08T

SCREW

2

01593.3

Screw

3

01612.1

Screw

4

01699.8

Washer

5

7225156

FITTING, HYD Was 022375-06W - A

6

56029.2

Plug

7

62153.2

SCREW

8

70687.9

COLLAR

9

77013.1

Adapter

10

78743.2

Drain plug

11

89517.7

Washer

12

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

13

7225159

COUPLER, HYD Was 95994.0 - A

14

7225160

CAP, COUPLER Was 96513.7 - A

15

7225161

CAP, COUPLER Was 96514.5 - A

16

96589.7

Wire harness

17

98353.6

Plate

18

98360.1

Union

19

98897.2

VIS

20

100345-05V

NUT

21

100345-06W

NUT

22

100370-05N

ELBOW UNION

23

100370-18C

ELBOW PIECE

24

100375-38S

UNION

25

100375-52H

UNION

26

100375-67Z

UNION

27

101228-70U

PLATE, PROTECTION

28

6911079

HYDRAULIC BLOCK

29

6911143

HOSE

30

6911845

SOLENOID 2-2

31

6920374

HOSE

32

6923430

HOSE

33

6926447

TUBELINE, HYD

34

6926448

TUBELINE, HYD

35

6926451

TUBELINE, HYD

36

6926453

FLEXIBLE MIXTE

37

6926454

FLEXIBLE MIXTE

38

6926475

HOLDER, REAR OPTION

39

6926476

BRACKET, CLAMP

40

96599.6

Rear Option Switch

40

6927725

SWITCH, REAR HYD

41

13K8

TEE

42

15KB0606

FITTING, HYD CONNECTOR

42

79K6

O RING 10

43

15KB1210

FITTING, HYD CONNECTOR

43

79K10

O RING 10

44

30H31

CLAMP 10

45

1CM816

BOLT Was 01595.8 - A
