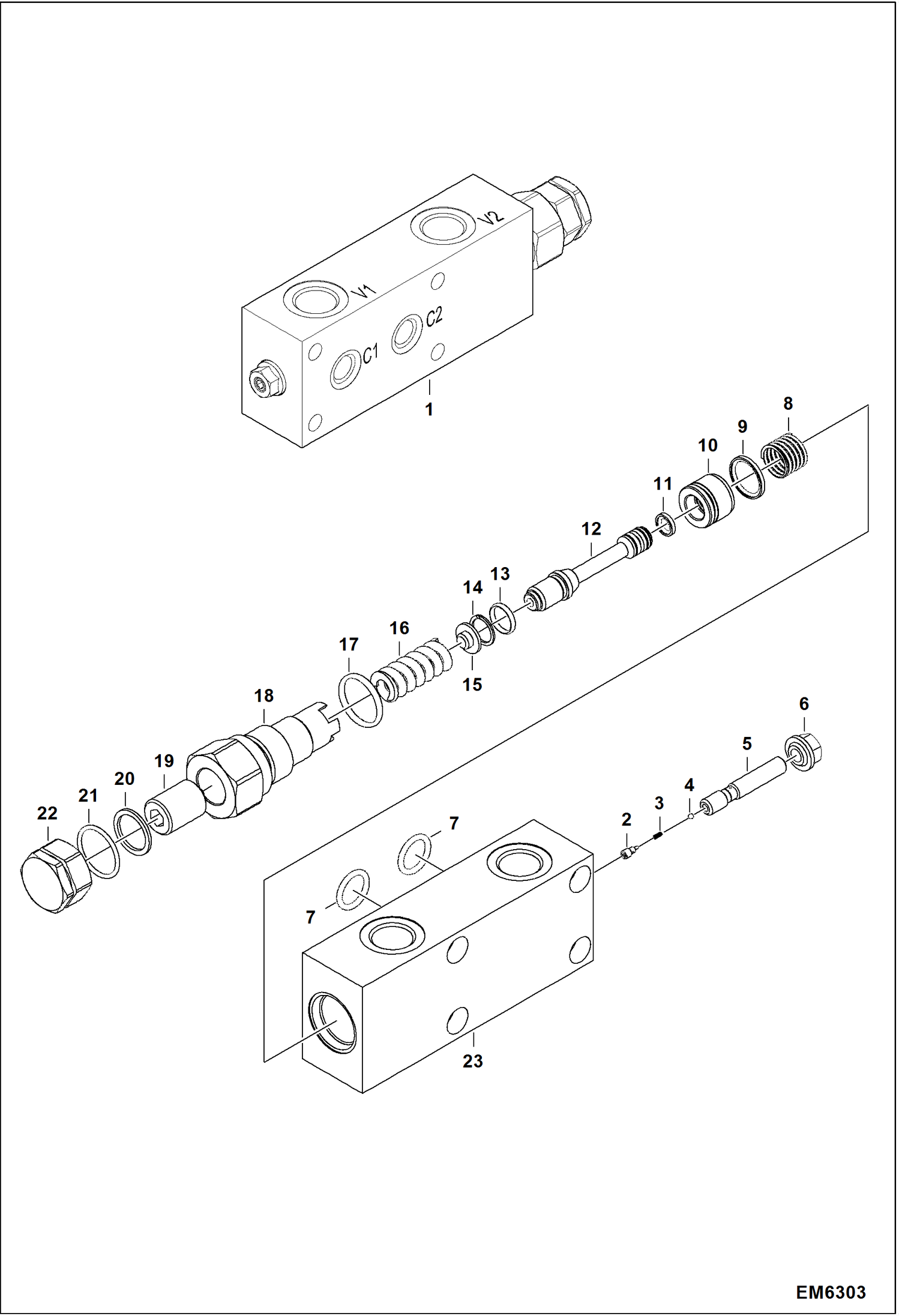

Запчасти Bobcat T2250 SAFETY VALVE HYDRAULIC SYSTEM

1

6918850

VALVE, SAFETY Ref. 2-23

2

7015559

SCREW

3

7015560

SPRING

4

7015561

BALL, BEARING STEEL

5

7015562

SCREW

6

7015563

NUT, SEAL-LOCK

7

7015564

O-RING

8

7015565

SPRING

9

7015566

O-RING

10

7015567

VALVE SEAT

11

7015568

O-RING

12

7015569

POPPET

13

7015570

ORING

14

7015571

RING, BACK-UP

15

7015572

ELEMENT, SPHERICAL CONTACT

16

7015573

SPRING

17

7015574

O-RING

18

7015575

CARTRIDGE

19

7015576

SCREW, ADJUSTING

20

7015577

WASHER, COPPER

21

7015578

O-RING

22

7015579

NUT, LOCKING

23

7015558

BODY
