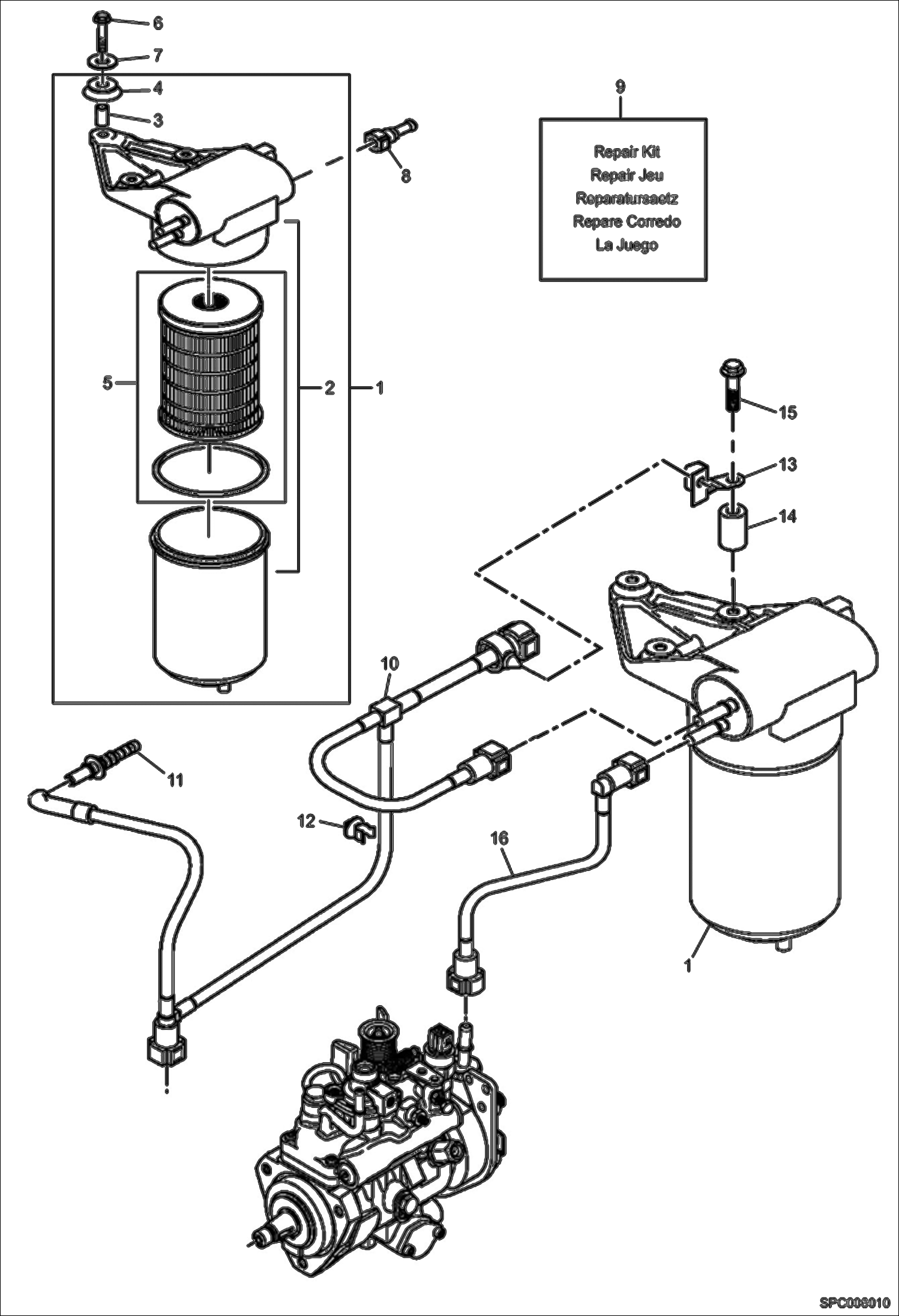

Запчасти Bobcat T2556 FUEL FEEDING POWER UNIT

1

6912158

PUMP, LIFT W/Ref. 2-5 Was 6912009

2

PUMP NSS - Order Ref. 1

3

SPACER NSS - Order Ref. 9

4

MOUNTING NSS - Order Ref. 9

5

6911907

FUEL FILTER ELEMENT KIT W/ O-ring

6

6911868

SCREW

7

6911863

WASHER

8

6911991

CONNECTION

9

6912023

MOUNTING KIT

10

6911903

FUEL FEED PIPE

11

6912039

CONNECTION Was 6911990

12

6911890

CLIP

13

6911987

BRACKET

14

6911943

SPACER

15

71335.4

Screw

16

6911902

FUEL FEED PIPE
