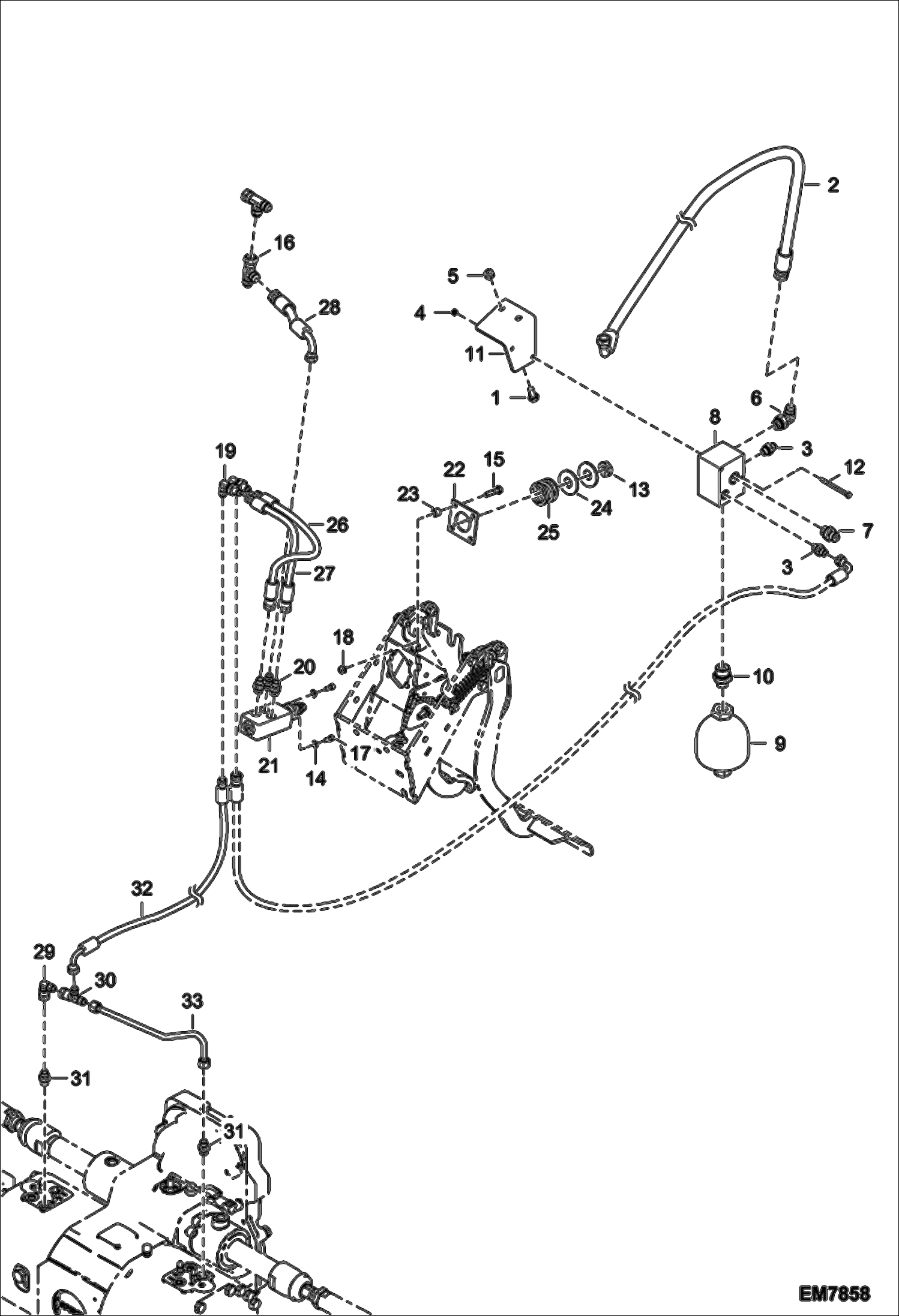

Запчасти Bobcat T2556 SERVICE BRAKE HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

1

01605.5

Screw

2

65717.1

Hose

3

90289.0

Union

4

100345-06W

NUT

5

100345-09A

NUT

6

7228465

FITTING, HYD ELBOW Was 100370-06P - A

7

100375-56M

UNION

8

6915372

SWITCH

9

6915584

ACCUMULATOR

10

6916630

ADAPTOR

11

6916647

SUPPORT

12

6916913

SCREW

13

000342-17S

NUT

14

000350-01U

WASHER

15

01578.4

Screw

16

008372-02C

UNION

17

15354.4

Screw

18

01681.6

Nut Was 51851.4 - B

19

67196.6

Elbow

20

90289.0

Union

21

90807.9

Brake Valve

22

96054.2

Spacer

23

96061.7

Spacer

24

96655.6

Washer

25

96656.4

Spring

26

98397.3

Hose

27

98397.3

Hose

28

6908595

HOSE

29

100370-29P

ELBOW PIECE

30

100372-06G

UNION

31

90289.0

Union Was 100375-17U - B

32

6915430

HOSE

33

6917567

HYDRAULIC PIPE
