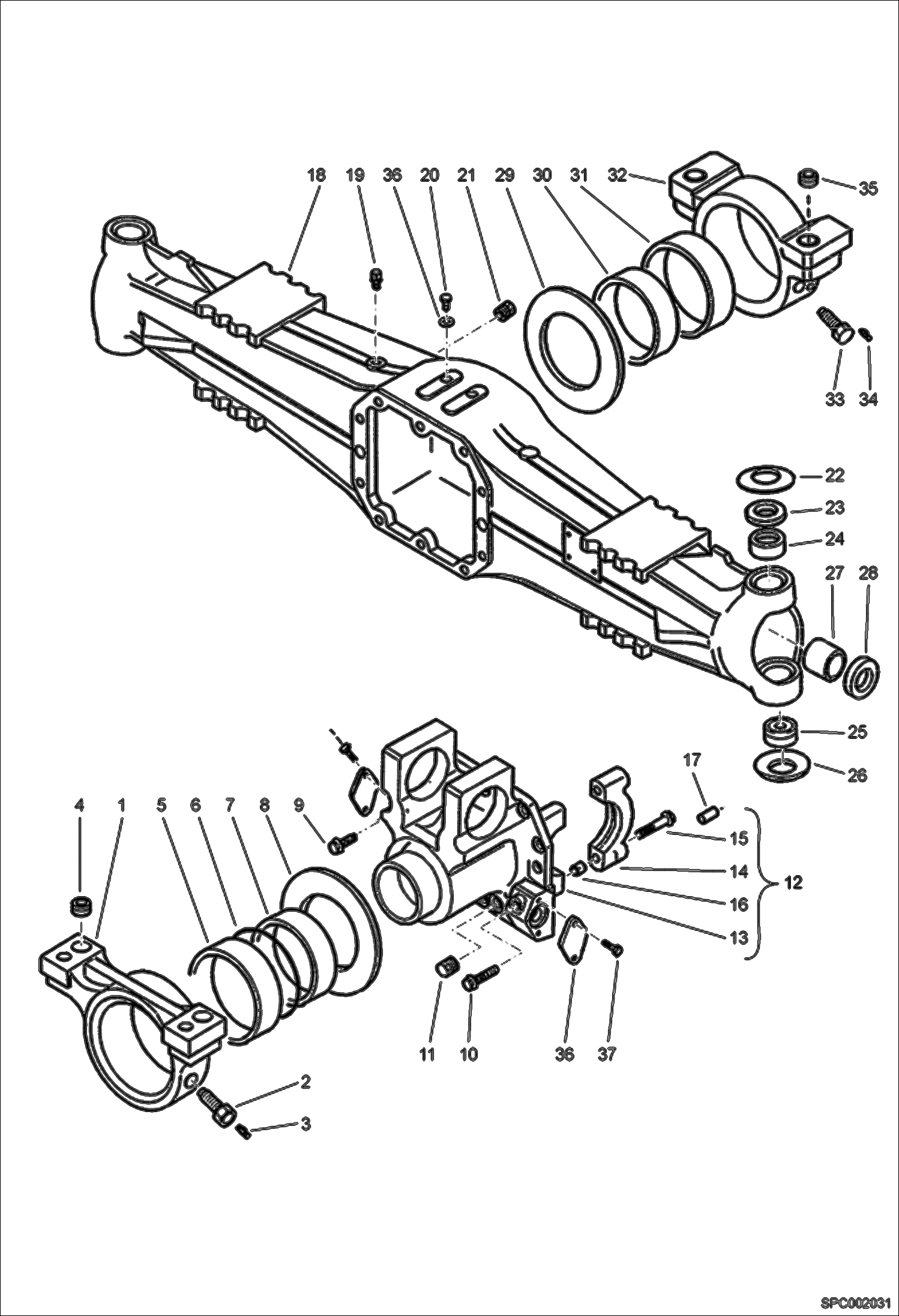

Запчасти Bobcat T2566 HOUSING - REAR AXLE DRIVE SYSTEM

1

64830.3

Support

2

64831.1

Screw

3

64823.8

Grease Nipple

4

64824.6

Sleeve

5

64828.7

Bushing

6

64829.5

O-ring

7

64827.9

Bushing

8

75739.3

Washer

9

100338-42A

SCREW

10

89885.8

Screw

11

100374-20P

PLUG

12

81544.9

Support W/Ref. 13-16

13

HOUSING, DIFFERENTIAL NAP - Order Ref. 12

14

CLAMP, DIFFERENTIAL CARRIER NAP - Order Ref. 12

15

89959.1

Screw

16

101288-10B

BUSHING

17

100273-25R

PIN

18

98658.8

Housing

19

75717.9

Breather

20

64842.8

Plug

21

100374-20P

PLUG

22

66011.8

Washer

23

71131.7

Washer

24

101288-35D

BUSHING

25

100400-19P

BUSHING

26

66010.0

Washer

27

100288-63N

BUSHING

28

98660.4

Bushing

29

75749.2

Washer

30

75748.4

Bushing

31

75747.6

Bushing

32

75746.8

Support

33

64822.0

Screw

34

64823.8

Grease Nipple

35

64822.0

Screw

36

89886.6

Bracket

37

1CM820

BOLT Was 01596.6 - B
