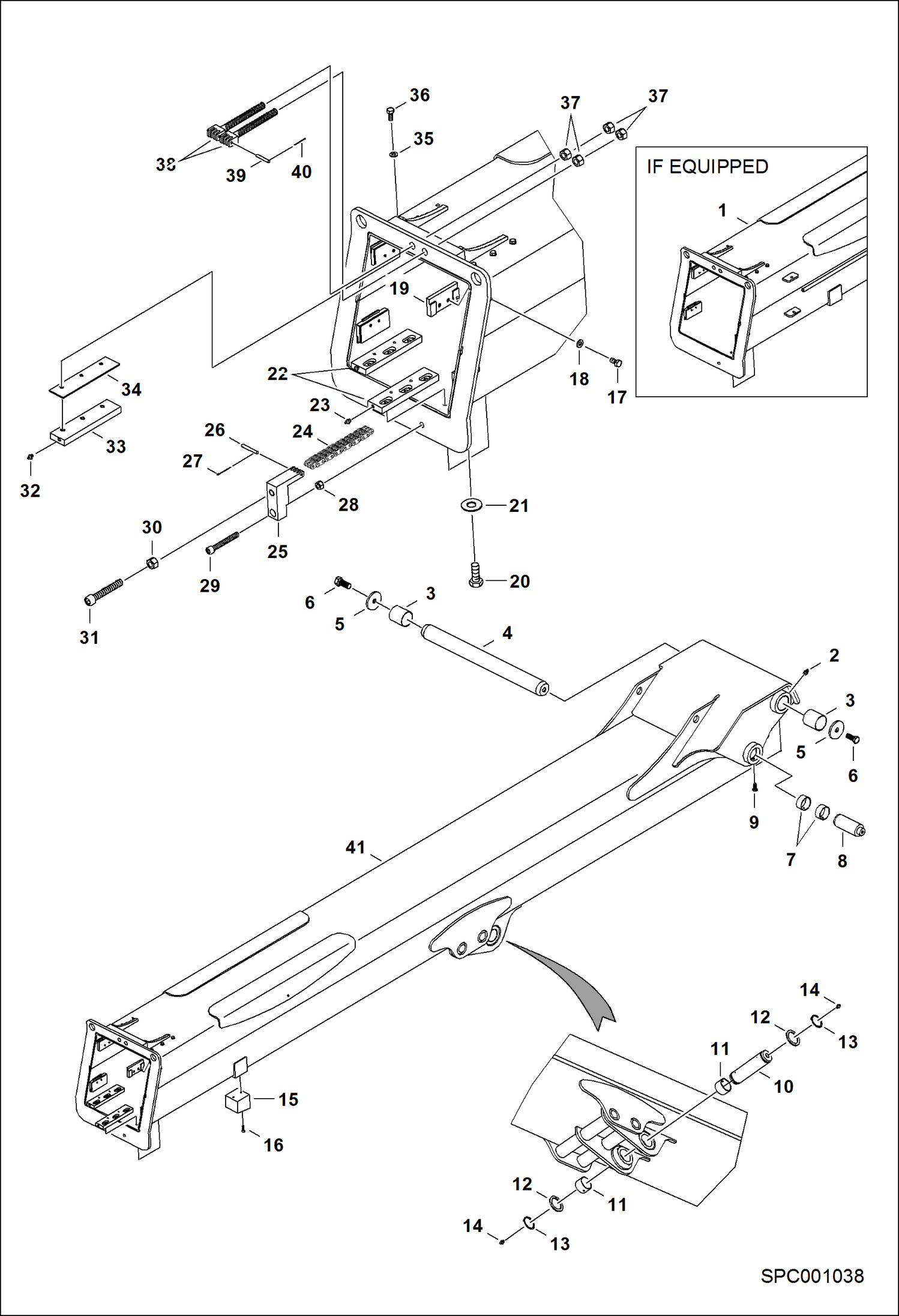

Запчасти Bobcat T35100 FIXED BOOM ASSY (S/N A8GT11001 & Above) MAIN FRAME

1

6908903

ARM W/Ref. 11

2

01775.6

Grease Nipple

3

7213359

BEARING, SWING Was 77380.4 - A

4

89328.9

Locating Pin

5

7214510

WASHER Was 77430.7 - A

6

44001.6

Screw

7

72883.2

Bush

8

6909153

SPINDLE

9

000329-42G

Screw Was 13399.1 - A

10

6909150

SPINDLE

11

7213158

LINK, BEARING Was 77261.6 - A

12

70287.8

Washer

13

70288.6

Clip

14

01775.6

Grease Nipple

15

6909222

SHOE

16

01634.5

Screw

17

1CM816

BOLT Was 01595.8 - A

18

01697.2

Washer

19

98344.5

Shoe 11 mm

19

98343.7

Shoe 12 mm

19

98342.9

Shoe 13 mm

19

98341.1

Shoe 14 mm

19

98340.3

Shoe 15 mm

20

1CM816

BOLT Was 01595.8 - A

21

01697.2

Washer

22

95501.3

Shoe

23

01775.6

Grease Nipple

24

6909225

CHAIN

25

7213334

HOLDER, CHAIN Was 95555.9 - A

26

7215018

PIN Was 95613.6 - A

27

38632.6

Pin

28

01670.9

Nut

29

7215491

SCREW Was 6911771 - A

30

01672.5

Nut

31

7215487

SCREW

32

01775.6

Grease Nipple

33

95501.3

Shoe

34

98300.7

Shim 1 mm

34

98301.5

Shim 2 mm

34

98302.3

Shim 3 mm

35

01697.2

Washer

36

1CM820

BOLT Was 01596.6 - B

37

01672.5

Nut

38

7213333

HOLDER, CHAIN Was 95553.4 - A

39

7215018

PIN Was 95613.6 - A

40

38632.6

Pin
