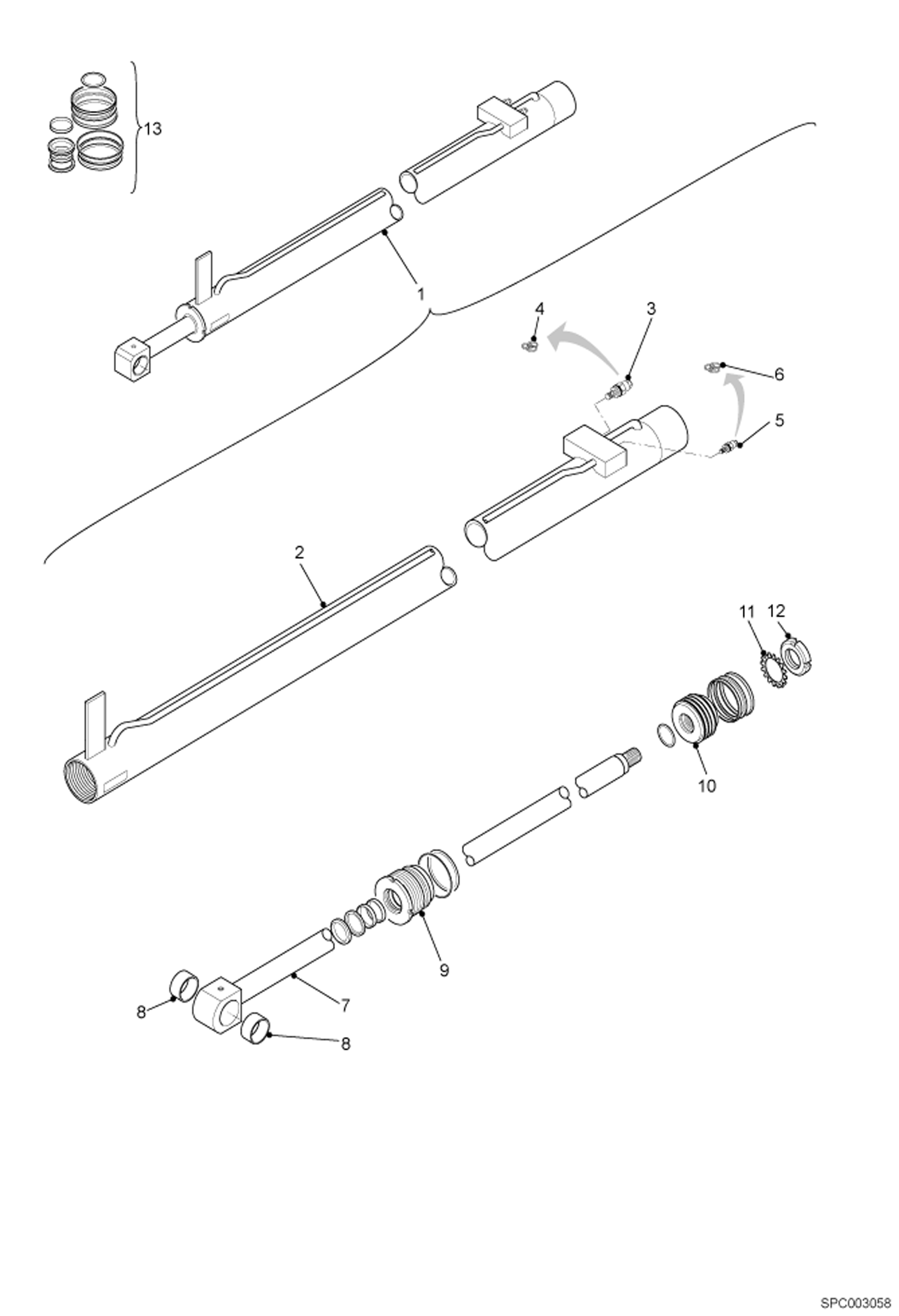

Запчасти Bobcat T3571L TELESCOPE CYLINDER (Vendor Partnumber 6913007) HYDRAULIC SYSTEM

1

CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ EM8430 NLA - W/Ref. 2-12 - Order 6927069 Was 6913007 - A

2

6909951

RAM CYLINDER

3

6909981

VALVE

4

100496-74K

SEAL KIT

5

6909980

VALVE

6

100496-04H

SEAL KIT

7

93972.8

Piston Rod

8

72347.8

Bushing

9

6909952

RAM HEAD

10

6909954

PISTON

11

00930.8

Washer

12

00939.9

Nut

13

6909947

SET OF SEALS
