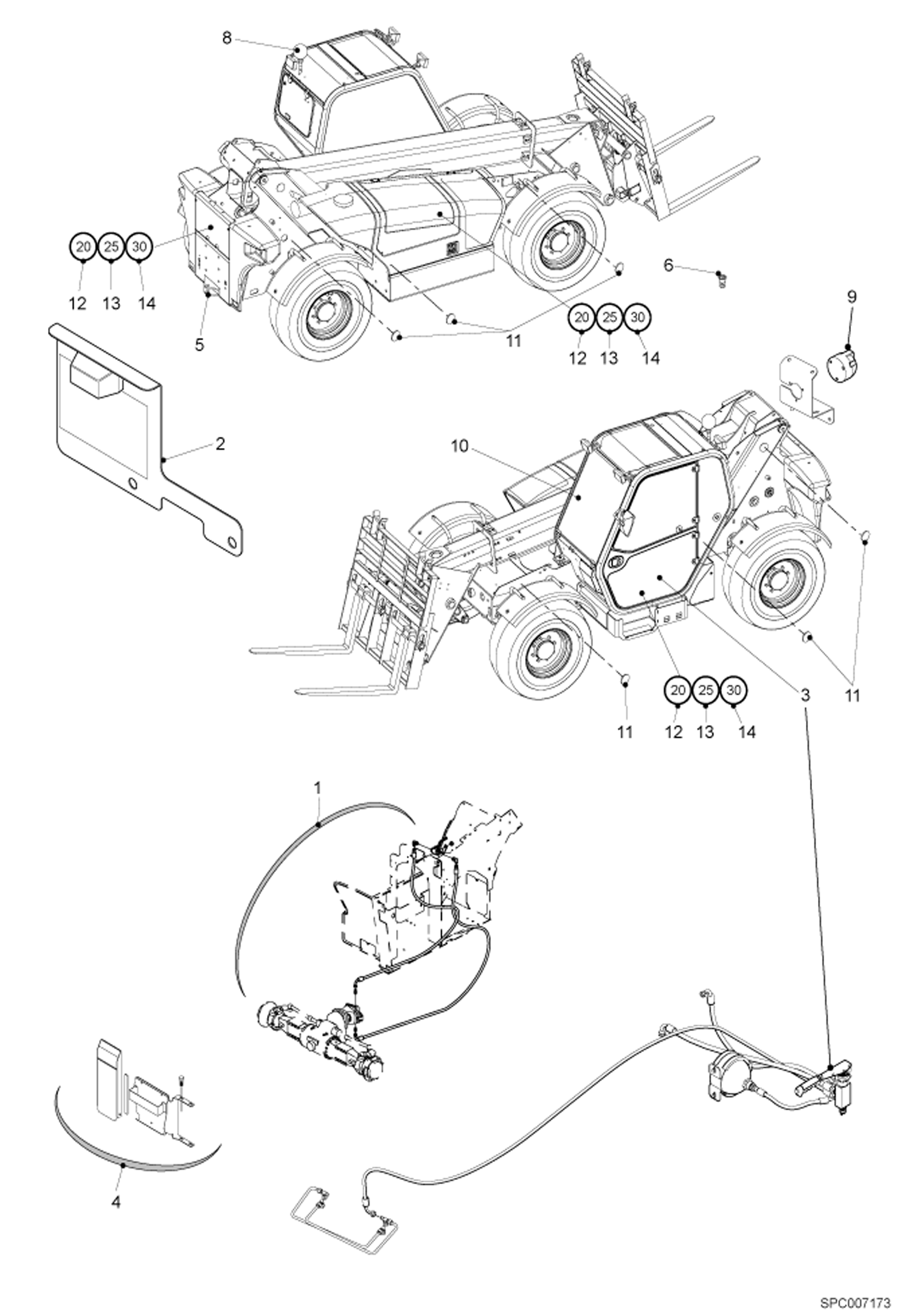

Запчасти Bobcat T3571L LOCAL LEGISLATION COMPLIANCE SET (Germany) ACCESSORIES & OPTIONS

1

TRANSMISSION BY-PASS (GERMANY) See Illustration TOW VALVE INSTALLATION/ SPC007058

2

MATRICULATION PLATE OPTION See Illustration MATRICULATION PLATE/ SPC007336 For 25-30 km/h version

3

PARKING BRAKE HYDRAULIC INSTALLATION (ACCUMULATOR) See Illustration PARKING BRAKE HYDRAULIC INSTALLATION/ SPC003150

4

WHEEL WEDGE OPTION See Illustration WHEEL WEDGE/ SPC007169

5

TOW HITCH See Illustration TOW HITCH/ SPC007062

6

SWITCH OPTION ON VALVE BRAKING See Illustration VALVE BRAKING SWITCH/ SPC007151

8

78817.4

Rotating Beacon Light

8

6925402

BULB

9

6910204

Trailer plug Optional See Illustration TRAILER PLUG/ SPC007091 For 25-30 km/h version

10

100475-97B

Decal - Boom road position indicator

11

100417-16J

Reflector

12

82019.1

Adhesive 20 km/h Was 90990.3

13

82020.9

Adhesive 25 km/h Was 84915.8

14

82021.7

Adhesive 30 km/h
