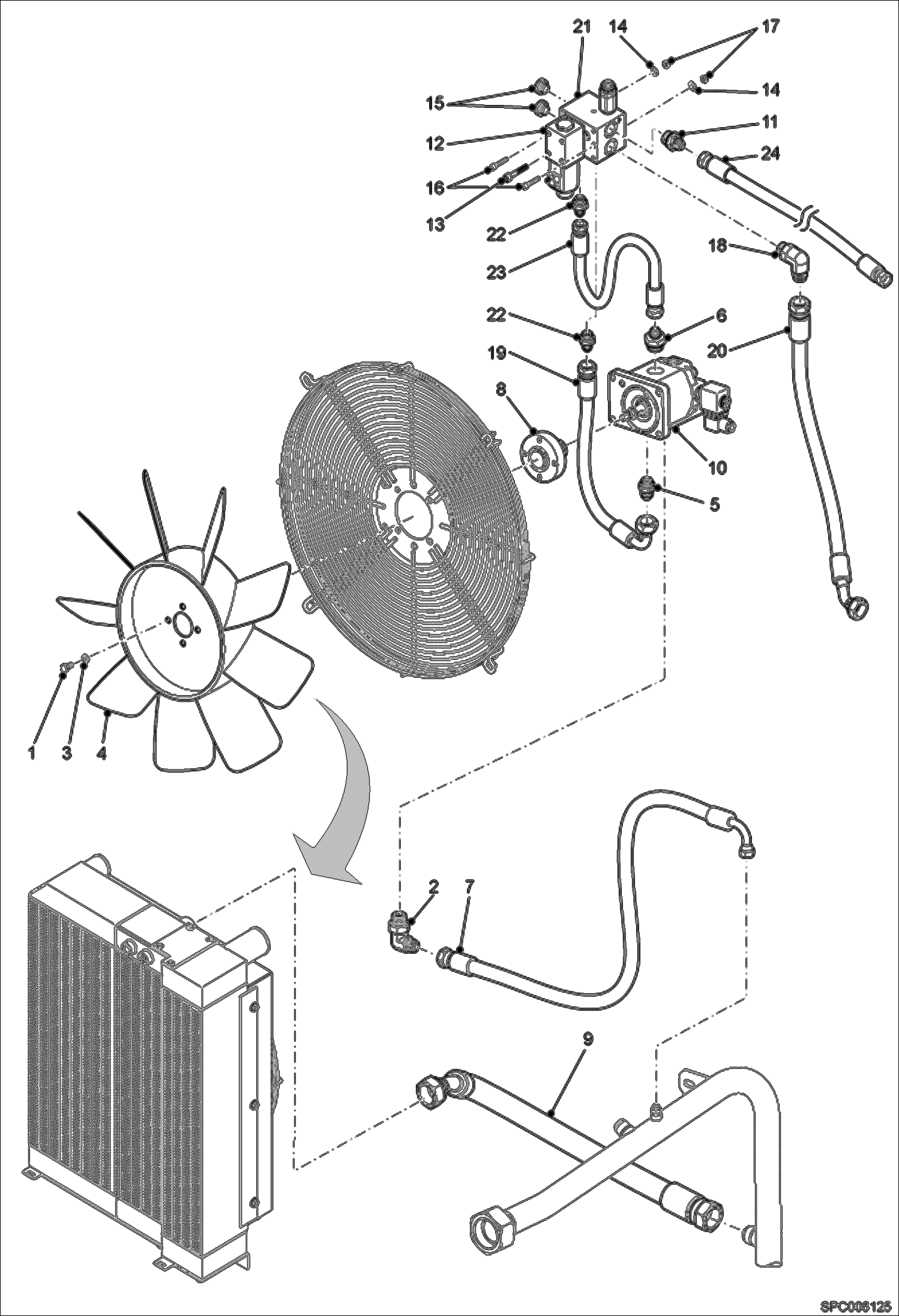

Запчасти Bobcat T40140 COOLING FAN CIRCUIT (W/ Optional Reverse) (1 Speed) POWER UNIT

1

1CM816

BOLT Was 01595.8 - A

2

010370-93A

ELBOW PIECE

3

89519.3

Washer

4

97915.3

Fan

5

100375-40U

UNION

6

100375-59Q

UNION 3/4 JIC 3/4 BSP

7

6910622

HOSE TJ3/4 9.5 TJ90 9/16 L800

8

6911798

FAN FLANGE

8

6927904

HUB, FAN

9

6913654

HOSE

9

6927903

HOSE

10

6916978

HYDRAULIC MOTOR See Illustration HYDRAULIC MOTOR/ SPC003181 1 speed

11

022375-04U

UNION

12

98355.1

Electro distributor W/Ref. 13

13

79160.8

Screw

14

01696.4

Washer

15

78743.2

Drain plug

16

98897.2

VIS

17

100345-05V

NUT

18

100370-05N

ELBOW UNION

19

6911028

HOSE

20

6928048

HOSE Was 6913654 - A

20

6928048

HOSE

21

6917718

PRESSURE SWITCH

22

100375-38S

UNION

23

6918314

HOSE

24

6920192

HOSE Was 65715.5 - A
