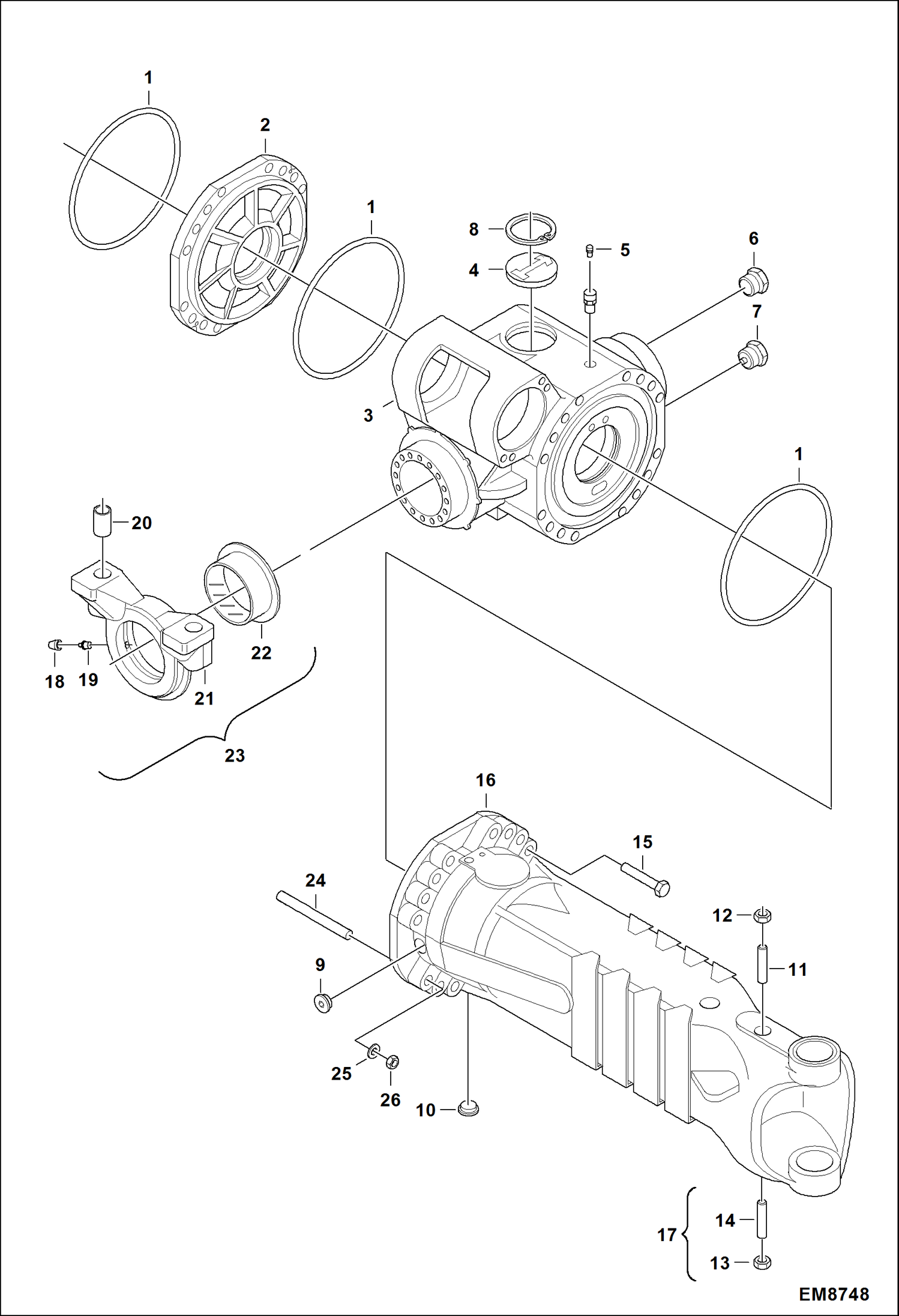

Запчасти Bobcat TL470 REAR AXLE (Housing) (B35C11001 & Above) DRIVE SYSTEM

1

6912715

O'RING

2

6912813

COVER

3

7017793

HOUSING

4

6912626

PLUG

5

7010887

VENT Was 6912732 - A

6

6912625

PLUG

7

6912787

PLUG

8

7JM90

SNAPRING Was 6646230 - B

9

6912625

PLUG

10

6912787

PLUG

11

6912892

SCREW

12

6912828

NUT

13

6912685

NUT

14

6912773

SCREW

15

7017797

BOLT

16

7017813

HOUSING, AXLE

17

6912774

SCREW Ref. 13-14

18

6912629

PLUG

19

6912700

LUBRICATOR

20

6912681

BUSH

21

6912879

SUPPORT

22

6912827

BUSH

23

6912880

SUPPORT Ref. 18-22

24

7017814

STUD

25

6912868

WASHER

26

6912829

NUT
