REAR AXLE (Brakes) (B35B11001 & Above)

Запчасти Bobcat TL470 REAR AXLE (Brakes) (B35B11001 & Above) DRIVE SYSTEM

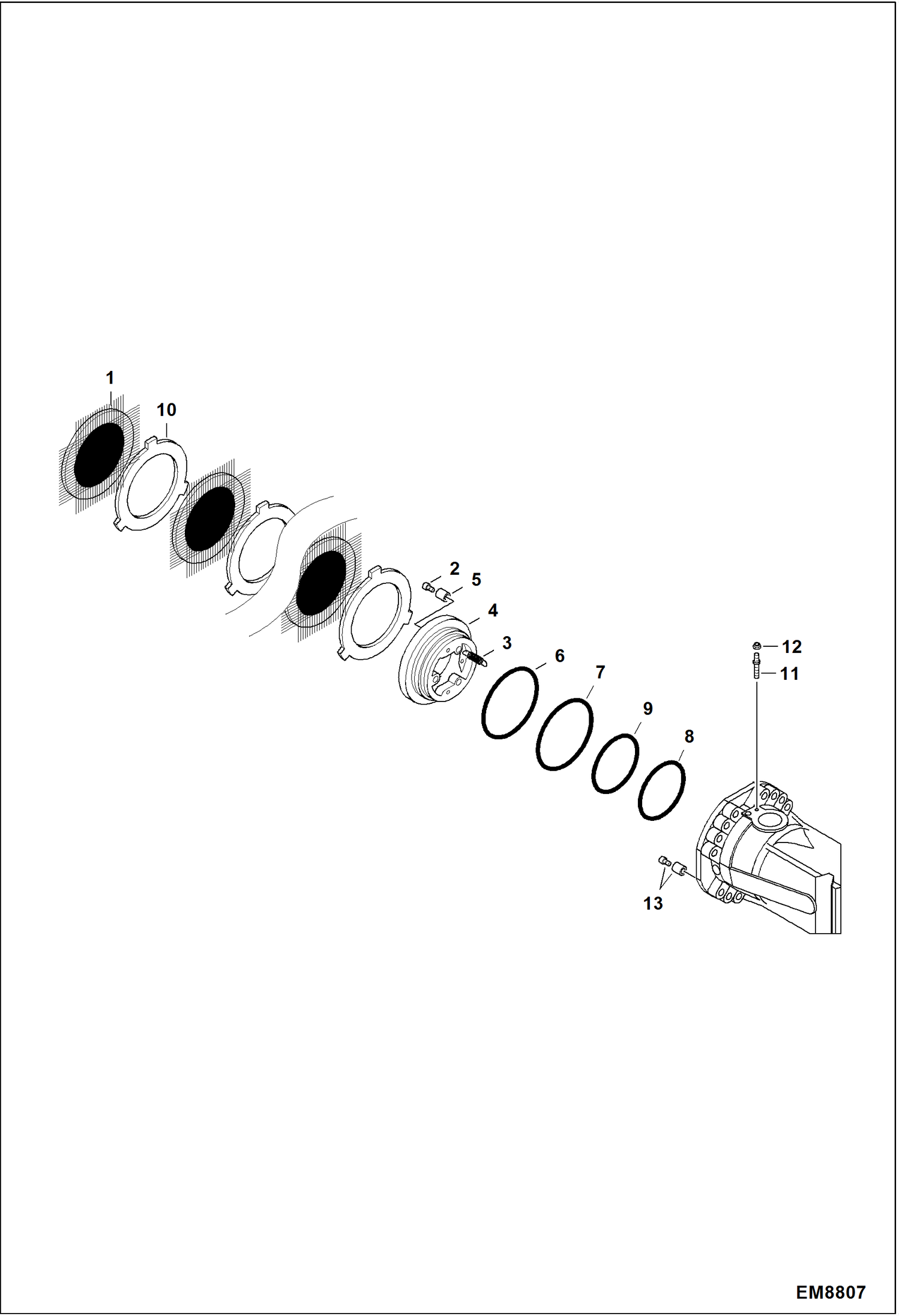

Схема запчастей Bobcat TL470 - REAR AXLE (Brakes) (B35B11001 & Above) DRIVE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6912823

BRAKE DISC

2

7017801

BOLT, ADJUSTING

3

6912864

SPRING

4

7017802

PISTON

5

7017803

SPRING

6

7017804

RING, BACK-UP

7

7017805

O-RING

8

7017806

RING, BACK-UP

9

7017807

O-RING

10

6912915

INTERMEDIATE DISC

11

6912775

SCREW

12

6912629

PLUG

13

7017808

PIN

14

7017809

KIT, PISTON ASSY Ref. 3, 4 & 6-9
