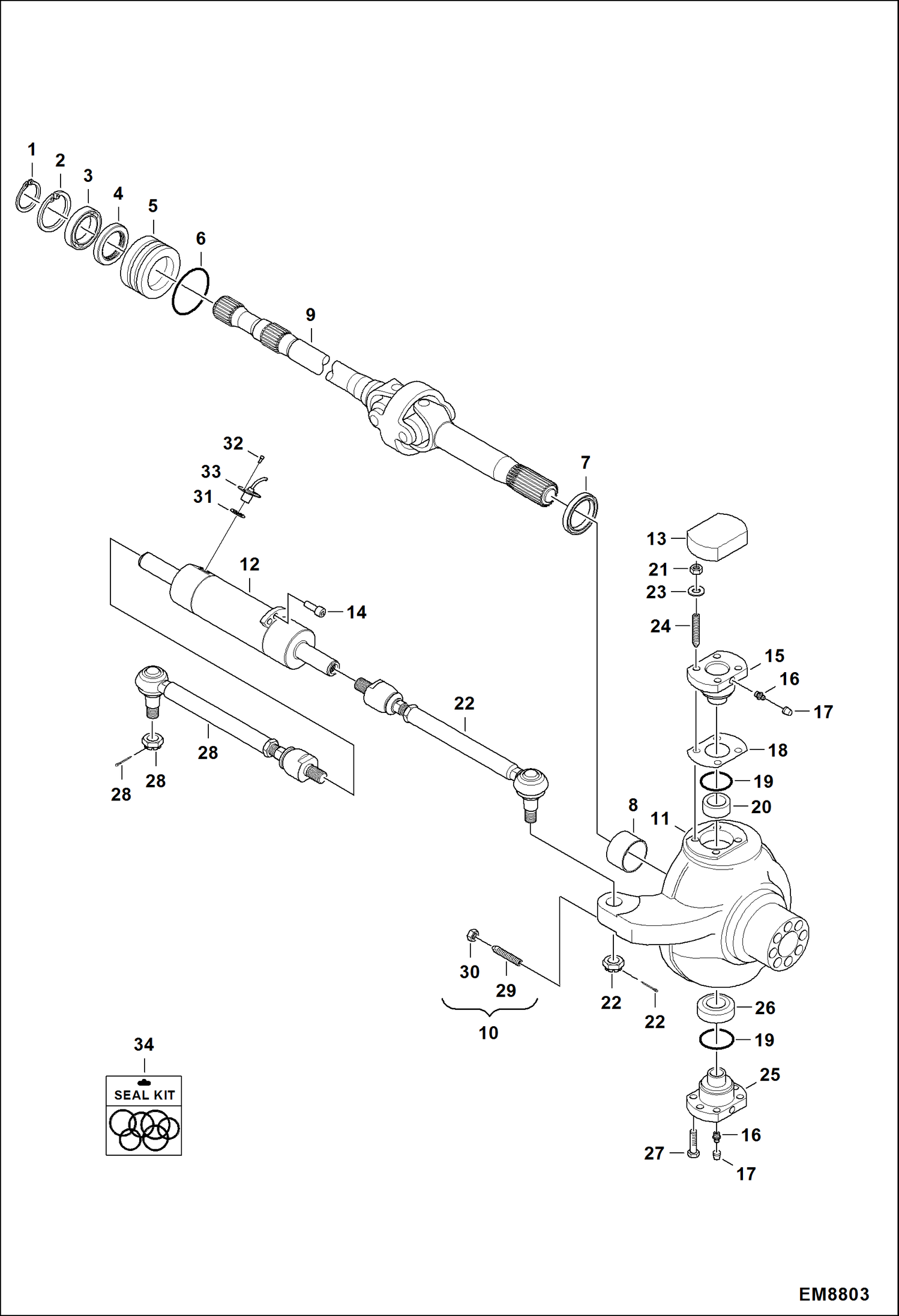

Запчасти Bobcat TL470 REAR AXLE (Steering) DRIVE SYSTEM

1

6912808

SNAP RING

2

7JM90

SNAPRING

3

6912871

BEARING

4

6912848

SEAL

5

6912825

BUSH W/Ref. 1-4 & 6

6

6912853

O'RING

7

6912847

SEAL

8

6912826

BUSH

9

7017798

DOUBLE JOINT

10

6912818

Optical sensor Ref. 32-34

11

7017800

CASE, STEERING RH - W/Ref. 8

11

7017799

CASE, STEERING LH - W/Ref. 8

12

7017811

CYLINDER

13

6912816

COVER

14

6912890

SCREW

15

6912941

PIVOT W/Ref. 16-17

16

6912700

LUBRICATOR

17

6912629

PLUG

18

6912802

SHIM 0,15MM 0,15 mm

18

6912803

SHIM 0,20MM 0,20 mm

18

6912804

SHIM 0,50MM 0,50 mm

19

6912845

SEAL

20

6921515

BUSHING

21

6912684

NUT

22

7023718

ROD ARTICULATED LH Was 7003688 - A

23

6912736

WASHER

24

7010888

STUD Was 6912696 - B

25

6912859

PIVOT W/Ref. 26 & 19

26

6912778

CONNECTION

27

6912893

SCREW

28

7023717

ROD ARTICULATED RH Was 7003689 - A

29

6912773

SCREW

30

6912685

NUT

31

6912774

SCREW Ref. 29-30

32

6912766

SCREW

33

7017810

SENSOR

34

SEAL NLA - Order Ref. 10

35

6912977

KIT, SEAL
