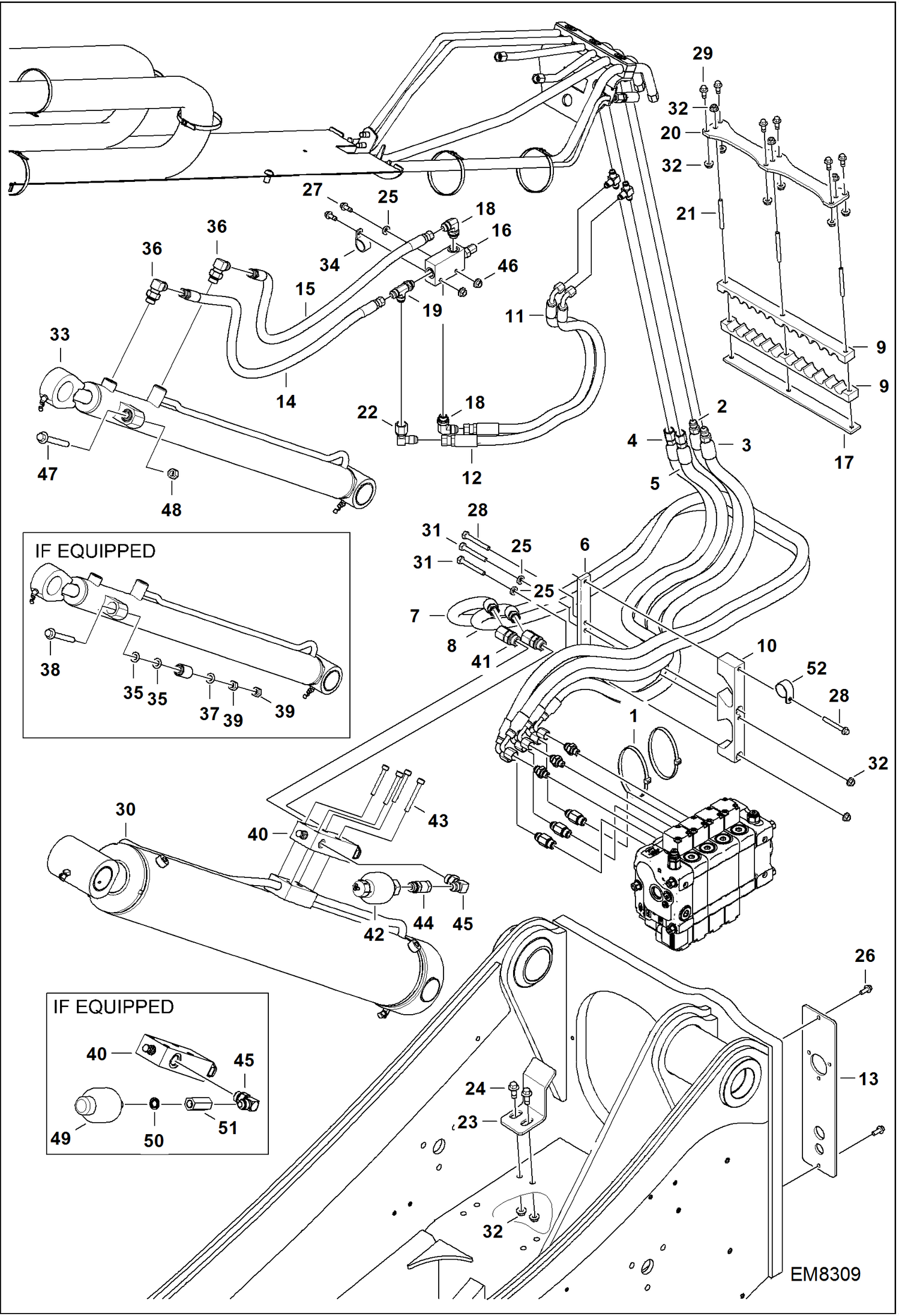

Запчасти Bobcat TL470 HYDRAULIC CIRCUITRY (Boom & Cylinders) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

7156110

HOSE, HYD

3

7156121

HOSE, HYD

4

7156189

HOSE, HYD

5

7156190

HOSE, HYD

6

7161392

PLATE

7

7161455

HOSE, HYD

8

7226744

HOSE, HYD Was 7161755 - B

9

7161770

CLAMP

10

7161771

CLAMP

11

7163808

HOSE, HYD

12

7163809

HOSE, HYD

13

7234634

PLATE Was 7167141-GB - A

14

7168641

HOSE, HYD

15

7168642

HOSE, HYD

16

7168745

VALVE, SELF LEVELLING

17

7169265

PLATE

18

7171302

FITTING, HYD ELBOW

19

7171303

FITTING, HYD TEE

20

7173626

PLATE

21

7174163

ROD, THREADED

22

11K6

UNION

23

7199898

PLATE

24

27CM830

BOLT

25

1EM80

WASHER

26

29CM835

BOLT

27

29CM850

SCREW

28

29CM860

BOLT

29

29CM880

BOLT

30

7163242

CYLINDER, LIFT See Illustration LIFT CYLINDER/ EM8668

31

4CM890

BOLT

32

51DM8

NUT

33

7229365

CYLINDER, SELF LEVEL See Illustration SELF LEVELING CYLINDER/ EM8667 Was 7163245 - A

34

30H94

COLLAR

35

7190105

SPACER

36

17KB0808

FITTING, HYD ELBOW 90 degrees

36

79K8

O RING 10

37

1EM120

WASHER

38

29CM1280

SCREW

39

53DM12

NUT

40

7202915

VALVE, COUNTERBALANCE

41

18KB1010

FITTING, HYD ELBOW

41

79K10

O RING 10

42

7202916

ACCUMULATOR, HYD

43

6GM850

SCREW

44

7206137

FITTING, HYD

45

17KB0808

FITTING, HYD ELBOW 90 degrees

45

79K8

O RING 10

46

43DM8

NUT
