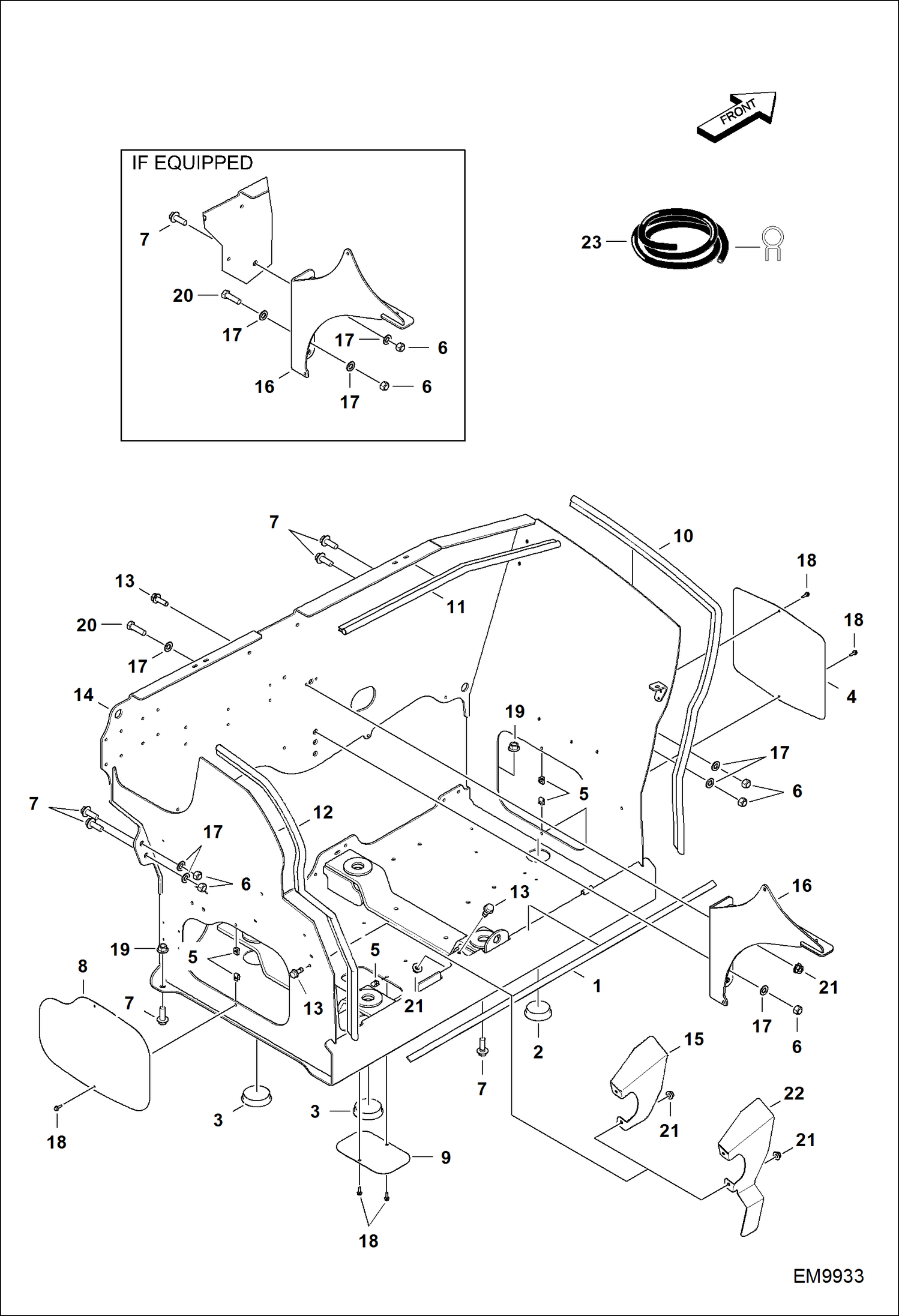

Запчасти Bobcat TL470HF ENGINE BASKET & HOOD MAIN FRAME

1

7165015

BUMPER, FOAM

2

7175519

PLUG

3

7175520

PLUG

4

7192658-GB

PLATE, COVER FRONT

5

7192660

NUT, CLIP

6

7202845

NUT

7

7202846

BOLT

8

7223463-GB

COVER, REAR

9

7230423

COVER, BOTTOM

10

SEAL NLA - 1535 mm (60.4'') long - Order Ref. 32

11

SEAL NLA - 980 mm (38.6'') long - Order Ref. 32

12

SEAL NLA - 1355 mm (53.35'') long - Order Ref. 32

13

29CM825

BOLT

14

7233899-GB

BASKET, ENGINE

15

7234353

COVER, ALTERNATOR

16

7234078

HOLDER, COOLER

17

18EM1632

WASHER, HARDENED

18

29CM620

SCREW

19

51DM16

NUT

20

7CM1655

SCREW

21

7221410

SPRING, GAS

22

7231111

HOOD, ENGINE W/Ref. 25-29

23

23GM825

SCREW

24

51DM8

NUT

25

7231112

FOAM

26

7165321

HINGE

27

7231425

BRACE, HOLDER

28

7233659

LOCK ASSY See Illustration LOCK ASSY/ EM9977

28

7203341

KEY IGNITION

29

23GM820

BOLT

30

7165319

CAP, AIR RAIN

31

51DM8

NUT

32

7194632

SEAL bulk - sold per foot
