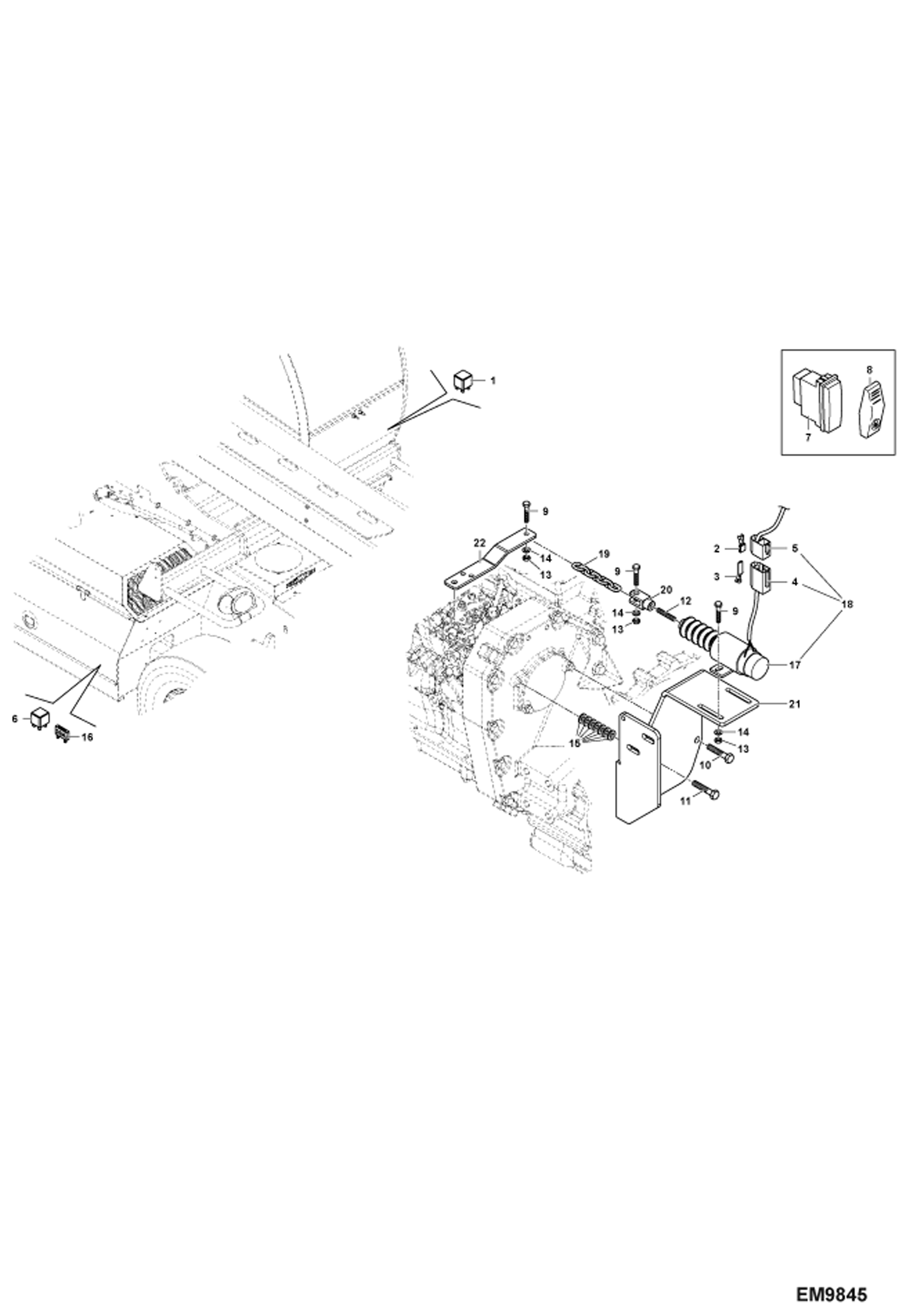

Запчасти Bobcat TR38160 2 SPEED ACCELERATOR ACCESSORIES & OPTIONS

1

7026938

RELAY

2

7026697

UNIT, CONNECTING

3

7026698

UNIT, CONNECTING

4

7026677

CONNECTOR

5

7026678

CONNECTOR

6

7019499

RELAY

7

7014100

SWITCH

8

7014115

BUTTON, W/WARNING LIGHT

9

7014532

SCREW

10

BOLT NLA Was 7014536 - A

11

7014537

SCREW

12

7026957

DOWEL

13

7018059

NUT

14

7018325

WASHER

15

7018061

WASHER

16

7026763

FUSE 30A

17

ELECTROMAGNET NSS - Order Ref. 18 Was 7026737 - D

18

7026737

ELETTROSTART W/Ref. 2-5 & 17

19

7026670

CHAIN

20

7018227

YOKE

21

7027020

SUPPORT

22

7026917

PLATE
