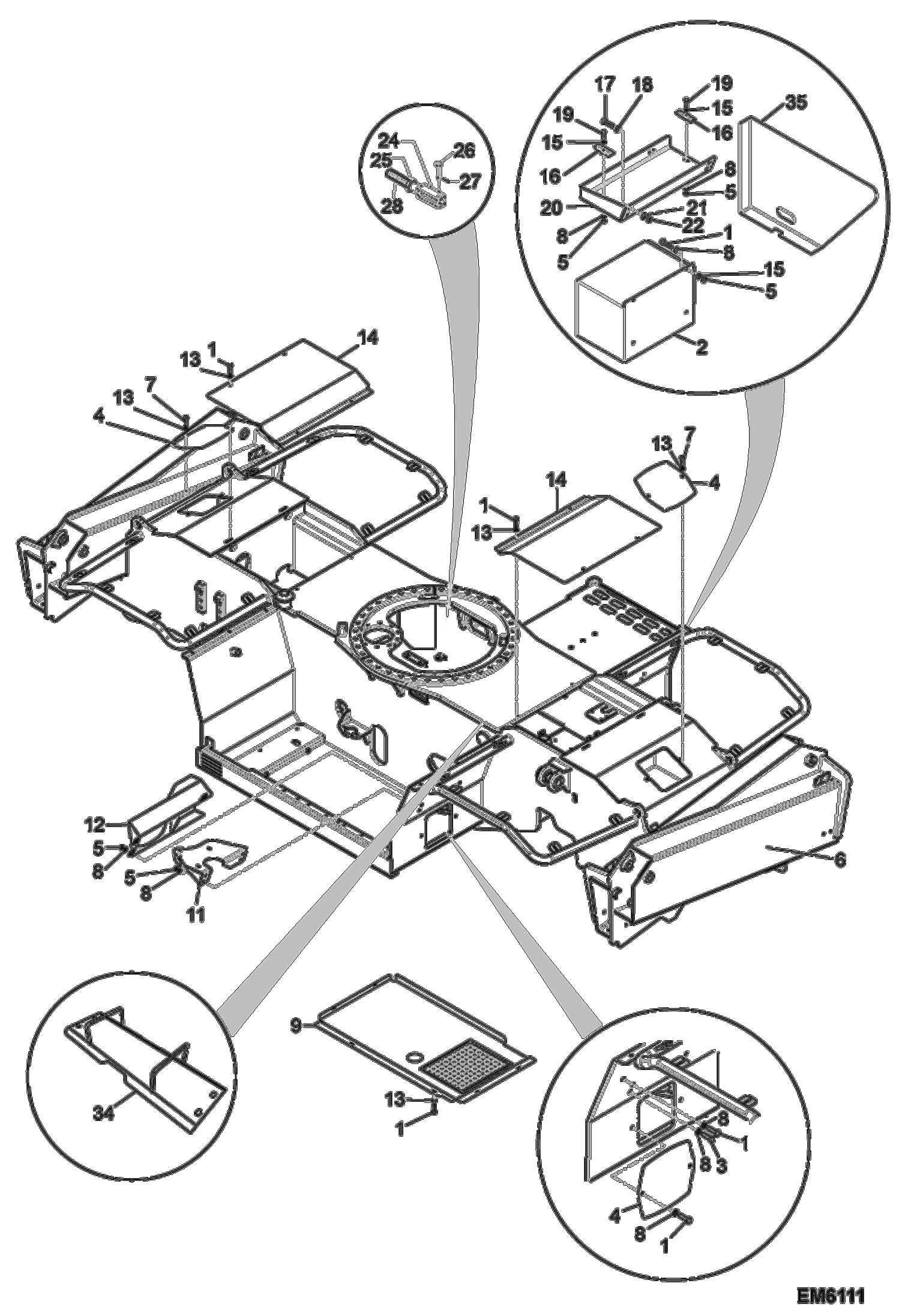

Запчасти Bobcat TR50210 HOUSING & SUPPORTS (Standard Frame) UNDERCARRIAGE

1

7014535

SCREW

2

7019761

HOUSING Was 7014580 - C

3

BOLT NLA Was 7014536 - A

4

7020151

HOUSING Was 7015012 - B

5

NUT, SELF LOCKING NLA Was 7014561 - A

6

7021458

FRAME Was 7014570 - B

7

7014534

SCREW

8

7018162

WASHER

9

7019759

HOUSING Was 7014578 - B

11

7021481

SUPPORT Was 7014611 - B

12

7021482

COUPLER, AIR FILTER Was 7014613 - B

13

7014564

WASHER

14

7021590

HOUSING Was 7015033 - B

15

7018061

WASHER

16

7014650

STOP

17

7014535

SCREW

18

7018061

WASHER

19

7014537

SCREW

20

7020162

SUPPORT Was 7015023 - B

21

7018287

WASHER

22

NUT, SELF LOCKING NLA Was 7014561 - A

24

7015004

YOKE

25

7019729

NUT

26

7020140

PIN

27

7014988

PIN, COTTER

28

7014569

PIN

34

7021480

SUPPORT Was 7014608 - B

35

7020165

HOUSING
