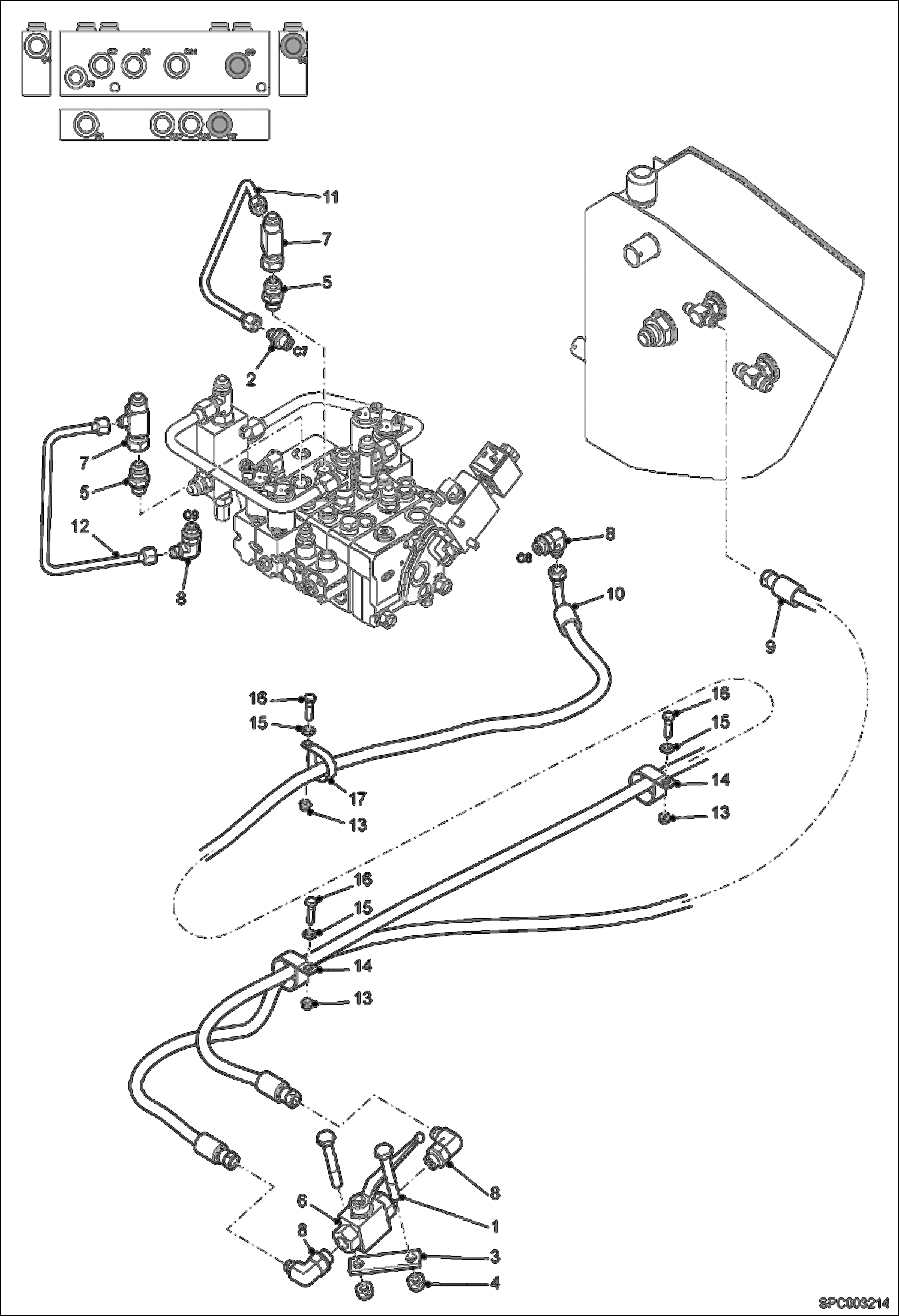

Запчасти Bobcat V417 HYDRAULIC CIRCUITRY (Unlock Valve) (S/N AC1C11001 - 11238, AC1D11001 - 11999) HYDRAULIC SYSTEM

1

01522-2

SCREW

2

77013-1

UNION

3

77014-9

PLATE

4

100345-09A

NUT

5

100375-39T

UNION 7/8 JIC 3/8 BSP

6

100378-03F

SHUTOFF auxiliary pressure release

7

6535460

TEE

8

6918652

ELBOW UNION

9

6920566

HOSE

10

6921410

HOSE

11

6922422

PIPE

12

6922423

PIPE

13

01681-6

NUT Was 51851-4 - B

14

30H82

CLAMP INSULATED

15

01718-6

WASHER

16

01598-2

SCREW

17

30H94

COLLAR
