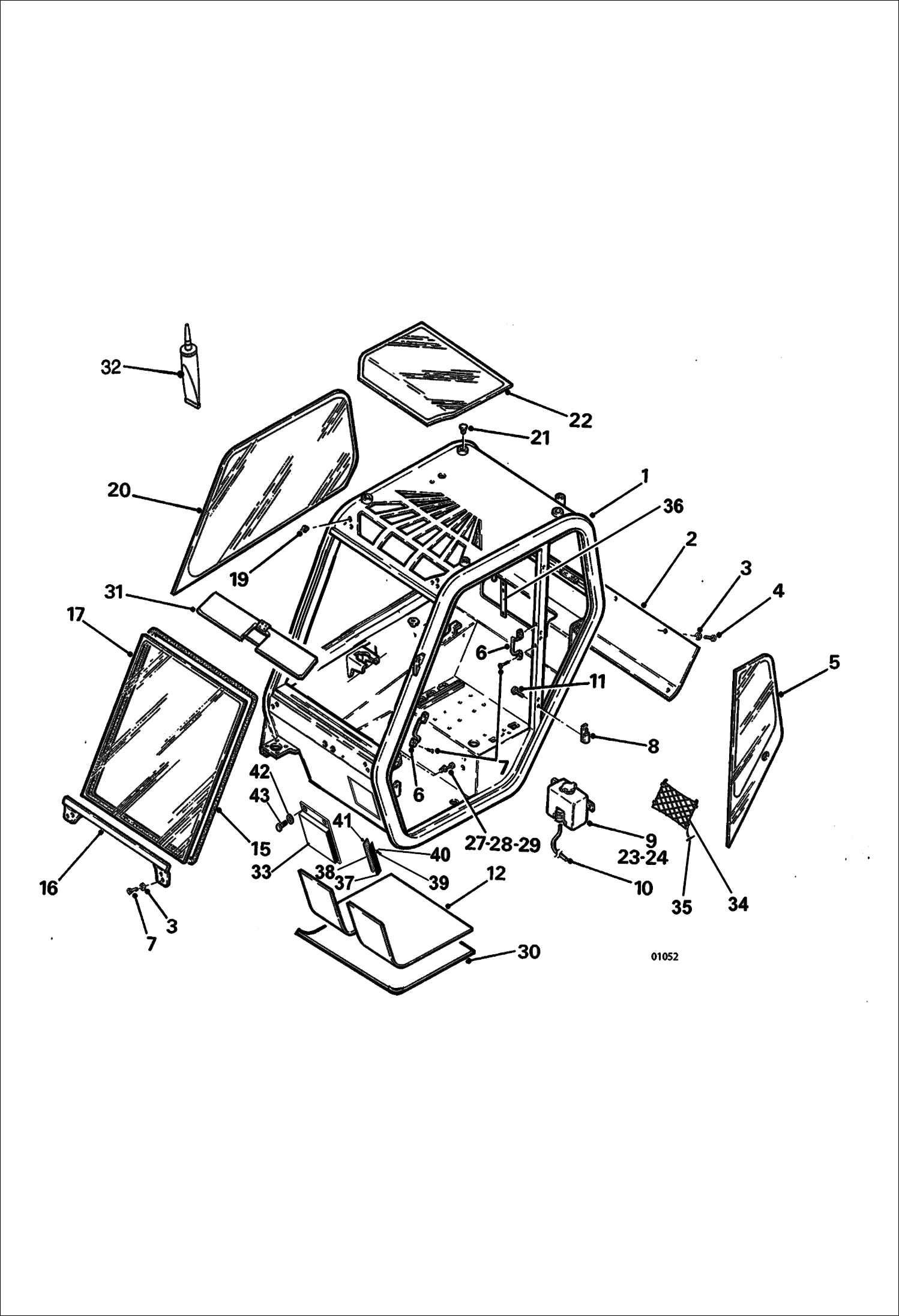

Запчасти Bobcat V518 CAB - SKELETON 367011001-12517 CHASSIS

1

96088-0

CAB

2

96074-0

SUPPORT

3

01696-4

WASHER

4

75948-0

SCREW

5

75913-4

GLASS

6

63349-5

HANDLE

7

75948-0

SCREW

8

75904-3

HINGE

9

97196-0

CAN Was 75897-9 - A

9

6925355

CAP

10

75941-5

HOSE

11

75949-8

SCREW

12

97088-9

MAT (TOP)

15

75944-9

SEAL

16

75938-1

SUPPORT

17

75925-8

WINDSCREEN Also order 6809610

19

75927-4

GUIDE

20

75914-2

GLASS Also order 6809613, 6809621 & 6809617

21

75901-9

PLUG

22

75911-8

GLASS

23

71816-3

SCREW Was 75950-6 - A

24

01695-6

WASHER

27

75909-2

CATCH

28

01699-8

WASHER

29

01670-9

NUT

30

97089-7

MAT (BOTTOM)

31

79902-3

SUNSHADE

32

64509-3

GLUE

33

97307-3

GRILL ASMBLY W/ Ref. 38-41

34

75883-9

NET

35

43824-2

RIVET

36

88830-5

PLATE

37

97128-3

SCREEN

38

97309-9

FORM

39

97093-9

SCREW

40

29272-2

WASHER

41

100345-06W

NUT

42

01696-4

WASHER

43

97308-1

SCREW
