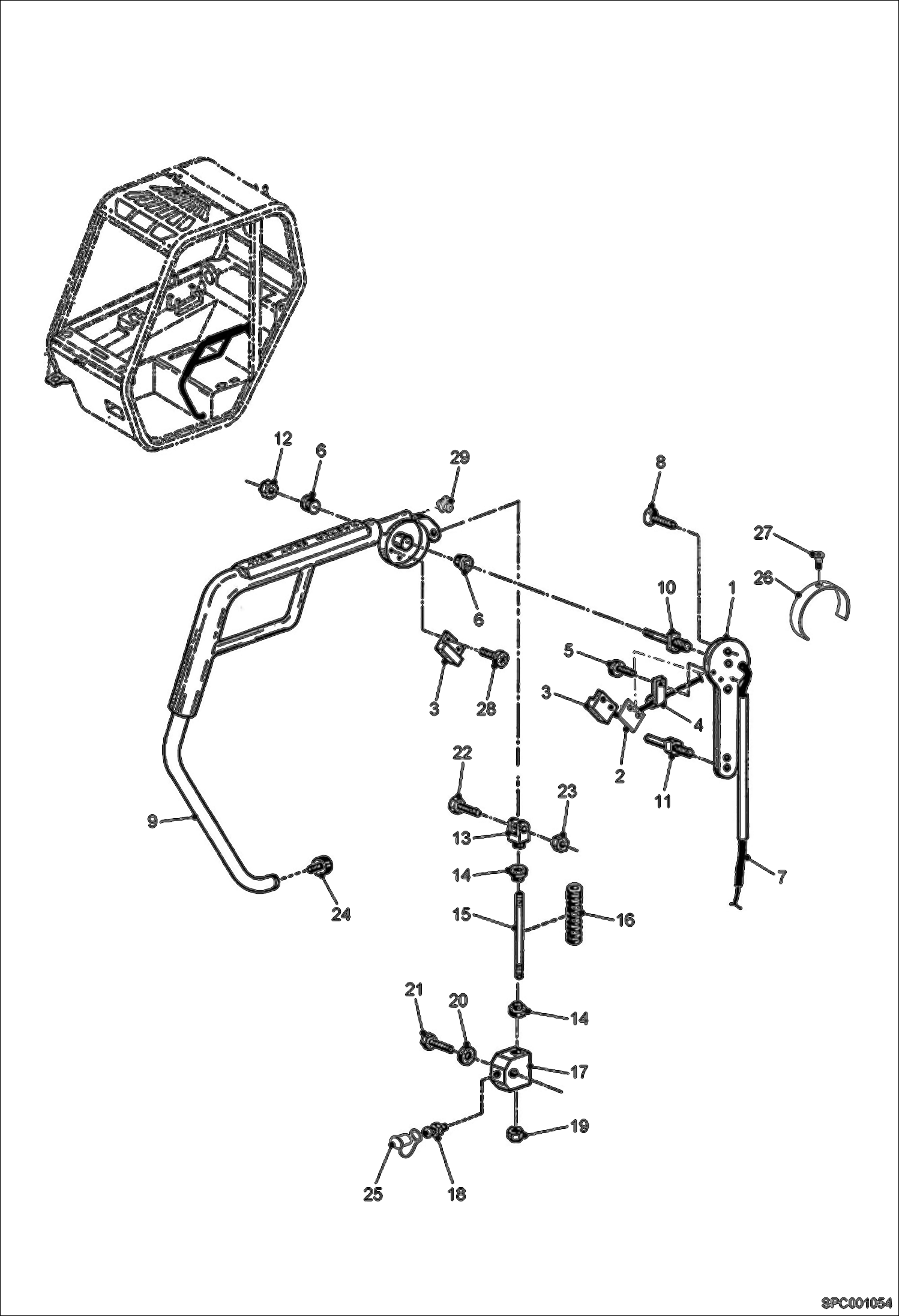

Запчасти Bobcat V723 RESTRAINT BAR (A8HK11001 & Above) MAIN FRAME

1

6909978

BRACKET , ''LORS''(R)

2

SPACER 1 mm - NLA Was 6917961 - D

2

SPACER 0,5 mm - NLA Was 6917962 - D

3

6909372

SENSOR , LORS ,HALL EFFECT ,

4

6909917

COLLAR

5

6909999

SCREW , SELF TAPPING 5X12

6

6909918

RING , GUIDE

7

SHEATH PROTECTOR NSS

8

6909989

SCREW , FHC M10X30

9

6909785

SAFETY ARM , ''LORS'' (R)

10

6908120

SHAFT , UPPER

11

6908121

SHAFT , LOWER

12

100345-13E

LOCK NUT , M14

13

30859-3

CLEVIS

14

98259-5

SPACER

15

6908187

ROD

16

98260-3

SPRING , RETURN

17

98264-5

BLOCK , ROD GUIDE

18

01775-6

GREASE NIPPLE

19

100345-09A

NUT

20

000350-20Q

WASHER

21

1CM820

BOLT Was 01596-6 - B

22

01607-1

SCREW

23

100345-09A

NUT

24

6909936

STOP

25

CAP NSS

26

6909782

DUST SCREEN

27

6909959

RIVET 4,8X8

28

6909990

SCREW

29

7236335

CAP Was 79297-8 - A
