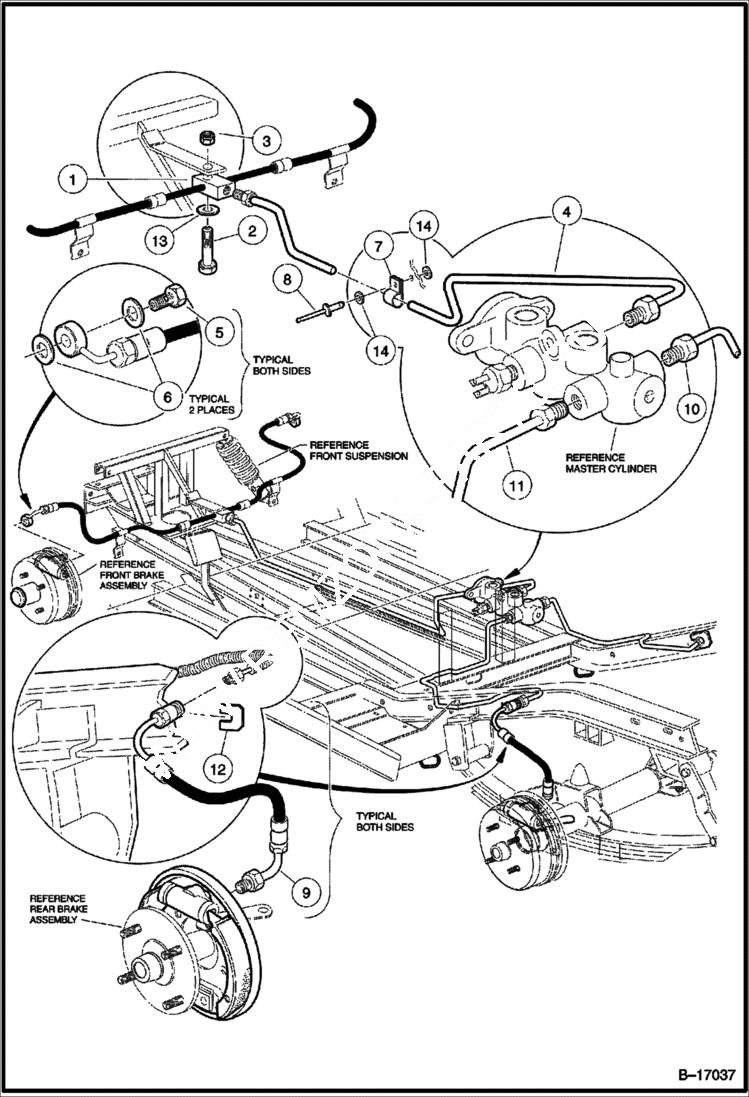

Запчасти Bobcat 2100 HYDRAULIC BRAKE SYSTEM CHASSIS

1

102032801CC

HOSE front brake

2

7479CC

SCREW

3

8233CC

NUT

4

102032901CC

TUBELINE front brake

5

102044401CC

BOLT

6

102045501CC

WASHER

7

102045801CC

CLAMP

8

1014136CC

RIVET

9

102033101CC

HOSE rear brake

10

102033001CC

TUBELINE rear brake - passenger side

11

103471001CC

REAR BRAKE LINE, HYD rear brake - driver side - Was 102044001CC - A

12

102045701CC

CLIP

13

1014007CC

WASHER

14

183CC

WASHER
