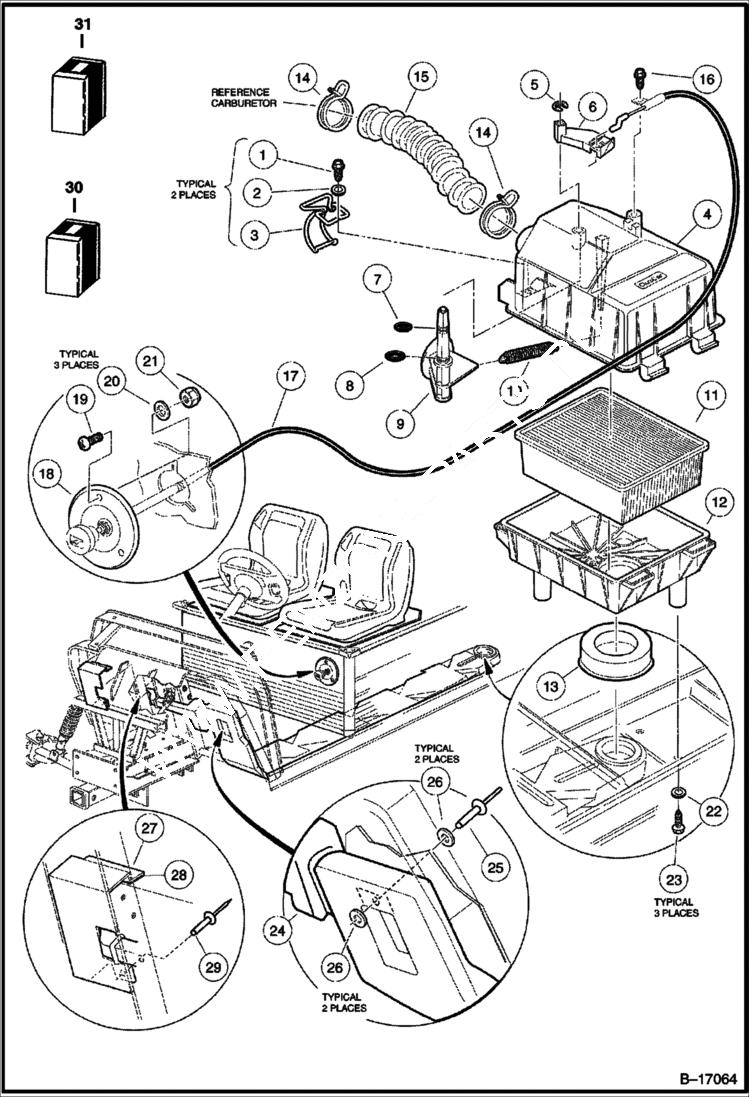

Запчасти Bobcat 2100 INTAKE DUCT, CHOKE & AIR BOX ASSEMBLY POWER UNIT

1

101804301CC

SCREW

2

101881701CC

WASHER

3

101925701CC

LATCH

4

101972801CC

AIR BOX ASSY top - W/Ref. 5-10

5

101813001CC

E-CLIP

6

101917601CC

LEVER choke

7

O-RING NSS

8

O-RING NSS

9

VALVE NSS - choke

10

101812301CC

SPRING return

11

1015426CC

AIR FILTER

12

101811901CC

AIR BOX bottom

13

101921501CC

SEAL intake

14

101971301CC

CLAMP

15

101837101CC

HOSE intake

16

101804301CC

SCREW

17

101926801CC

CABLE choke

18

BEZEL NLA - choke cable - Was 101933701CC - A

19

1631CC

SCREW

20

183CC

WASHER

21

1012438CC

NUT

22

332CC

WASHER

23

1015752CC

SCREW

24

101958102CC

AIR DUCT

25

1606CC

RIVET

26

183CC

WASHER

27

SHIELD NLA - air duct - Order 102190702CC kit - Was 102195201 CC - A

28

TAPE NSS

29

7973CC

RIVET

30

101821501CC

AIR BOX assembly - Ref. 1-13

31

102190702CC

KIT air duct repair - includes Ref. 27-29
