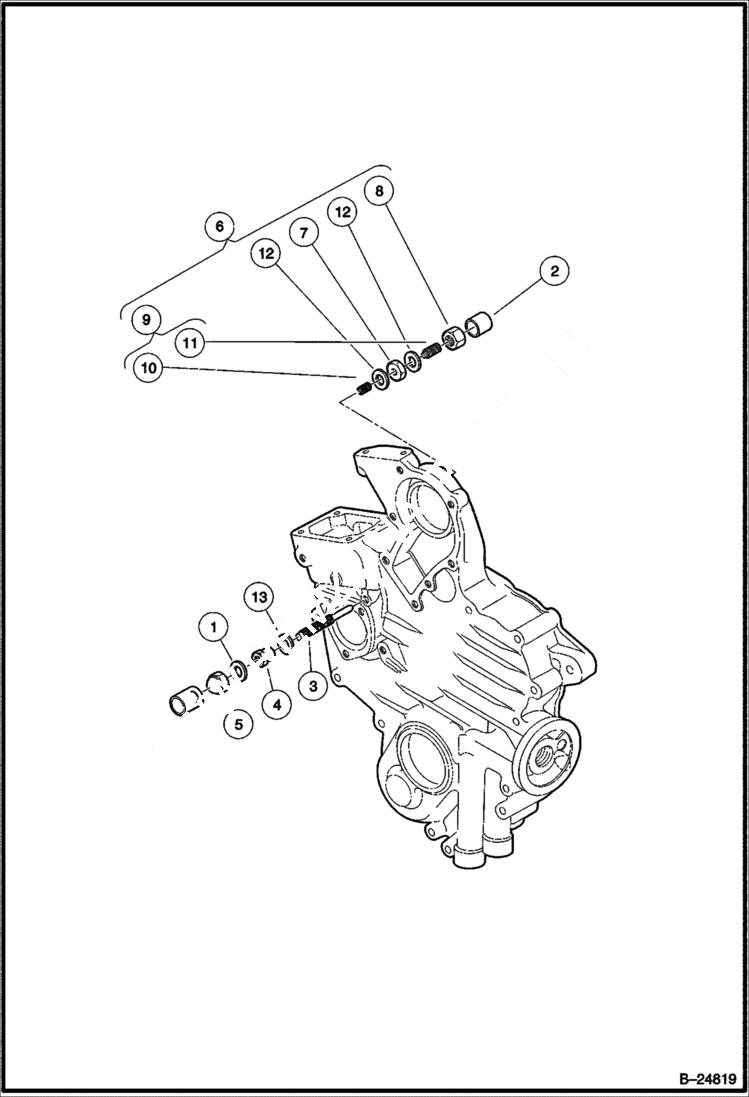

Запчасти Bobcat 2200 IDLE APPARATUS Diesel 2353 11568 & Below POWER UNIT

1

102635301CC

GAKSET

2

102635701CC

CAP

3

102636901CC

BOLT ADJ

4

102637001CC

NUT

5

102637101CC

NUT special

6

102728601CC

IDLE SCREW ASSY W/Ref. 7-12

7

102635501CC

NUT

8

102635801CC

NUT

9

6670425

SCREW W/Ref. 10 & 11 - Was 102635901CC - A

10

STUD NLA - Order Ref. 9 - Was 102728701CC

11

SPRING NLA - Order Ref. 9

12

102728801CC

GASKET

13

102728901CC

GASKET
