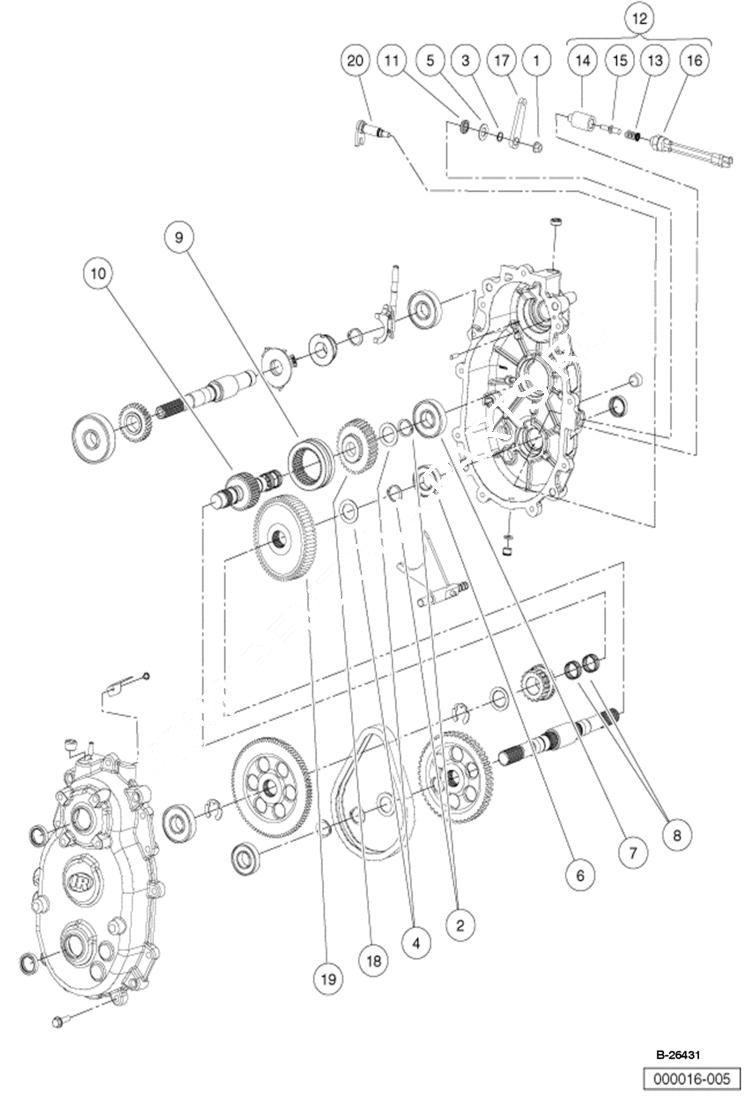

Запчасти Bobcat 2200 TRANSMISSION GASOLINE VEHICLES (Early Design) DRIVE TRAIN

1

102696001CC

NUT LOCK

2

102696201CC

RING RETAINING EXT

3

102696401CC

RING RETAINING EXT

4

102696501CC

WASHER

5

102696601CC

WASHER

6

102696801CC

BEARING

7

102696901CC

BEARING

8

102697101CC

BEARING

9

102697501CC

DOG ENGAGEMENT

10

102698701CC

SHAFT INTERMEDIATE

11

102699601CC

SEAL LIP

12

102765101CC

KIT NEUTRAL SWITCH REPAIR W/Ref. 13-16

13

SPRING NLA - Order Ref. 12

14

GUIDE NLA - Order Ref. 12

15

DETENT BULLET NLA - Order Ref. 12

16

INDICATOR SWITCH NLA - Order Ref. 12

17

103239501CC

BELLCRANK

18

103239601CC

GEAR 35 tooth spur

19

GEAR N/A, 65 tooth spur

20

SHIFT SHAFT N/A
