(8-16) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700712122 HYD. CYL. ASSEMBLY COMPLETE, 2" BORE X 8" STROKE

Запчасти Case IH 8435 (8-16) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700712122 HYD. CYL. ASSEMBLY COMPLETE, 2" BORE X 8" STROKE (07) - HYDRAULICS

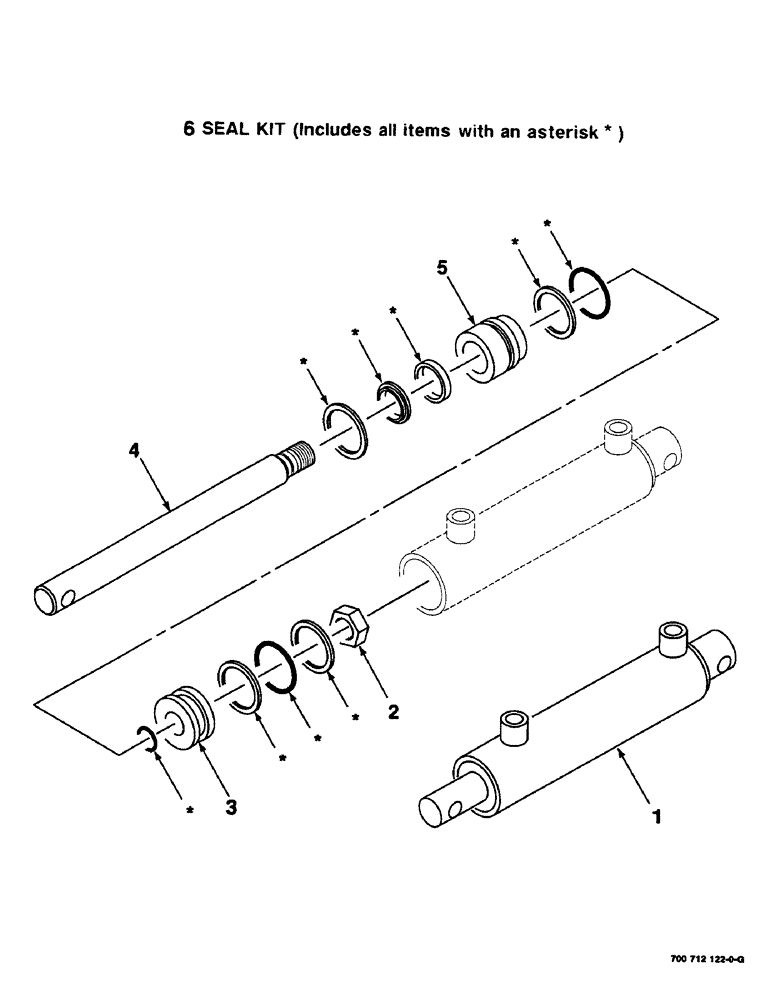

Схема запчастей Case IH 8435 - (8-16) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700712122 HYD. CYL. ASSEMBLY COMPLETE, 2" BORE X 8" STROKE (07) - HYDRAULICS
4
6
3
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712122

CYLINDER

HYDRAULIC CYLINDER COMPLETE, 2 inch bore x 8 inch stroke

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700709465

ROD

1шт.

5

700711112

GUIDE

- rod

1шт.

6

700711114

SEAL KIT

SEAL AND O-RING REPAIR KIT Includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
