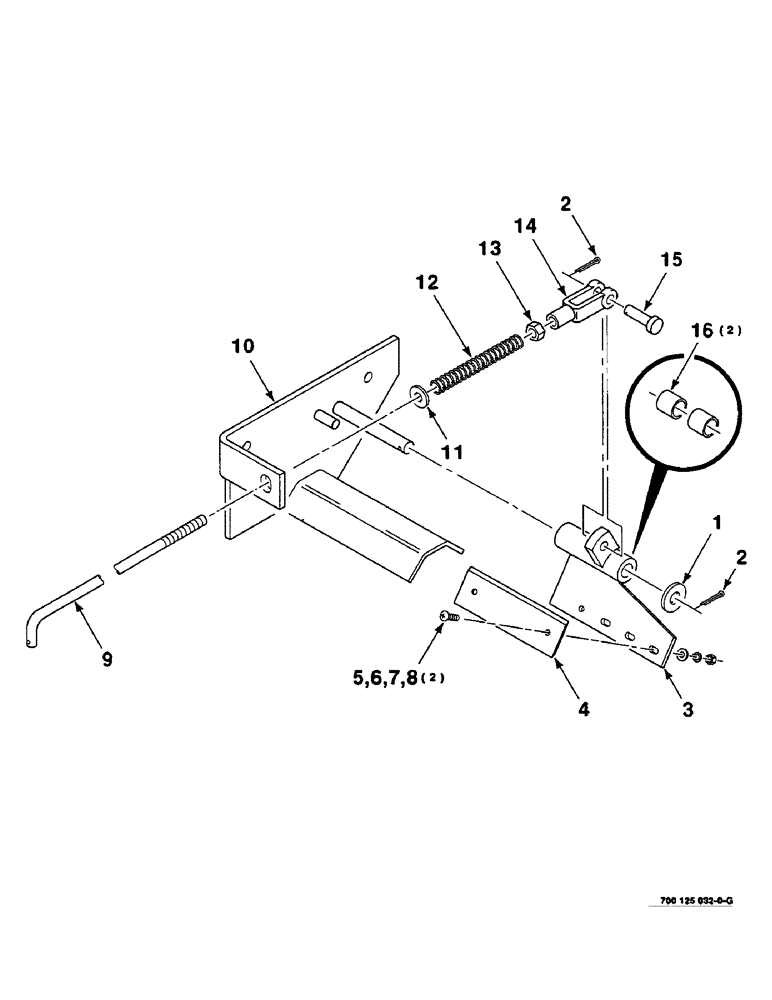

Запчасти Case IH 8455 (6-08) - TWINE CUTOFF ASSEMBLY (14) - BALE CHAMBER

1

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

2

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

3

700128281

MOUNTING PARTS

MOUNTING WA - knife

1шт.

4

700710761

KNIFE

- twine

1шт.

5

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 x 1/2 CRPHMS GR2

2шт.

6

195-513

WASHER,#10

PLAIN WASHER #10

2шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

225-14110

NUT,#10-24

2шт.

9

700122974

STEM

ROD

1шт.

10

700127005

SUPPORT

WA - cutoff

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

12

700707199

SPRING

- compression

1шт.

13

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

14

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

1шт.

15

063586

CLEVIS PIN

3/8 x 1-1/8 CLEVIS PIN

1шт.

16

740084

BRONZE BUSHING

BUSHING - bronze

2шт.
