(6-14) - ROLLER ASSEMBLY (FLAP)

Запчасти Case IH 8455 (6-14) - ROLLER ASSEMBLY (FLAP) (14) - BALE CHAMBER

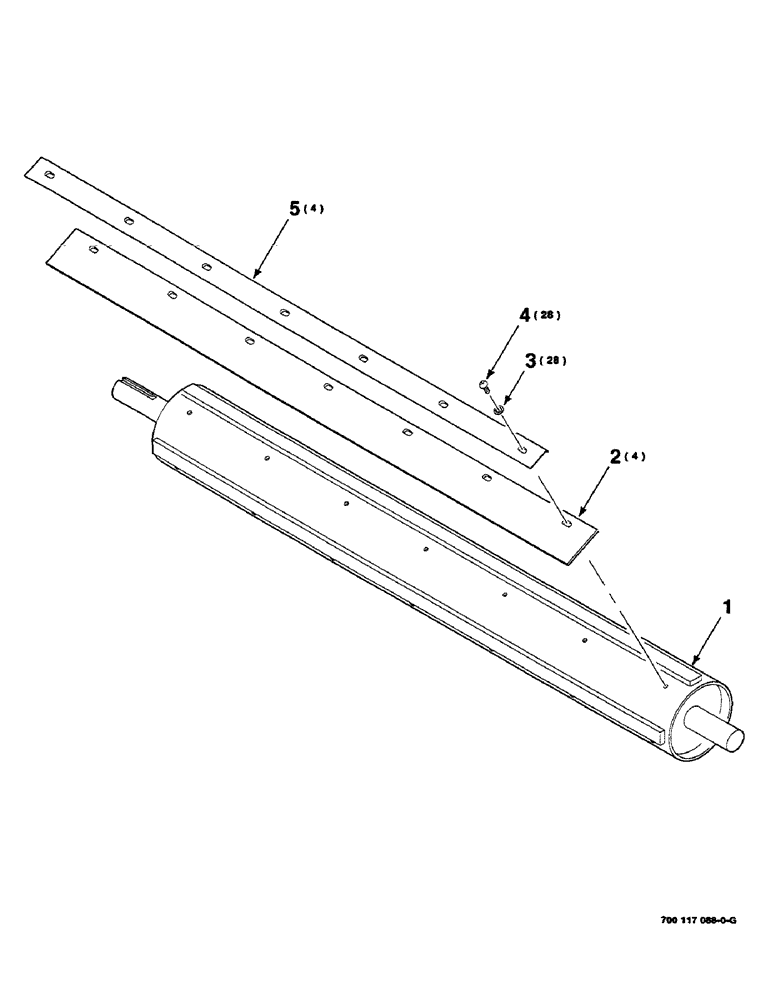

Схема запчастей Case IH 8455 - (6-14) - ROLLER ASSEMBLY (FLAP) (14) - BALE CHAMBER
5
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700107940

ROLLER

WA

1шт.

2

700711998

PAD, RUBBER

FLAP - rubber

4шт.

3

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

28шт.

4

700709140

SELF-TAP SCREW,Pan HD, 5/16" - 18 x 3/4"

5/16-18 x 3/4 CRTHTCTS

28шт.

5

700117107

BAND

STRAP

4шт.
