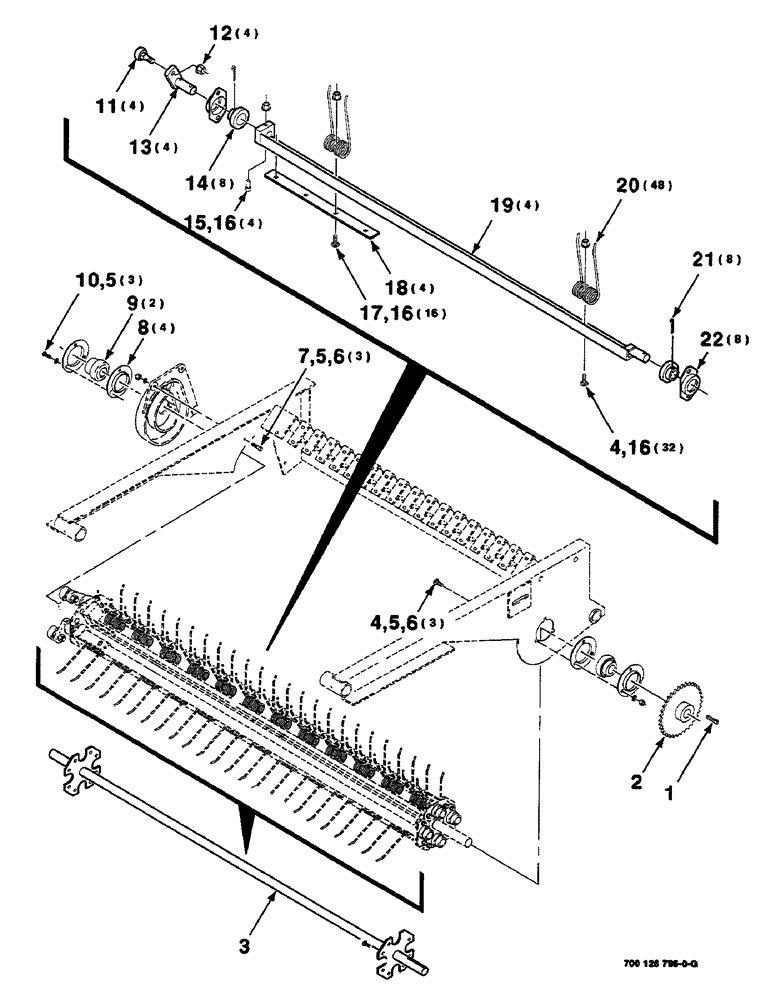

Запчасти Case IH 8460 (3-06) - PICKUP ROTOR ASSEMBLY, KEYED SHAFT, SERIAL NUMBER CFH0057723 AND LATER Pickup

1

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 GIB KEY

1шт.

2

700109639

SPROCKET ASSY.

SPROCKET 50B35 TOOTH

1шт.

3

700126798

ROTOR

WA

1шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

35шт.

5

492-11038

LOCK WASHER,3/8"

9шт.

6

425-106

NUT,3/8"-16, Cl 5

6шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

8

617863R1

FLANGED BEARING

- bearing

4шт.

9

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

11

700705612

CAM FOLLOWER

BEARING - cam, follower

4шт.

12

702700045

LOCK NUT

1/2-20 SPIRALOCK

4шт.

13

700108618

ARM

CRANK WA

4шт.

14

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

8шт.

15

61-33836

HEX SOC SCREW,3/8 - 16 x 2-1/4"

3/8-16 X 2-1/4 HSHCS SPL

4шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

52шт.

17

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

16шт.

18

700125083

STRAP

4шт.

19

700119965

ANGLE BAR

ANGLE WA

4шт.

20

700709760

TINE

TINE - double

48шт.

21

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

22

700108622

FLANGED BEARING

FLANGE - bearing

8шт.
