(8-06) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700709594 HYDRAULIC CYLINDER COMPLETE, 2" BORE BY 16" STROKE

Запчасти Case IH 8480 (8-06) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700709594 HYDRAULIC CYLINDER COMPLETE, 2" BORE BY 16" STROKE (07) - HYDRAULICS

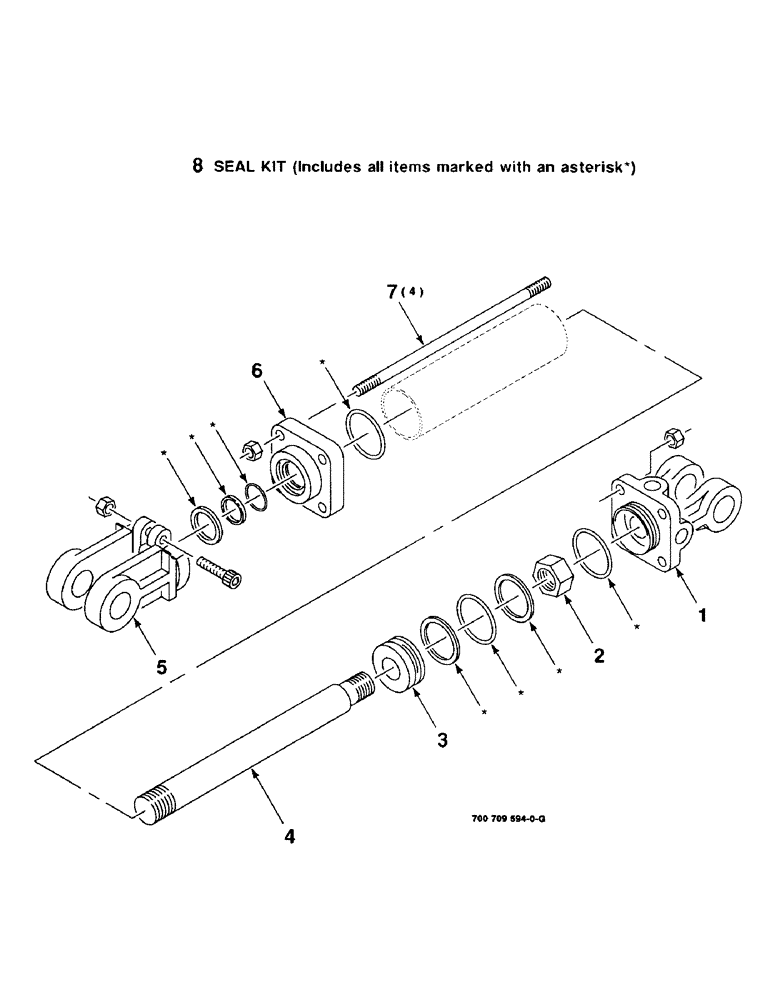

Схема запчастей Case IH 8480 - (8-06) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700709594 HYDRAULIC CYLINDER COMPLETE, 2" BORE BY 16" STROKE (07) - HYDRAULICS
2
1
8
4
3
6
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700709594

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2" bore x 16" stroke)

1шт.

1

737734

CLEVIS

BASE

1шт.

2

131-909

LOCK NUT,3/4"-16

NUT

1шт.

3

B17272

PISTON

1шт.

4

700709953

ROD

1шт.

5

700709935

CLEVIS

1шт.

6

737684

HEAD

1шт.

7

700709952

ROD

TIE - rod

4шт.

8

700712175

SEAL KIT

KIT

1шт.

Выбрано товаров: 9
