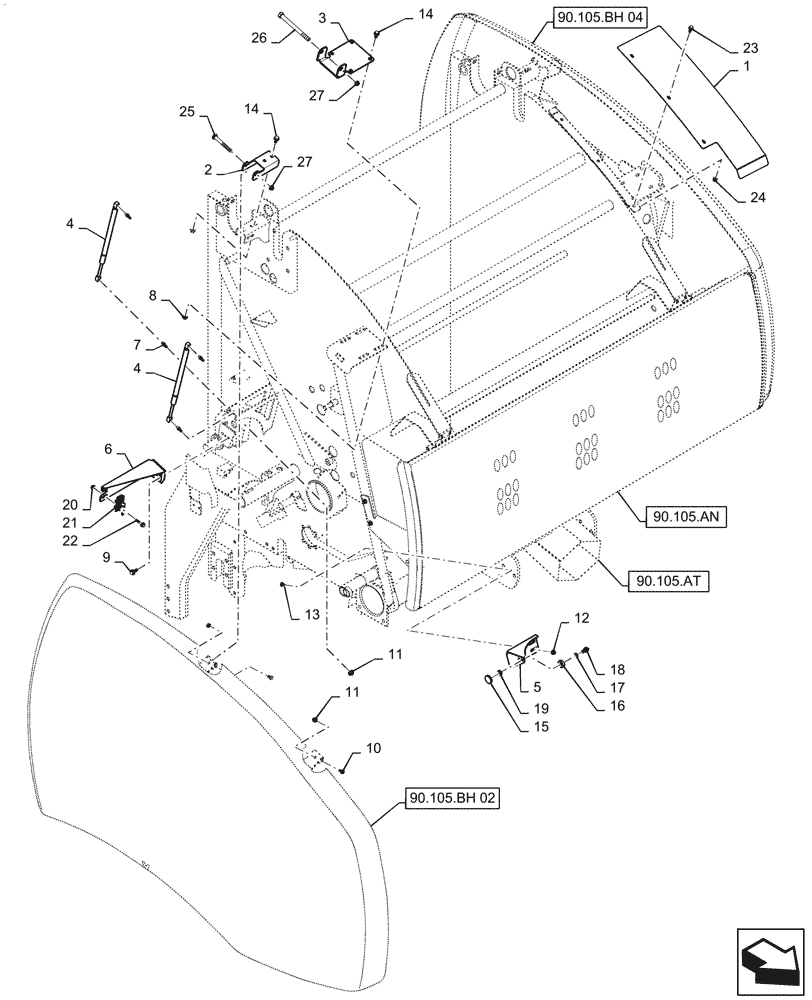

Запчасти Case IH RB455 (90.105.BH[01]) - RH, DOOR MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47487513

SHIELD

1шт.

2

48061377

HINGE

1шт.

3

48058534

BRACKET

1шт.

4

47387253

GAS STRUT

2шт.

5

47561233

BRACKET

1шт.

6

47421866

BRACKET

1шт.

7

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

4шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

9

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

10

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

11

86619801

FLANGE NUT,M8 x 1.25, Cl 8

8шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

12шт.

15

84517258

MAGNET

1шт.

16

13605715

SPACER,9mm ID x 18mm OD x 5mm L

1шт.

17

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

18

10445821

SCREW,Hex, M4 x 8mm, Cl 8.8, Full Thd

1шт.

19

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

20

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

21

87688487

LATCH ASSY.

1шт.

22

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

23

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

24

86610200

THREADED INSERT,M8 x 1.25

3шт.

25

87966

BOLT,Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

26

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

27

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.
