(11.10[2]) - WHEELS & TIRES, WIDE PICKUP , 15 X 6.00 - 6, USED ON EUROPE ROTOR BALERS, P.I.N. Y9N043085 & AFTER

Запчасти Case IH RB464 (11.10[2]) - WHEELS & TIRES, WIDE PICKUP , 15 X 6.00 - 6, USED ON EUROPE ROTOR BALERS, P.I.N. Y9N043085 & AFTER (11) - WHEELS

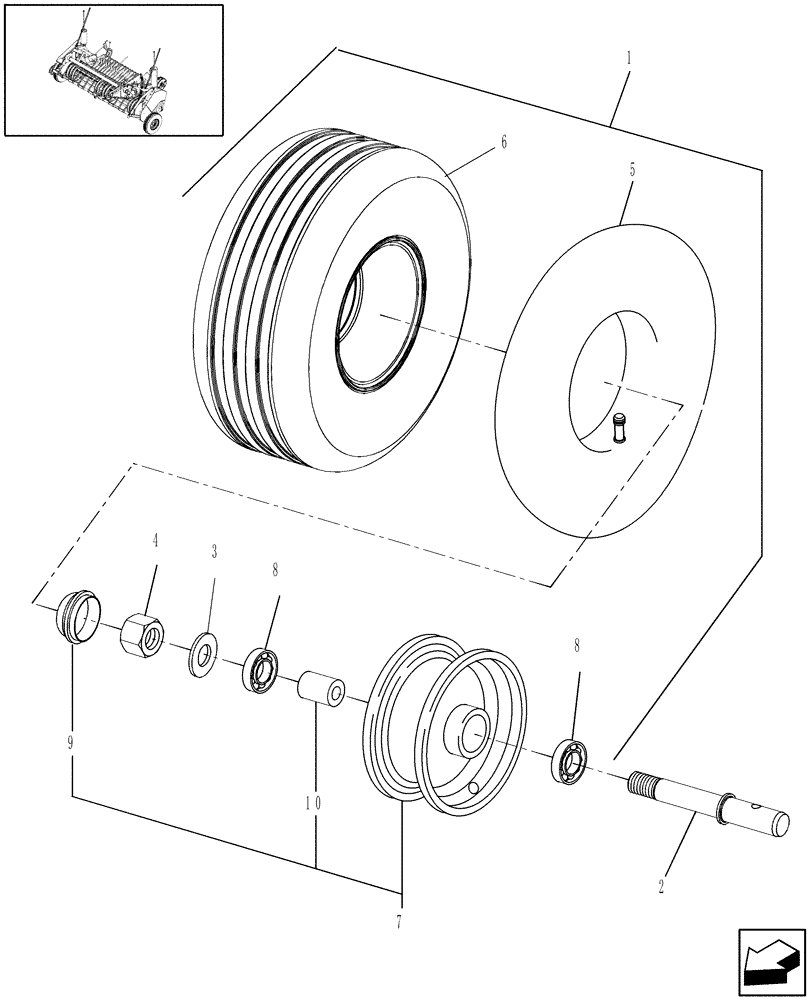

Схема запчастей Case IH RB464 - (11.10[2]) - WHEELS & TIRES, WIDE PICKUP , 15 X 6.00 - 6, USED ON EUROPE ROTOR BALERS, P.I.N. Y9N043085 & AFTER (11) - WHEELS
10
8
1
7
4
9
5
8
2
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84607730

WHEEL ASSY,370mm OD x 160mm W

Pickup, 15 x 6.00-6

1шт.

2

84132501

PIN

1шт.

3

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

1шт.

4

9837788

NUT,M24 x 3, Cl 8.8

1шт.

5

84429037

TIRE TUBE

Inner

1шт.

6

84429038

TYRE/TIRE

15 x 6.00-6

1шт.

7

84429039

RIM

Includes: Ref. 9 - 11

1шт.

8

NLS

NO LONGER SERVICED

2шт.

9

84036651

CAP

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer

1шт.

Выбрано товаров: 10
