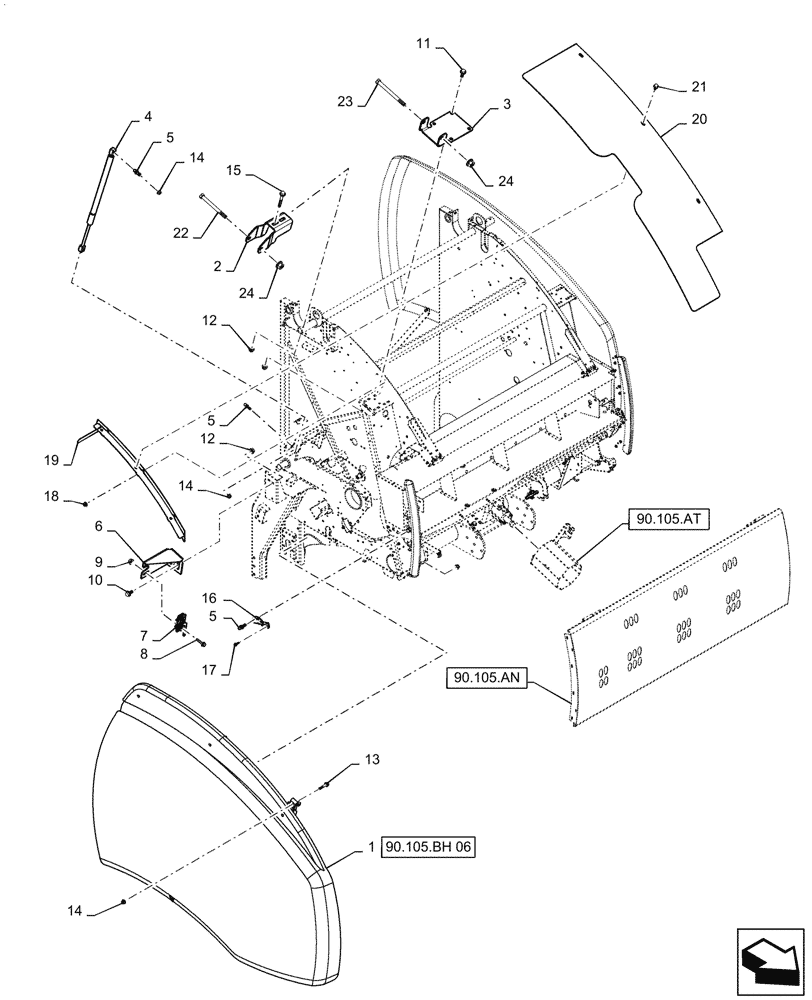

Запчасти Case IH RB465 (90.105.BH[05]) - RH, DOOR MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

0C

ORDER COMPONENTS

Door, RH

1шт.

2

48058532

HINGE

1шт.

3

48058534

BRACKET

1шт.

4

47387253

GAS STRUT

2шт.

5

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

2шт.

6

47561233

BRACKET

1шт.

7

87688487

LATCH ASSY.

1шт.

8

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

10

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

9шт.

12

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

3шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

16

128104

BUMPER

1шт.

17

47419756

BRACKET

1шт.

18

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

19

84517258

MAGNET

1шт.

20

47482855

SHIELD

RH

1шт.

21

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

22

87896

BLOCK

1шт.

23

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

24

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.
