(033) - SHIELDING, TAILGATE

Запчасти Case IH RBX451 (033) - SHIELDING, TAILGATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

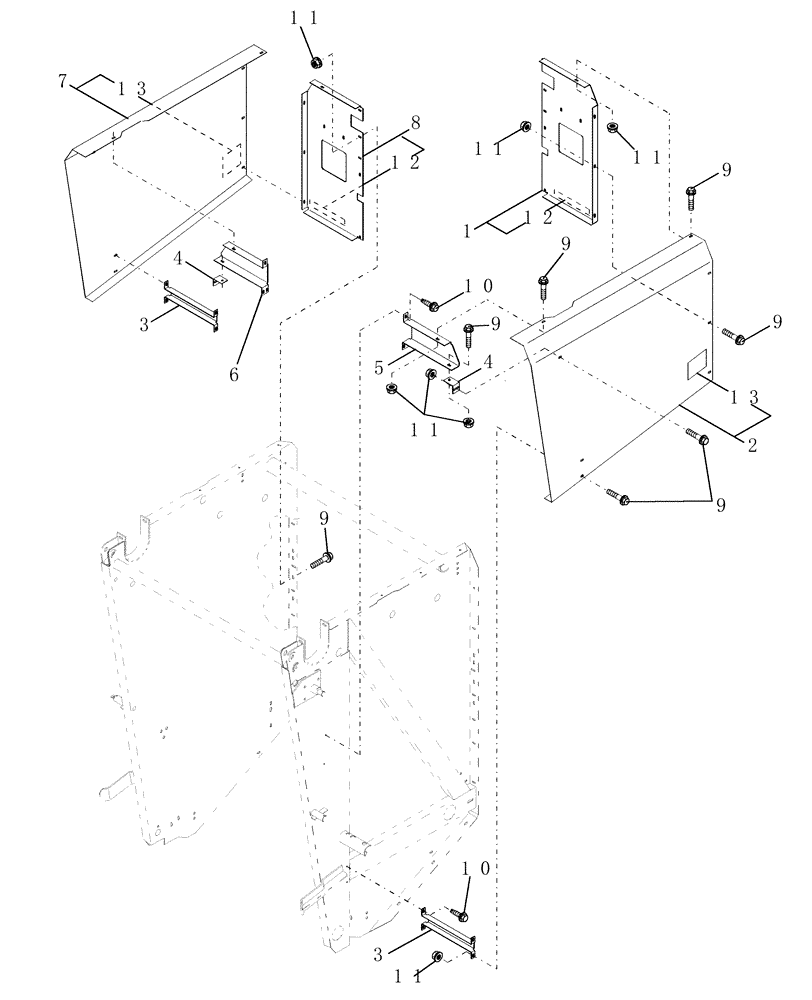

Схема запчастей Case IH RBX451 - (033) - SHIELDING, TAILGATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
9
9
7
4
5
13
11
12
10
9
3
11
11
4
11
1
13
10
9
6
2
9
8
11
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86627279

SHIELD

Rear, LH, Includes: Ref. 12

1шт.

2

86627283

SHIELD

LH, Includes Ref.13

1шт.

3

86620252

SUPPORT ASSY.

2шт.

4

86629916

PLATE

2шт.

5

86620250

SUPPORT ASSY.

LH

1шт.

6

86620251

SUPPORT ASSY.

RH

1шт.

7

86627284

SHIELD

RH, Includes Ref.13

1шт.

8

86627280

SHIELD

Rear, RH, Includes: Ref. 12

1шт.

9

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

20шт.

10

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

6шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

20шт.

12

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

13

86631519

DANGER DECAL

English

2шт.

13

86632802

DECAL

DANGER, French

2шт.
